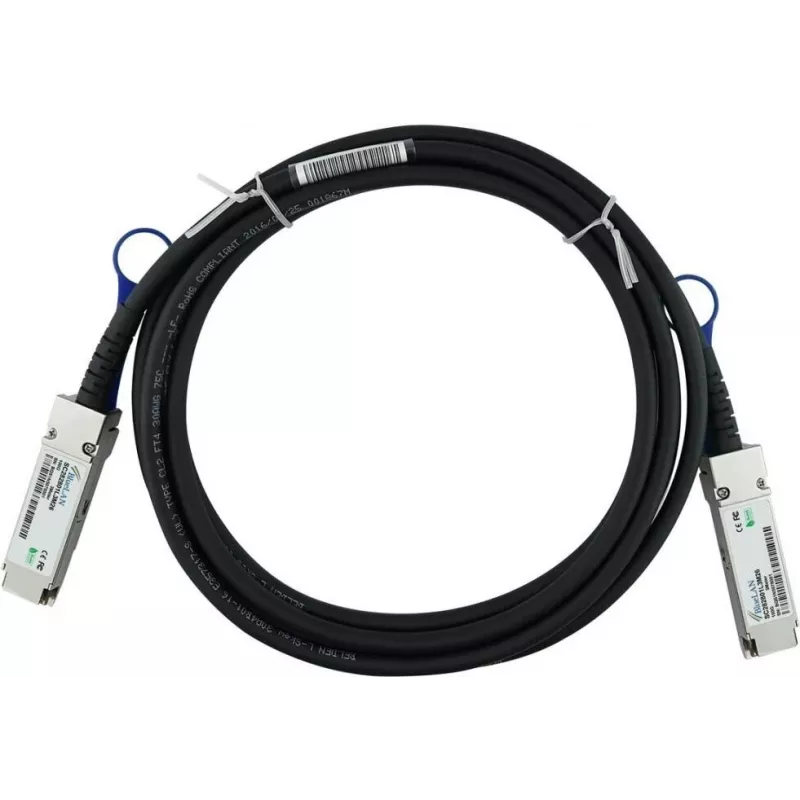

BLUELAN compatibele NVIDIA MCP1600-E00A-NV direct attach-kabel, 100Gb/s, Infiniband EDR, 30AWG, 0,5 meter

The BLUELAN MCP1600-E00A-BL is a high-performance passive Direct Attach Copper (DAC) cable designed for InfiniBand EDR networks. It provides a cost-effective, low-latency interconnect solution for data centers and high-performance computing (HPC) environments. With a data rate of 100 Gbps and a length of 0.5 meters, this cable is ideal for short-distance, high-speed connections between switches, servers, and storage systems.

Advantages

This DAC cable offers reliable, low-power connectivity without the need for optical transceivers. Its passive design ensures zero power consumption, while the 30 AWG copper construction guarantees signal integrity. The cable is hot-swappable and compliant with RoHS, CE, and FCC standards, making it a safe and environmentally friendly choice.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• InfiniBand EDR (100 Gbps) environments

Key specifications

• Data Rate: 100 Gbps
• Cable Type: Direct Attach Copper (DAC), Passive
• Connector Type: QSFP28 to QSFP28
• Protocol: InfiniBand EDR
• Length: 0.5 meters
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 0.5W
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, use this cable with compatible NVIDIA Mellanox InfiniBand EDR switches and adapters. Ensure proper handling to avoid damage to the QSFP28 connectors. This cable is a direct replacement for the NVIDIA MCP1600-E00A-NV.
