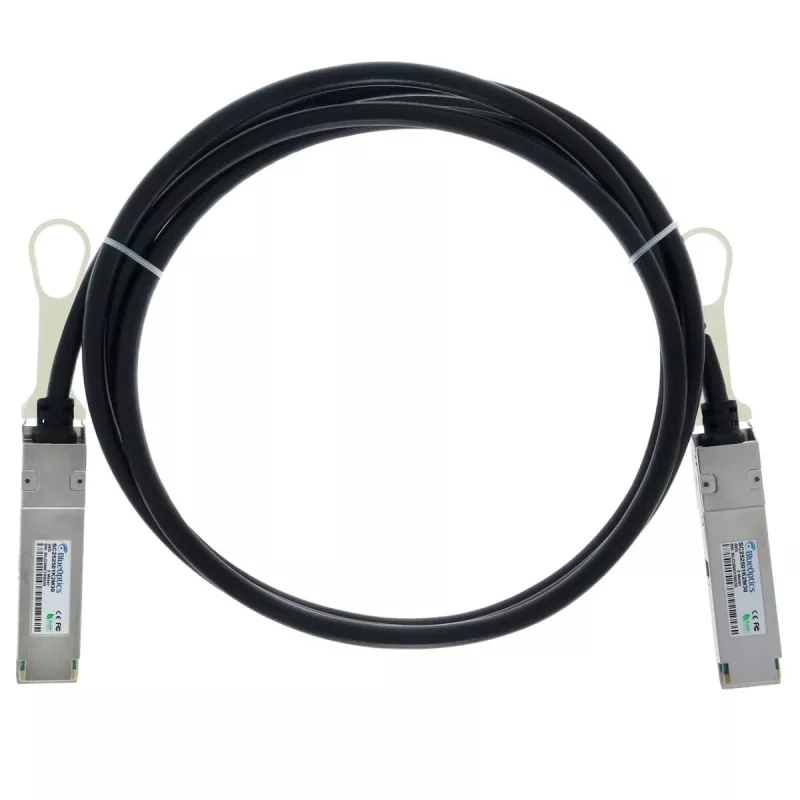

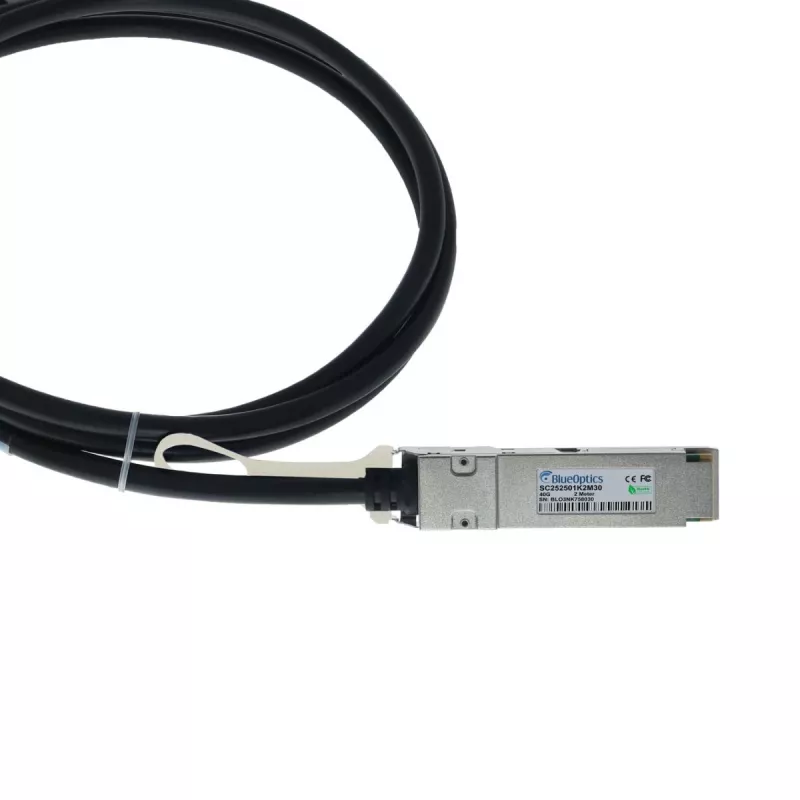

BlueLAN QSFP-40G-2M-CM-BL compatibele H3C QSFP+ direct attach-kabel, 40GBASE-CR4, 30AWG, 2 meter

The BlueLAN QSFP-40G-2M-CM-BL is a high-performance, passive copper twinax direct attach cable (DAC) designed for 40 Gigabit Ethernet and InfiniBand QDR applications. It is fully compatible with H3C switches and routers, as well as any MSA-compliant QSFP+ port. This 2-meter cable provides a cost-effective, low-power solution for short-range interconnects in data centers and high-performance computing environments.

Advantages

This direct attach cable eliminates the need for separate transceivers and fiber optic cabling, reducing cost and complexity. With a power consumption of less than 0.5W, it is highly energy-efficient. The 30 AWG construction ensures flexibility while maintaining signal integrity over the 2-meter length. Hot-swappable design allows for easy installation and maintenance without disrupting network operations.

Suitable for

• Data center top-of-rack to server or switch interconnects
• High-performance computing (HPC) clusters
• 40GBASE-CR4 Ethernet and InfiniBand QDR networks
• Short-distance, high-bandwidth links within racks

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gbps
• Cable Length: 2 Meter (6.56 ft)
• Wire Gauge: 30 AWG
• Protocols Supported: 40GBASE-CR4 Ethernet, InfiniBand QDR
• Compatibility: H3C (Compatible), MSA Compliant QSFP+ Ports
• Impedance: 100 Ohm
• Power Consumption: < 0.5W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Jacket Material: PVC
• Compliance: SFF-8436 (QSFP+ MSA)

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP+ ports. This cable is ideal for short-reach interconnects within a rack or between adjacent racks. For longer distances, consider fiber optic transceivers.
