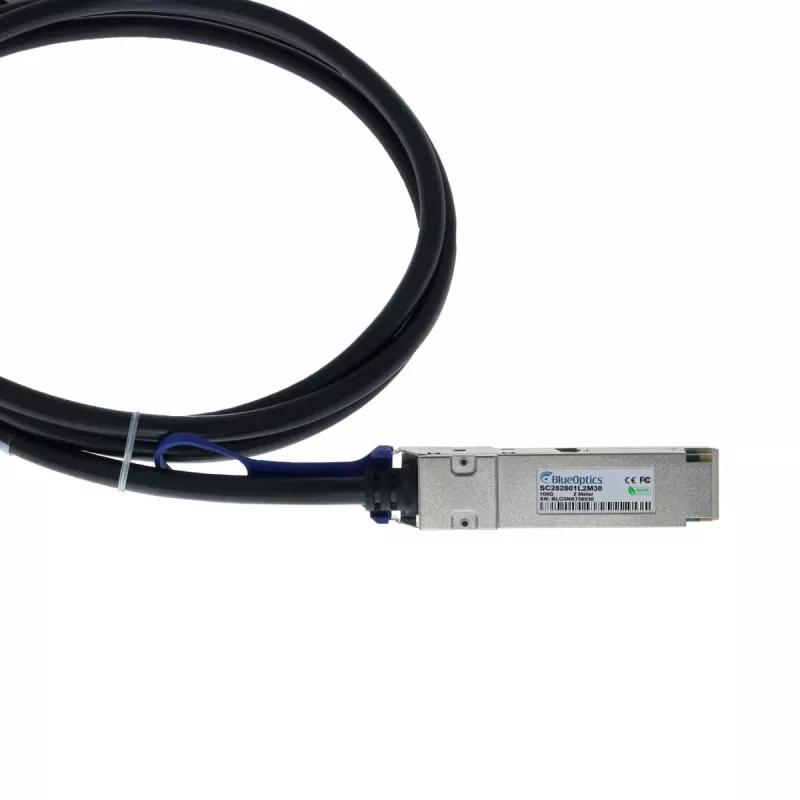

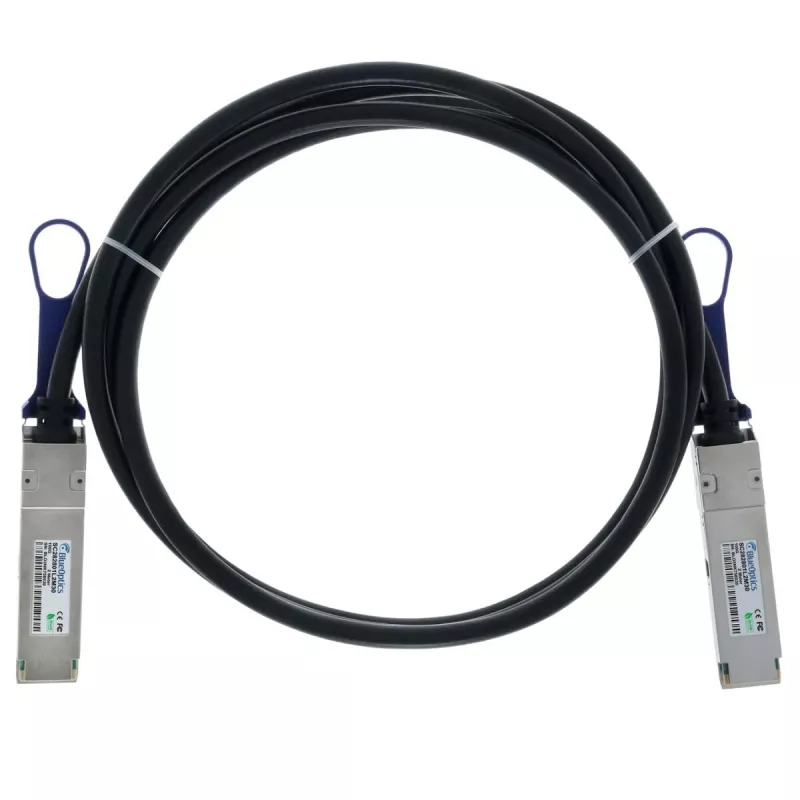

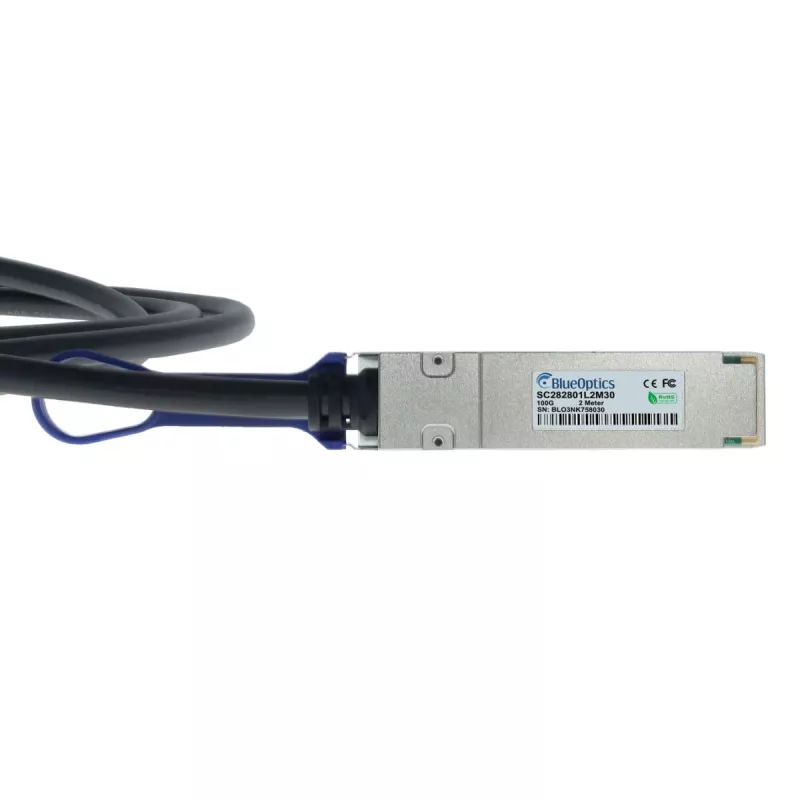

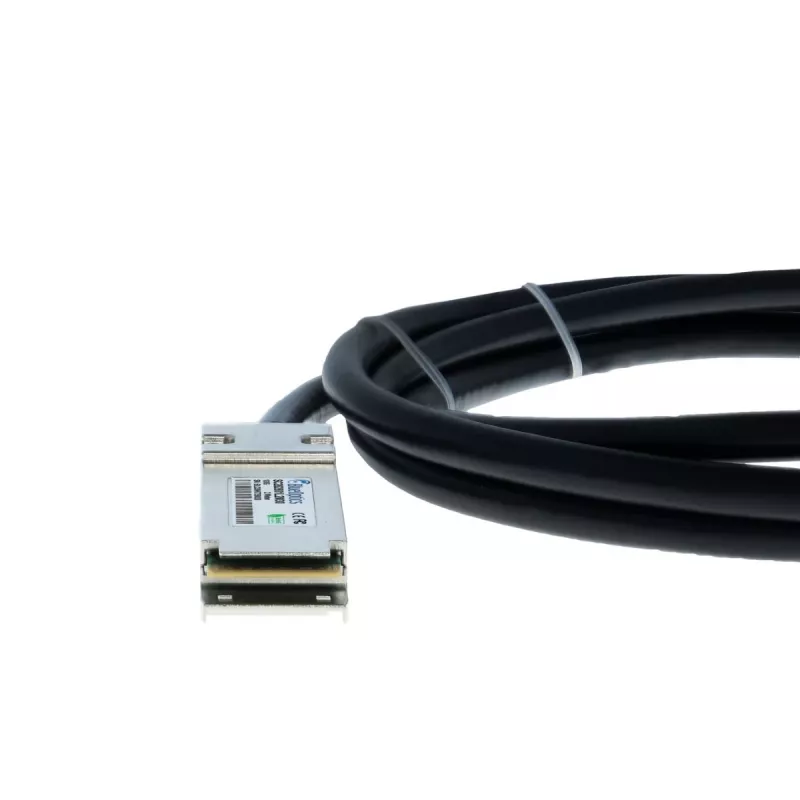

BlueOptics 100G QSFP28 passieve Direct Attach koperkabel 5m zwart

The BlueOptics 100G-QSFP-QSFP-P-0501-RU is a high-performance passive Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet connections. It features QSFP28 connectors on both ends, male to male, and is ideal for short-reach interconnects in data centers and high-performance computing environments. With a length of 5 meters and a black PVC jacket, this cable ensures reliable, low-latency data transmission at 100 Gbit/s.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for connecting QSFP28 ports within racks or adjacent racks. It consumes less than 0.5W, supports hot-swappable installation, and complies with IEEE 802.3bj and SFF-8665 standards. The 26 AWG copper construction guarantees signal integrity and durability.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking equipment with QSFP28 ports

Key specifications

• Cable Type: Direct Attach Copper (DAC) Passive
• Connector Type: QSFP28 to QSFP28
• Connector Gender: Male/Male
• Cable Length: 5 meters
• Data Transfer Rate: 100 Gbit/s
• Color: Black
• Cable Gauge: 26 AWG
• Cable Jacket Material: PVC
• Compliance: IEEE 802.3bj, SFF-8665
• Hot-Swappable: Yes
• Power Consumption: < 0.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Voltage Supply: 3.3V
• Impedance: 100 Ohm

Recommendations

For optimal performance, use this cable with compatible QSFP28 ports on switches, routers, and NICs. Ensure proper handling to avoid damage to connectors. This passive DAC cable is ideal for short-distance links up to 5 meters.
