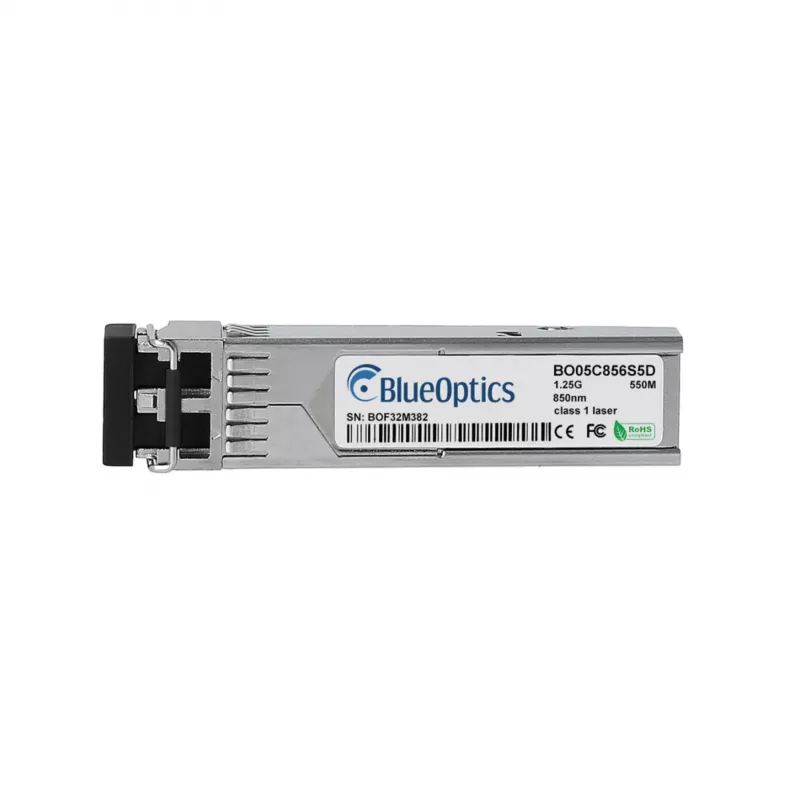

BlueOptics BO05C856S5D compatibele SFP-transceiver, 1000BASE-SX, LC duplex, multimode, 850nm, 550m

The BlueOptics BO05C856S5D is a high-performance SFP transceiver designed for Gigabit Ethernet applications. It is fully compatible with Finisar FTLF8519P2BCL and offers reliable connectivity for multimode fiber networks. With a data rate of 1.25 Gbps and a wavelength of 850 nm, this transceiver supports distances up to 550 m over OM2/OM3 multimode fiber. It features LC duplex connectors, hot-pluggable design, and digital diagnostics monitoring (DDM) for real-time performance tracking. Ideal for enterprise and data center environments, this transceiver ensures seamless integration and cost-effective network expansion.

Advantages

Cost-effective alternative to OEM transceivers with full compatibility and performance. Supports DDM for proactive network management. Low power consumption (<1.0W) reduces energy costs. Hot-pluggable design simplifies installation and maintenance.

Suitable for

• Gigabit Ethernet (1000BASE-SX) networks
• Fiber Channel applications
• Data center interconnects
• Enterprise LAN backbone

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 850 nm
• Max Distance: 550 m (OM2/OM3)
• Connector: LC Duplex
• Fiber Type: Multimode (MMF)
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1.0W
• Compliance: IEEE 802.3z, SFP MSA

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber cables. Ensure compatibility with your switch or router by verifying SFP MSA compliance. This transceiver is a drop-in replacement for Finisar FTLF8519P2BCL and other MSA-compliant SFP slots.
