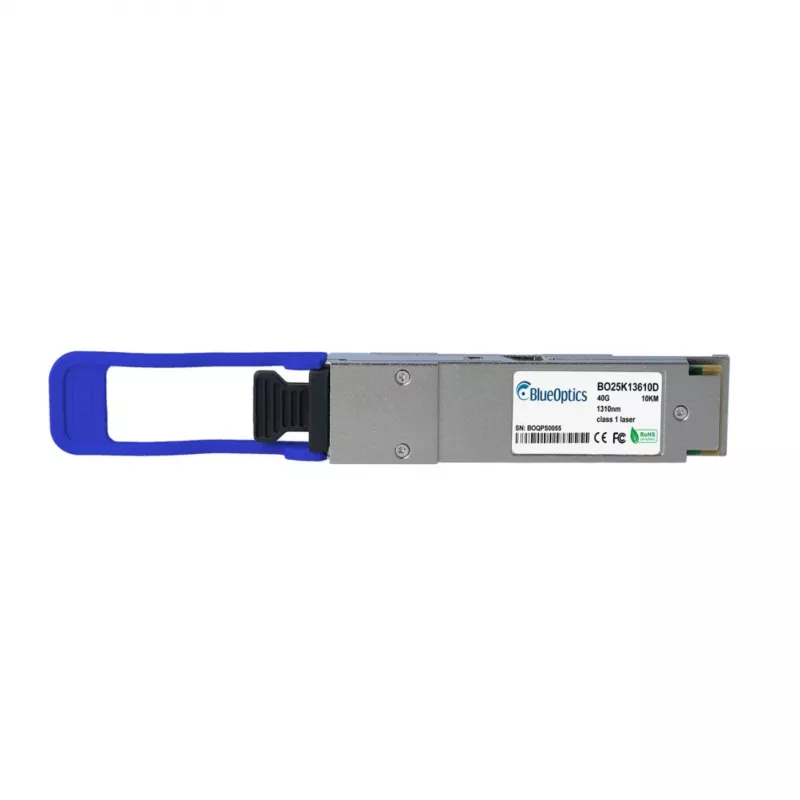

BlueOptics BO25K13610D Compatible Ruckus E40G-QSFP-LR4 QSFP+ 40GBASE-LR4 transceivermodule, LC Duplex, single-mode, 10 km

The BlueOptics BO25K13610D is a high-performance QSFP+ transceiver module designed for 40GBASE-LR4 Ethernet applications. It is fully compatible with Ruckus E40G-QSFP-LR4 equipment, providing reliable connectivity over single-mode fiber at distances up to 10 km. This hot-swappable module features LC duplex connector and supports digital diagnostics monitoring (DDM) for real-time performance tracking.

Advantages

Cost-effective alternative to OEM modules without compromising quality or performance. MSA compliant and rigorously tested to ensure seamless integration with Ruckus switches and routers. Low power consumption (<3.5W) helps reduce operational costs in data centers and enterprise networks.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Campus network aggregation
• Metro network links

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps
• Standard: 40GBASE-LR4
• Max Reach: 10 km
• Fiber Type: Single-Mode (OS2)
• Connector: LC Duplex
• Wavelengths: 1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm (LAN WDM)
• Power Consumption: <3.5W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, pair this transceiver with single-mode fiber patch cables (OS2) and ensure clean connections. The module supports hot-plug insertion, making it easy to install or replace without powering down the system.
