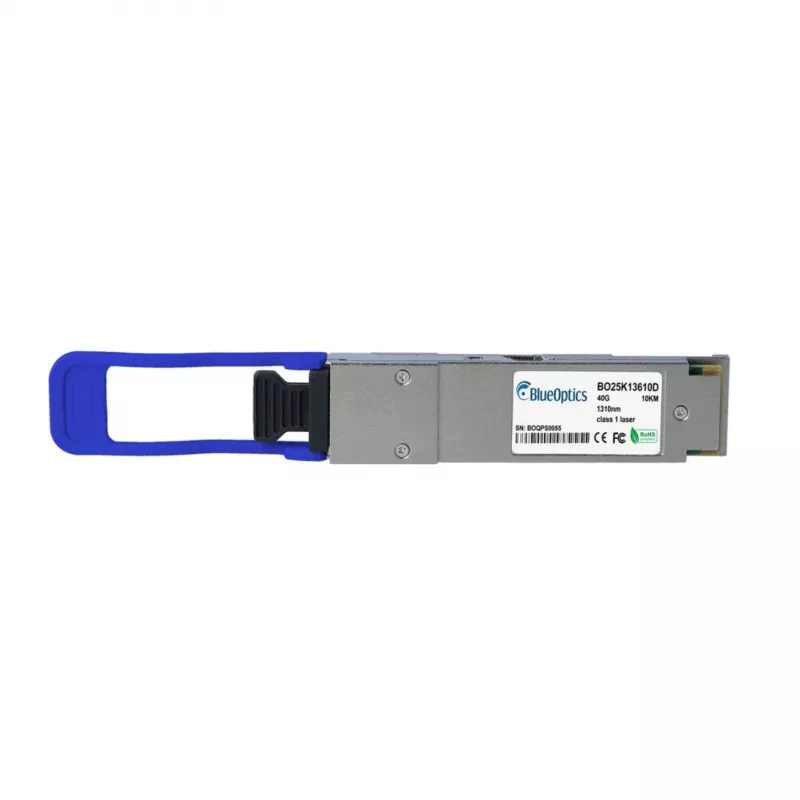

BlueOptics QSFP+ 40GBASE-LR4 transceivermodule voor Ruckus E40G-QSFP-LR4, 10 km, Singlemode LC, BO25K13610D

The BlueOptics BO25K13610D is a high-performance QSFP+ transceiver module designed for 40 Gigabit Ethernet applications. It is fully compatible with Ruckus E40G-QSFP-LR4 switches and other MSA-compliant devices, delivering reliable connectivity over single-mode fiber at distances up to 10 km. This hot-pluggable module features four LAN WDM lanes (1271nm, 1291nm, 1311nm, 1331nm) and supports digital diagnostic monitoring (DDM/DOM) for real-time performance tracking.

Advantages

Cost-effective alternative to OEM modules with full compatibility and high reliability. Low power consumption (<3.5W) and robust zinc alloy housing ensure long-term durability. Ideal for data center and enterprise network upgrades to 40GbE.

Suitable for

• Ruckus E40G-QSFP-LR4 switches
• 40GBASE-LR4 compliant network equipment
• Single-mode fiber backbone links up to 10 km
• Data centers, enterprise LANs, and service provider networks

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps (4x 10.3125 Gbps)
• Wavelength: 1271nm, 1291nm, 1311nm, 1331nm (LAN WDM)
• Max Reach: 10 km over Single-Mode Fiber (SMF)
• Connector: Duplex LC
• Power Consumption: <3.5 W
• Operating Temperature: 0°C to 70°C
• Standards: IEEE 802.3ba 40GBASE-LR4, QSFP+ MSA
• Certifications: CE, FCC, RoHS, TUV, UL

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. Compatible with Ruckus E40G-QSFP-LR4 and other MSA-compliant QSFP+ ports.
