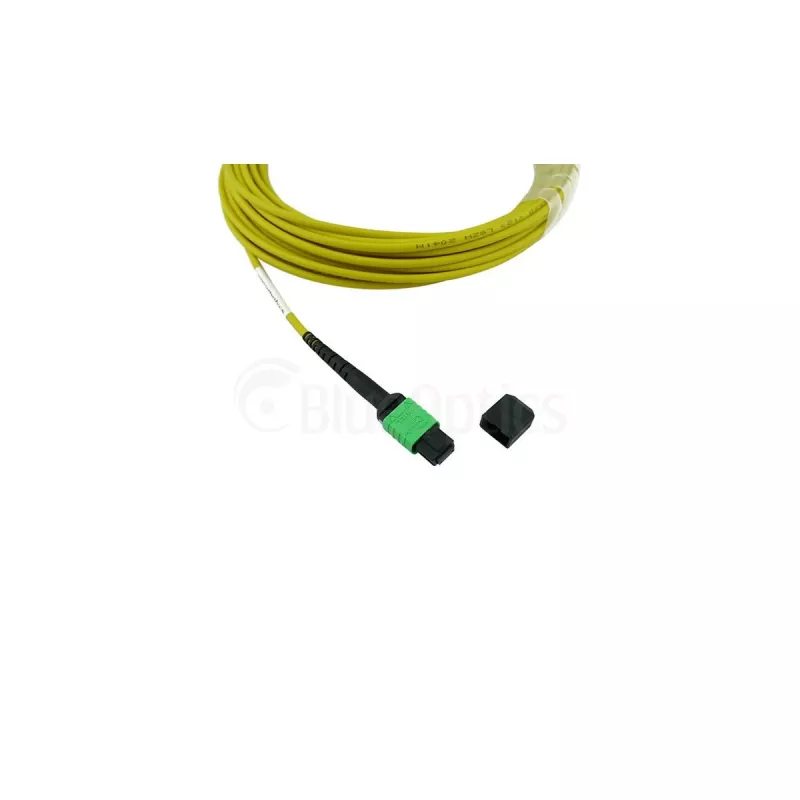

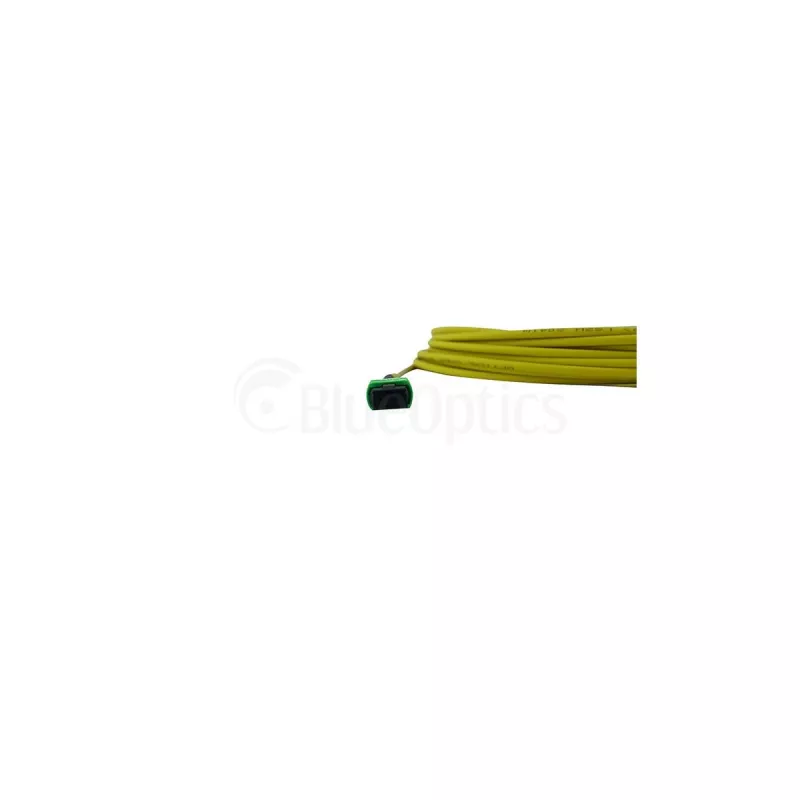

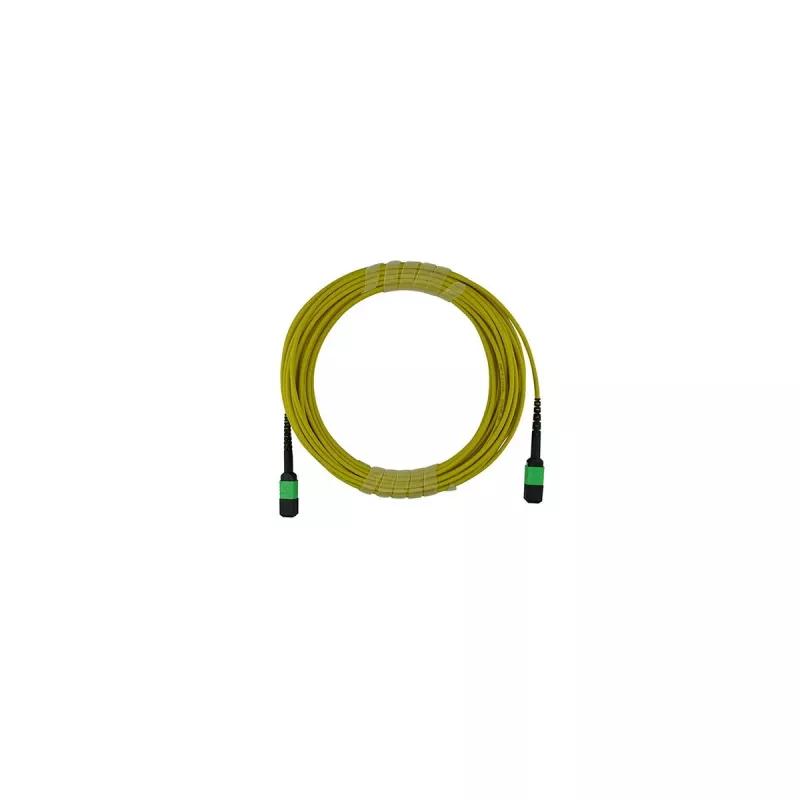

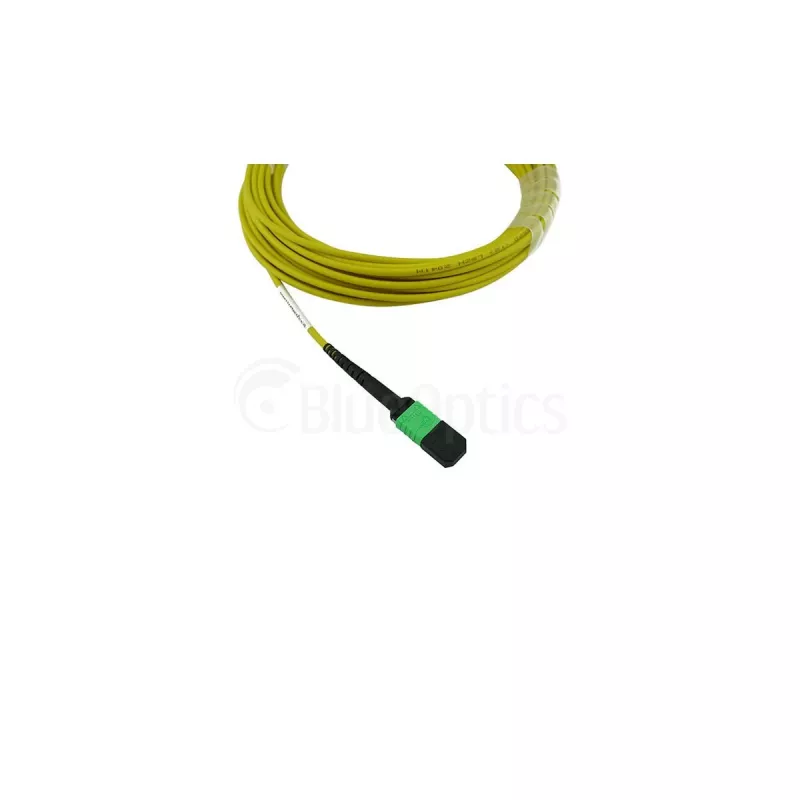

BlueOptics Cisco CB-M12-M12-SMF3M MPO naar MPO singlemode glasvezel patchkabel 3m (9/125µm) G.657.A1 LSZH geel

The BlueOptics Cisco CB-M12-M12-SMF3M is a high-performance MPO to MPO single-mode fiber optic patch cable designed for demanding data center, telecommunications, and high-density cabling environments. With 12 fibers, a 3-meter length, and APC polish, this cable ensures reliable, low-loss connections for 40G/100G/400G networks. Manufactured to ITU-T G.657.A1 bend-insensitive standards, it offers superior flexibility and durability. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces. Fully compatible with Cisco Systems equipment.

Advantages

Bend-insensitive G.657.A1 fiber allows tighter cable routing without signal degradation. APC polish minimizes back reflection for high-speed optical networks. LSZH jacket reduces toxic and corrosive gas emissions in case of fire. Pre-terminated MPO connectors save installation time and ensure consistent performance.

Suitable for

• Data center backbone cabling
• Telecommunications central offices
• High-density fiber patching
• 40G/100G/400G optical transceivers
• Cisco network infrastructure

Key specifications

• Connector Type: MPO (Male) to MPO (Male)
• Fiber Type: Single-Mode (9/125µm)
• Fiber Standard: ITU-T G.657.A1 (Bend-Insensitive)
• Number of Fibers: 12
• Connector Polish: APC (Angled Physical Contact)
• Cable Length: 3 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Yellow
• Compatibility: Cisco Systems
• Application: Data Center, Telecommunications, High-Density Cabling

Recommendations

For optimal performance, ensure MPO connectors are clean before mating. Use with compatible MPO adapters and transceivers. Store in a clean, dry environment.
