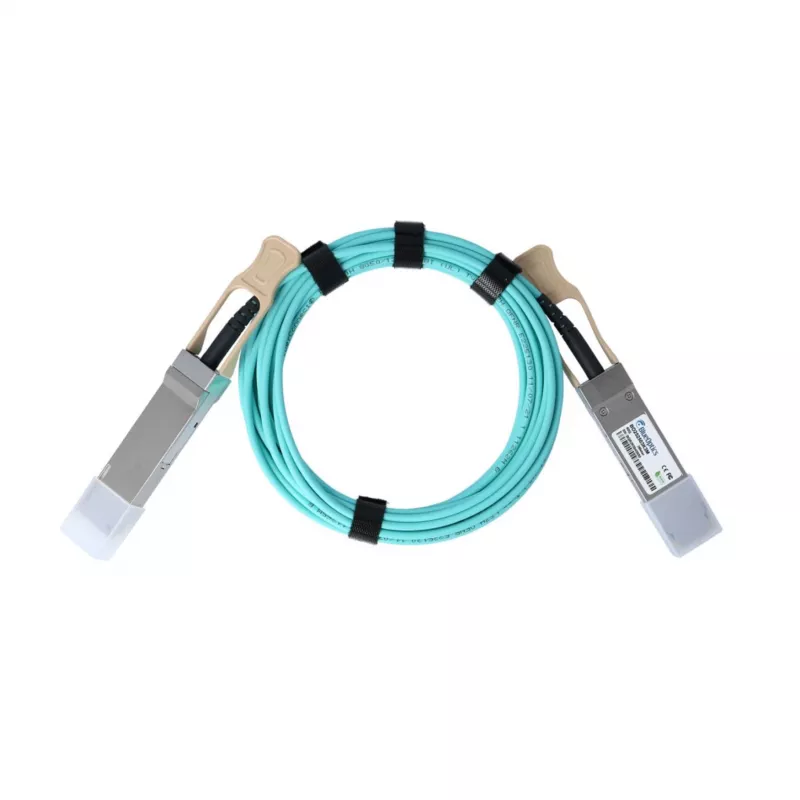

BlueOptics compatibele Finisar FCBG410QB1C03 QSFP+ Active Optical Cable (AOC), 40GBASE-SR4, 3m, LSZH

The BlueOptics Compatible Finisar FCBG410QB1C03 QSFP+ Active Optical Cable (AOC) is a high-performance, cost-effective solution for 40 Gigabit Ethernet connectivity. Designed to be fully compatible with Finisar FCBG410QB1C03, this AOC integrates four transmit and four receive channels over multi-mode fiber, delivering reliable 40 Gbps data transmission over distances up to 3 meters. Ideal for data center interconnects and high-performance computing environments, it features low power consumption (<1.0W per end) and a hot-pluggable QSFP+ form factor.

Advantages

This AOC offers seamless integration into existing networks, eliminating the need for separate transceivers and fiber cables. Its low power consumption reduces operational costs, while the LSZH jacket ensures safety in confined spaces. The cable is MSA compliant and supports 40GBASE-SR4 Ethernet standard, making it a versatile choice for modern data centers.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking upgrades
• Telecommunications infrastructure

Key specifications

• Product Type: Active Optical Cable (AOC)
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-SR4
• Connector Type: QSFP+ to QSFP+
• Cable Length: 3 meters (9.84 ft)
• Fiber Type: Multi-mode Fiber (MMF)
• Wavelength: 850 nm (VCSEL)
• Power Consumption: <1.0 W per end (typical)
• Voltage: 3.3 V
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Cable Jacket Material: LSZH (Low Smoke Zero Halogen)
• Compliance: RoHS, CE, FCC, MSA Compliant
• Electrical Interface: SFF-8436 Compliant
• Number of Lanes: 4 Tx, 4 Rx

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP+ ports. This AOC is a direct replacement for the Finisar FCBG410QB1C03 and is backed by BlueOptics' quality assurance.
