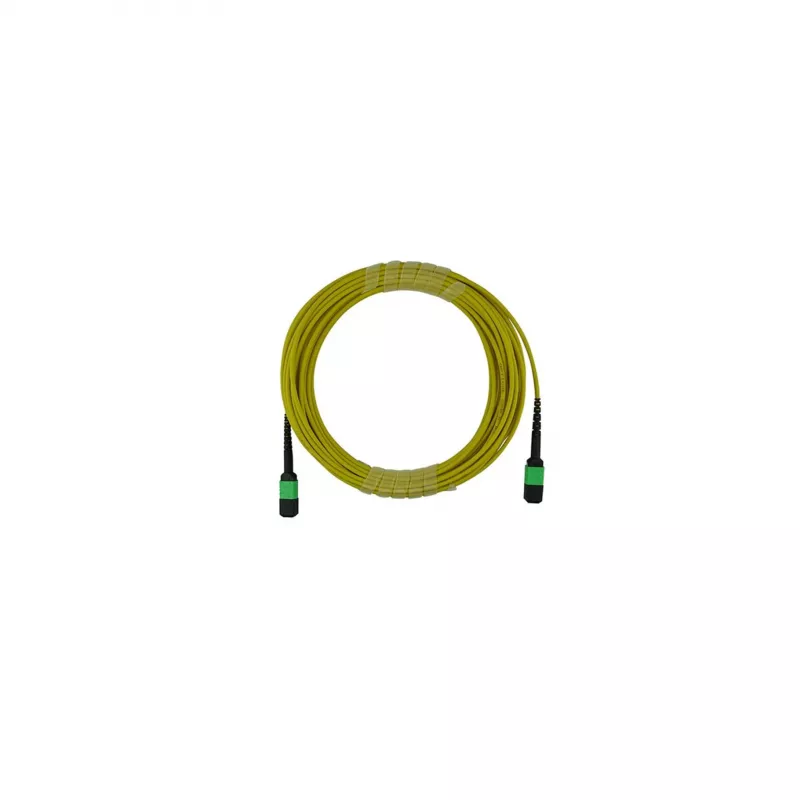

BlueOptics Compatibele Juniper MTP12-FF-S1M MTP/APC naar MTP/APC Singlemode OS2 glasvezel-trunkkabel, 1 meter

The BlueOptics MTP12-FF-S1M is a high-performance fibre optic trunk cable designed for seamless integration with Juniper Networks equipment. This 1-meter singlemode OS2 cable features MTP/APC female connectors on both ends, providing a reliable and low-loss connection for high-density fibre environments.

Advantages

Engineered for optimal signal integrity, this trunk cable offers typical insertion loss of ≤0.35 dB and return loss ≥60 dB, ensuring minimal signal degradation. The LSZH jacket enhances safety by reducing smoke and toxic fumes in case of fire. Polarity Type B (universal) simplifies deployment in structured cabling systems.

Suitable for

• Data center interconnects
• High-density fibre patching
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Juniper MTP/APC systems

Key specifications

• Fibre Count: 12 fibres
• Fibre Type: Singlemode OS2 (ITU-T G.657.A1 / G.652.D)
• Connector A: MTP/APC (Female)
• Connector B: MTP/APC (Female)
• Cable Length: 1 meter (3.28 ft)
• Jacket Material: LSZH
• Polarity: Type B (Universal)
• Insertion Loss (Typical): ≤0.35 dB
• Return Loss (Typical): ≥60 dB
• Operating Wavelengths: 1310 nm, 1550 nm
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Ferrule Material: Ceramic
• Compliance: RoHS, TIA/EIA-568-C.3, IEC-61754-7
• Cable Colour: Yellow
• Connector Colour: Green (APC)

Recommendations

For optimal performance, ensure proper cleaning of MTP/APC connectors before mating. This cable is ideal for high-speed data transmission in enterprise and data center environments.
