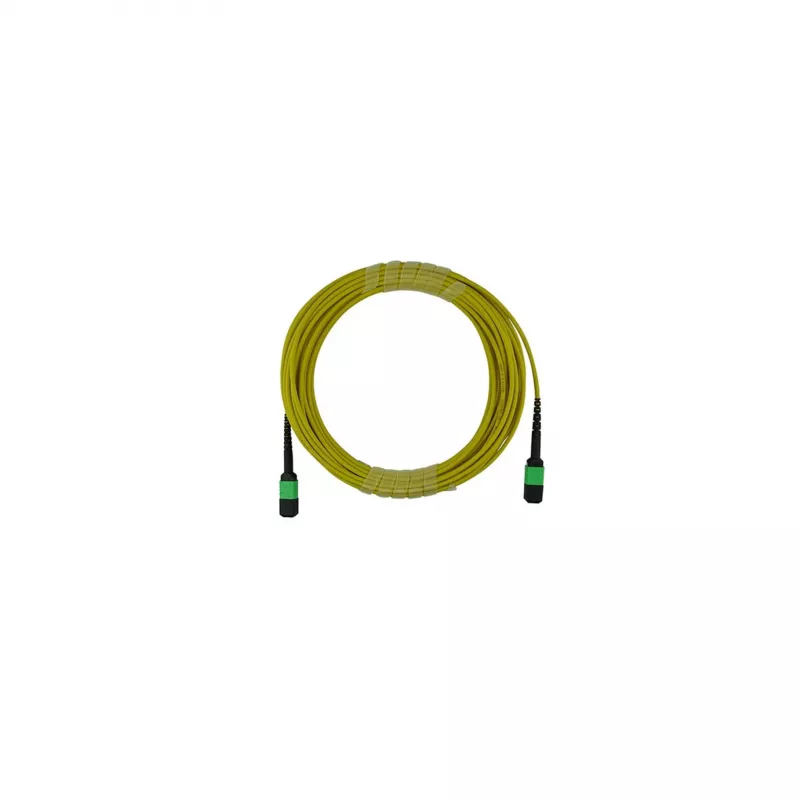

BlueOptics Compatibele Juniper MTP12-FF-S5M MTP/APC naar MTP/APC OS2 Singlemode glasvezel-trunkkabel, 12 vezels, 5 meter, geel

The BlueOptics MTP12-FF-S5M is a high-performance fibre optic trunk cable designed for seamless integration with Juniper Networks systems. This MTP/APC to MTP/APC cable features 12 single-mode fibres in an OS2 grade, ensuring reliable data transmission for 40G/100G Ethernet and data centre interconnects. With a length of 5 metres and a durable LSZH jacket in yellow, it meets the demands of high-density cabling environments.

Advantages

This trunk cable offers low insertion loss (≤0.35 dB typical) and high return loss (≥60 dB typical), ensuring signal integrity. Its MTP/APC female connectors with zirconia ceramic ferrules provide precise alignment and low reflectance. The LSZH jacket enhances safety in confined spaces, while the Type B polarity ensures correct fibre mapping for duplex transmission.

Suitable for

• Data centre interconnects
• High-density cabling in server rooms
• 40G/100G Ethernet networks
• Juniper Networks compatible systems

Key specifications

• Connector Type: MTP/APC (Female) to MTP/APC (Female)
• Fiber Count: 12 Fibers
• Fiber Mode: Single-mode (OS2)
• Cable Length: 5 metres
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss: ≤0.35 dB (typical)
• Return Loss: ≥60 dB (typical)
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, TIA/EIA-568-C.3, IEC-61754-7, GR-1435-CORE

Recommendations

For optimal performance, ensure proper handling and storage within specified temperature ranges. This cable is ideal for structured cabling systems requiring high-density and low-loss connections.
