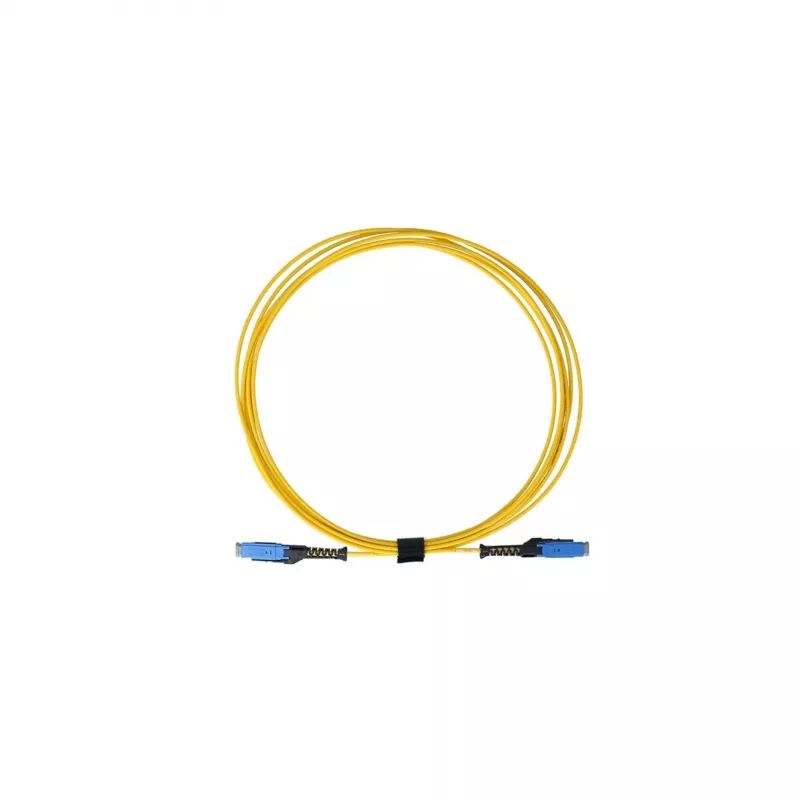

BlueOptics Duplex Fiber Optic Patch Cable, MDC-UPC naar MDC-UPC, Singlemode 9/125µm, G.657, 3m, blauw

The BlueOptics Duplex Fiber Optic Patch Cable is a high-performance singlemode patch cable designed for reliable data transmission in demanding network environments. Featuring MDC-UPC connectors on both ends, this cable ensures low insertion loss and high return loss, making it ideal for data centers, LAN, SAN, FTTx, and telecommunications applications. The bend-insensitive G.657 fiber provides enhanced flexibility without compromising signal integrity.

Advantages

This patch cable offers exceptional performance with typical insertion loss ≤0.25 dB and return loss ≥50 dB. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, while the blue color aids in easy identification. The compact MDC connector design saves space in high-density patching areas.

Suitable for

• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Fiber-to-the-x (FTTx) deployments
• Telecommunications infrastructure

Key specifications

• Fiber Mode: Singlemode (9/125 µm)
• Fiber Standard: ITU-T G.657.A1/A2 (Bend-Insensitive)
• Connector Type: MDC-UPC to MDC-UPC
• Polish: UPC (Ultra Physical Contact)
• Cable Length: 3 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Blue
• Insertion Loss (Typical): ≤ 0.25 dB
• Return Loss (Typical): ≥ 50 dB
• Wavelengths Supported: 1310nm, 1550nm
• Minimum Bend Radius: 10 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE, IEC 61754, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard MDC ports and is suitable for both indoor and controlled outdoor environments.
