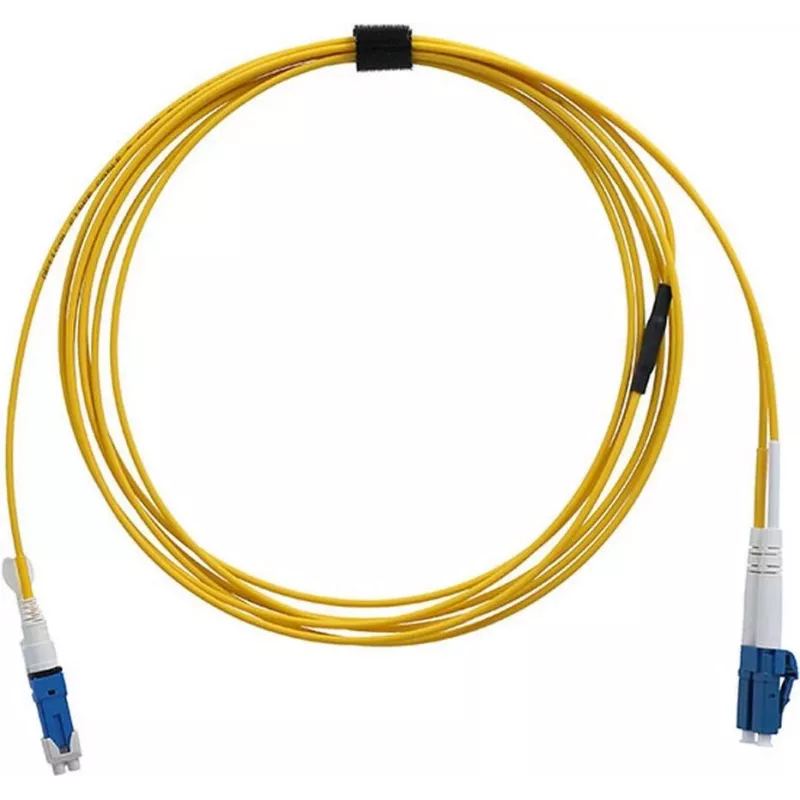

BlueOptics Duplex LWL-patchkabel CS-UPC naar LC-UPC Singlemode OS2 2 meter

The BlueOptics SFP9131BU2MK is a high-quality duplex fiber optic patch cable designed for reliable singlemode connections in data centers, telecommunications, and LAN networks. Featuring CS-UPC to LC-UPC connectors with a 2-meter length, this OS2-rated cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This cable offers exceptional performance with typical insertion loss <0.25 dB and return loss >50 dB. The LSZH jacket provides safety in enclosed spaces, while the yellow color ensures easy identification. Compliant with IEC 61754 and TIA/EIA-604 standards, it guarantees compatibility and reliability.

Suitable for

• Data center interconnects
• Telecommunications networks
• Local area networks (LAN)
• FTTx applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Singlemode OS2
• Connector A: CS-UPC
• Connector B: LC-UPC
• Length: 2 meters
• Core/Cladding: 9/125 µm
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss: <0.25 dB typical
• Return Loss: >50 dB typical
• Operating Temperature: -20°C to +70°C
• Attenuation: ≤0.35 dB/km @1310nm, ≤0.25 dB/km @1550nm

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-speed networks requiring low loss and high reliability.
