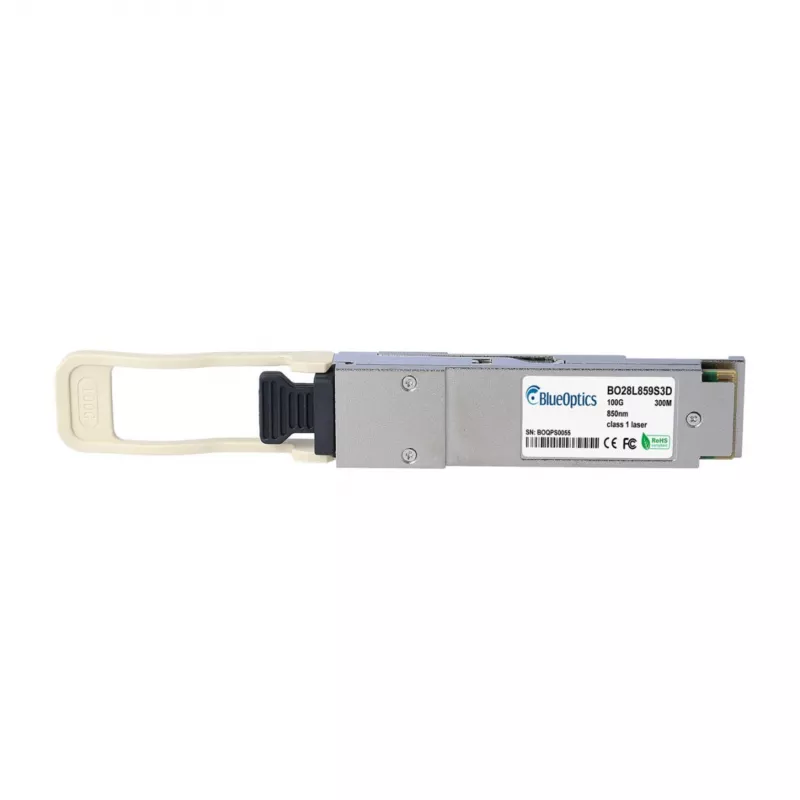

BlueOptics E100G-QSFP28-ESR4 compatibele QSFP28-transceiver, MPO/MTP, 100GBASE-ESR

The BlueOptics E100G-QSFP28-ESR4 is a high-performance QSFP28 transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with Ruckus E100G-QSFP28-ESR4 equipment and delivers reliable connectivity over multi-mode fiber.

Advantages

This transceiver offers cost-effective 100GbE connectivity with low power consumption under 3.5W. It supports hot-plugging and digital diagnostics monitoring (DDM) for real-time performance tracking. The MPO/MTP-12 connector enables high-density cabling solutions.

Suitable for

• Data center interconnects
• Enterprise network uplinks
• High-performance computing clusters
• 100GBASE-ESR compliant networks

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps (4x 25Gbps channels)
• Connector: MPO/MTP-12 (Female)
• Fiber Type: Multi-mode (OM3/OM4)
• Wavelength: 850 nm
• Max Reach: 300m (OM3), 400m (OM4)
• Power Consumption: < 3.5 W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, use with OM4 multi-mode fiber and ensure proper MPO connector cleaning. This transceiver is ideal for upgrading existing 10GbE/40GbE networks to 100GbE.
