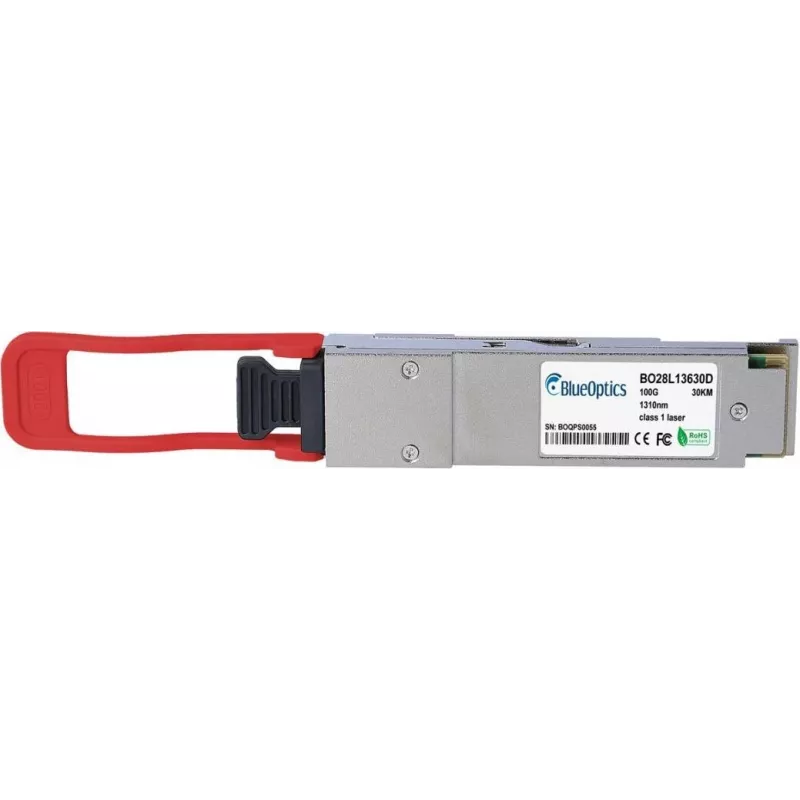

BlueOptics Extreme Networks EQPT1H4ER4ECL1LT compatibele QSFP28-transceiver, 100GBASE-ER4L, LC-duplex, singlemode, 1310nm, 30km, 0-70°C, DDM

The BlueOptics BO28L13630D is a high-performance QSFP28 optical transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with Extreme Networks EQPT1H4ER4ECL1LT switches and routers, ensuring seamless integration into existing network infrastructures. This transceiver supports the 100GBASE-ER4L standard over singlemode fiber, delivering reliable connectivity for data center and enterprise networks.

Advantages

This transceiver offers extended reach up to 30 km, making it ideal for long-haul connections. It features hot-pluggable design for easy installation and maintenance, and supports Digital Diagnostic Monitoring (DDM) for real-time performance monitoring. The rugged design ensures stable operation in temperatures from 0°C to 70°C.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Telecommunications
• Service provider networks

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Protocol: 100GBASE-ER4L
• Connector: LC Duplex
• Fiber Type: Singlemode (OS2)
• Wavelength: 1310 nm (LAN-WDM)
• Maximum Distance: 30 km
• Operating Temperature: 0°C to +70°C
• DDM: Supported
• Hot-Pluggable: Yes
• Compliance: MSA Compliant

Recommendations

For optimal performance, use with singlemode fiber patch cables (OS2) and ensure proper cleaning of LC connectors. This transceiver is a cost-effective alternative to OEM modules without compromising quality or compatibility.
