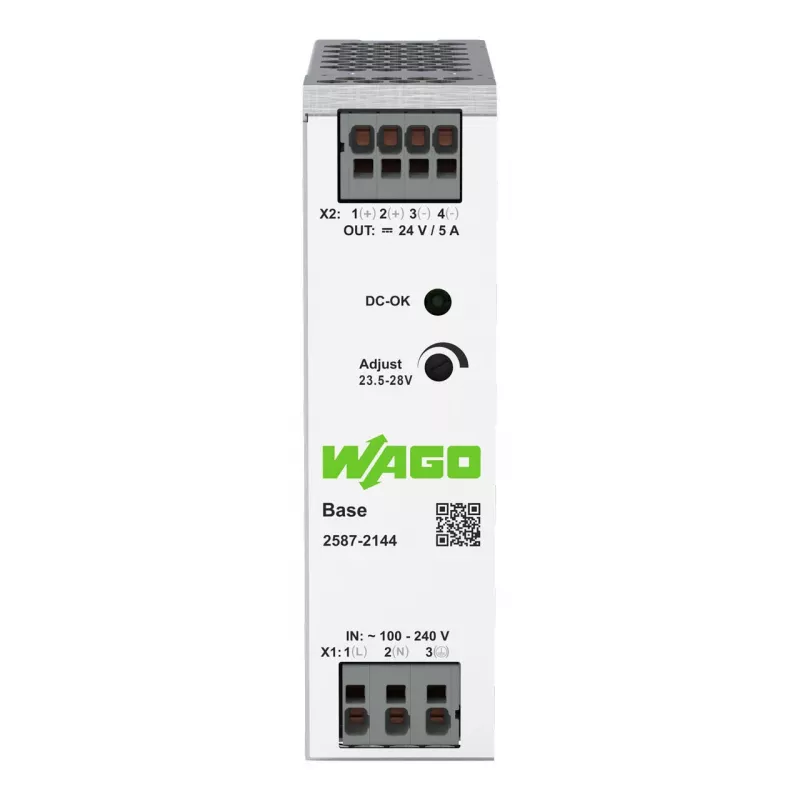

WAGO 2587-2144 primair geschakelde voeding Basis 1-fasig, 24 VDC, 5 A, 120 W, DIN-rail

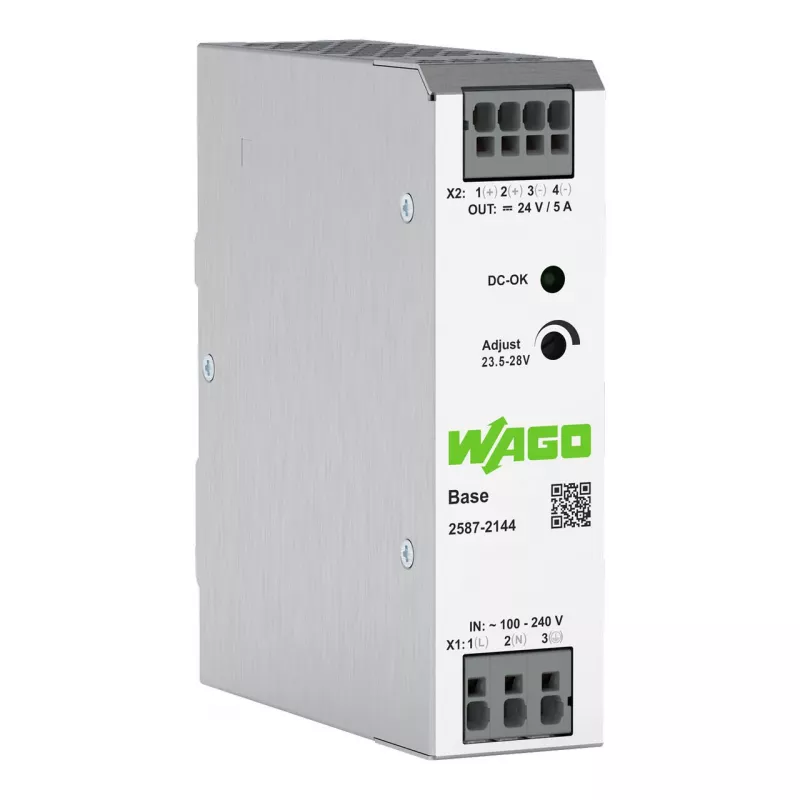

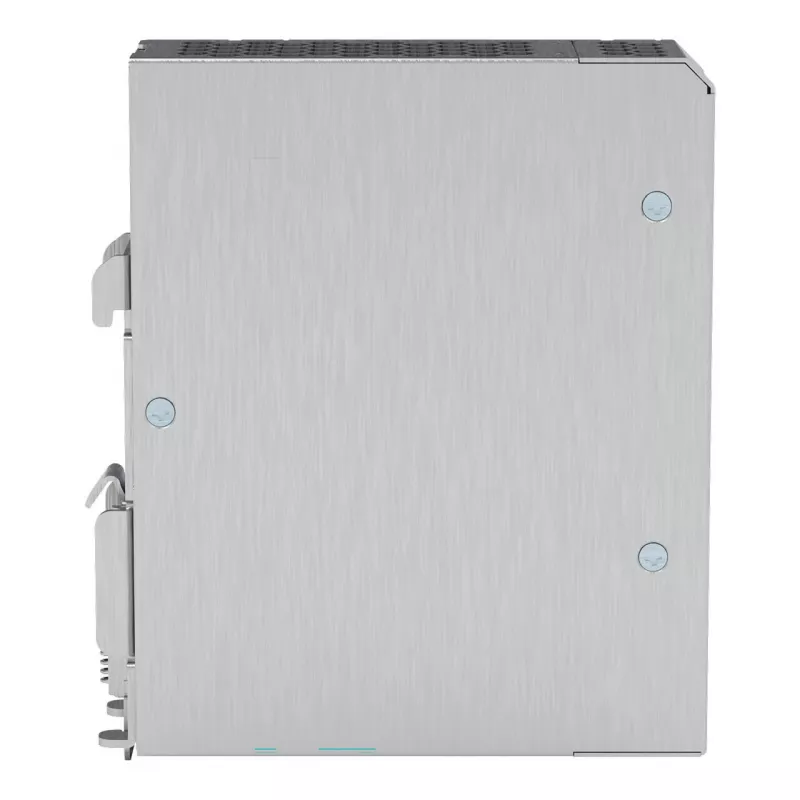

The WAGO 2587-2144 is a primary switched power supply unit designed for industrial applications. It provides a stable 24 VDC output with a current of 5 A and a power rating of 120 W. The device features auto-ranging input for 100-240 VAC, making it suitable for global use. Its compact metal housing is designed for DIN-35 rail mounting, ensuring easy integration into control cabinets.

Advantages

High efficiency up to 90.5% reduces energy costs and heat generation. The push-in CAGE CLAMP® connection technology allows for fast and secure wiring without tools. Comprehensive protection features (overload, short-circuit, overvoltage, overtemperature) ensure reliable operation and equipment safety. With a wide operating temperature range of -25 to +70 °C and a long MTBF of over 1,000,000 hours, this power supply is built for demanding environments.

Suitable for

• Industrial automation systems
• Control cabinets and panel building
• Building automation and HVAC controls
• Process control and machinery

Key specifications

• Input: 100-240 VAC, 50/60 Hz, 1-phase
• Output: 24 VDC, 5 A, 120 W
• Efficiency: up to 90.5%
• Mounting: DIN-35 rail
• Connection: Push-in CAGE CLAMP®
• Protection: IP20, metal housing
• Approvals: CE, UL, cUL, GL, RCM, EAC, RoHS

Recommendations

For optimal performance, ensure adequate ventilation and derate output power above +55 °C. Use appropriate circuit protection on the input side. This power supply is ideal for powering 24 VDC sensors, actuators, and controllers in industrial environments.
