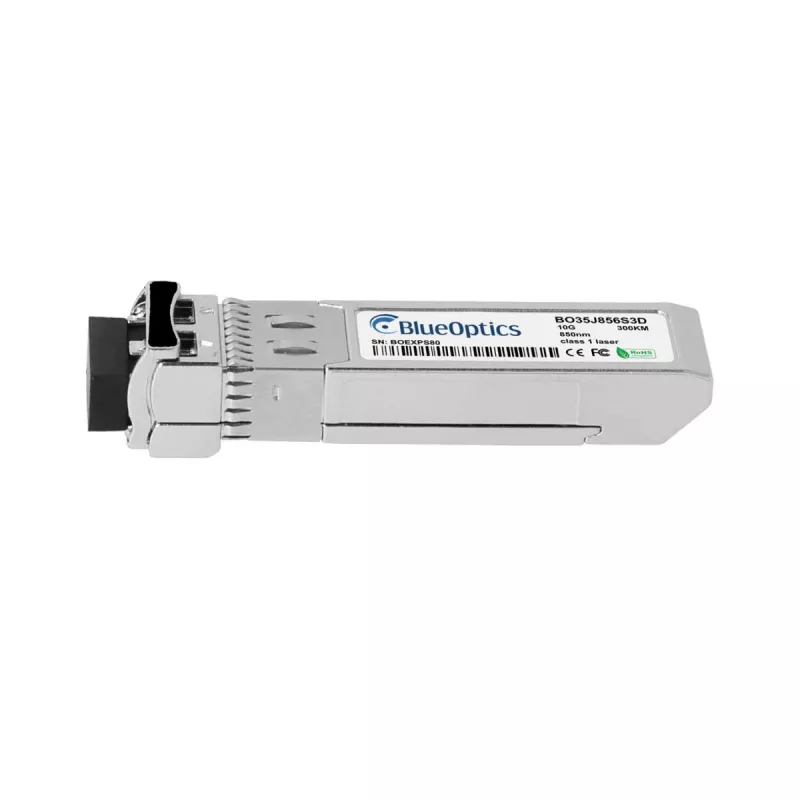

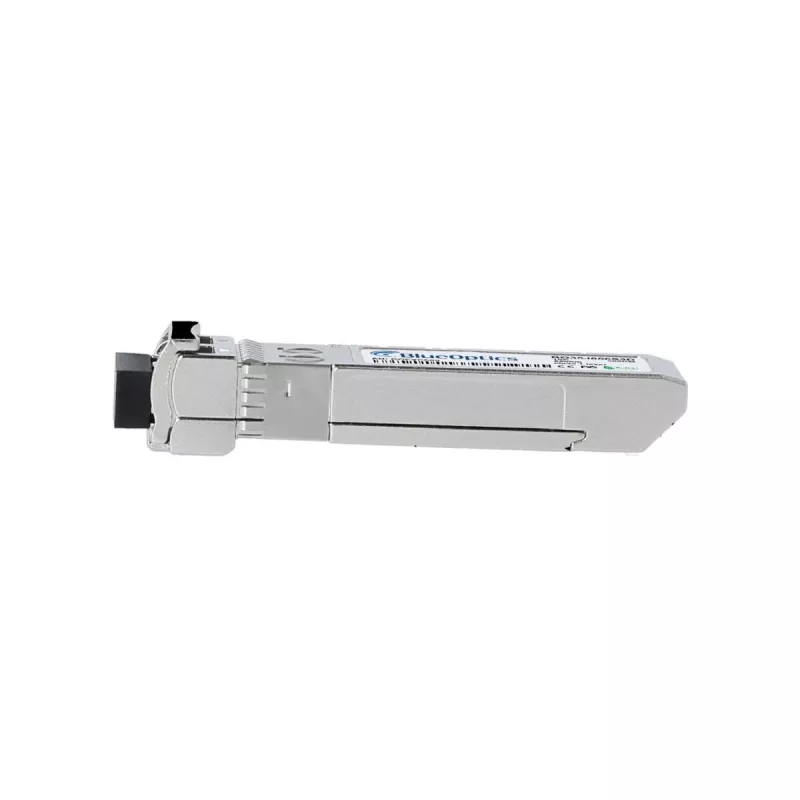

BlueOptics Finisar NVIDIA FTLX8571D3BCL-ME BO35J856S3D SFP+-transceiver, 10GBASE-SR, multimode vezel, 850nm, 300m

The BlueOptics BO35J856S3D is a high-performance SFP+ transceiver module designed for 10 Gigabit Ethernet applications. It is compatible with Finisar FTLX8571D3BCL-ME and NVIDIA equipment, as well as any MSA compliant SFP+ port. This module supports 10GBASE-SR over multimode fiber with a wavelength of 850nm, providing reliable connectivity for data centers and enterprise networks.

Advantages

This transceiver offers low power consumption (<1.0W), hot-pluggable capability, and digital diagnostics monitoring (DDM/DOM) for real-time performance tracking. It is fully compliant with IEEE 802.3ae and SFF-8431 standards, ensuring interoperability and high performance.

Suitable for

• 10 Gigabit Ethernet networks
• Data center interconnects
• Enterprise LAN and SAN environments
• High-speed server and switch connections

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Protocol: 10GBASE-SR
• Wavelength: 850 nm
• Fiber Type: Multimode Fiber (MMF)
• Connector Type: LC Duplex
• Max Distance: 300 m (OM3), 400 m (OM4)
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Power Consumption: <1.0 W
• Operating Temperature: 0°C to 70°C
• Laser Type: VCSEL
• Compatibility: Finisar FTLX8571D3BCL-ME, NVIDIA, MSA compliant
• Standards: IEEE 802.3ae, SFF-8431, SFF-8432
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber cables. Ensure the host device supports SFP+ and 10GBASE-SR. This module is ideal for short-range high-speed connections within data centers.
