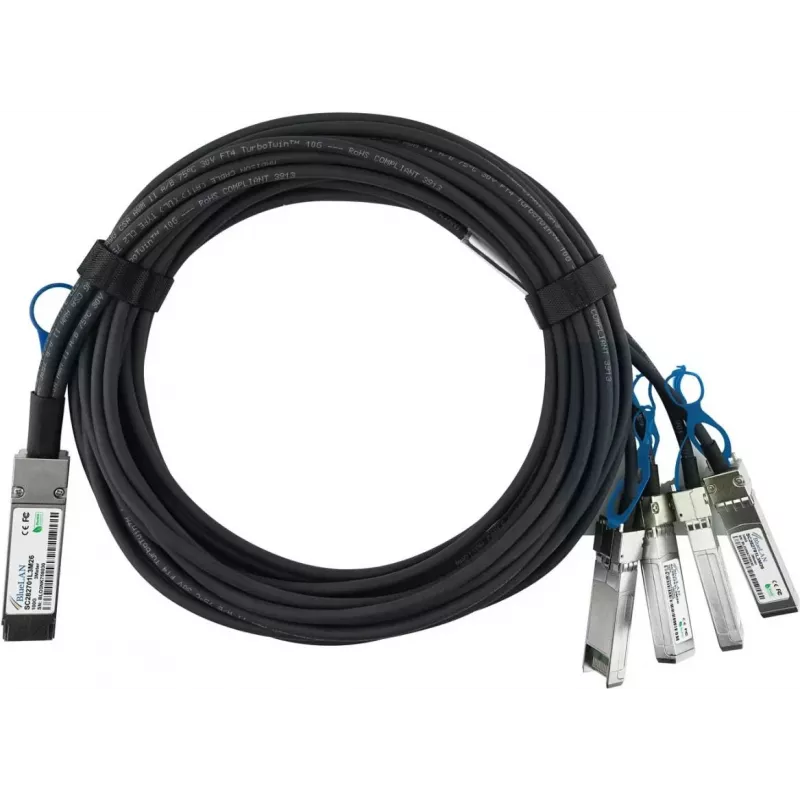

BlueOptics Juniper 720-068901 Compatible BlueLAN QSFP28 naar 4x SFP28 Passieve Direct Attach Breakout-kabel, 1m, AWG26

The BlueOptics Juniper 720-068901 compatible BlueLAN passive direct attach breakout cable is designed for high-performance data center and network interconnect applications. This cable enables a single 100GBASE-CR4 QSFP28 port to break out into four 25GBASE-CR SFP28 ports, providing a cost-effective and efficient solution for 100G to 25G connectivity.

Advantages

This breakout cable offers significant advantages over using separate transceivers and fiber optic cabling. It provides a low-power, passive copper solution with zero power consumption, ensuring reliable and energy-efficient operation. The cable is hot-pluggable and compliant with RoHS standards, making it an environmentally friendly choice. With a length of 1 meter and AWG26 wire gauge, it is ideal for short-distance connections within racks or between adjacent racks.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing (HPC) clusters
• Network aggregation and core switching
• Juniper networking equipment requiring 100G to 25G breakout

Key specifications

• Cable Type: Direct Attach Cable (DAC) - Breakout
• Connector A: QSFP28
• Connector B: 4x SFP28
• Data Rate: 100 Gbps aggregate (4x 25 Gbps per lane)
• Standards: 100GBASE-CR4 (QSFP28), 25GBASE-CR (SFP28)
• Cable Length: 1 meter (3.3 ft)
• Wire Gauge: AWG26
• Cable Design: Passive Copper Twinax
• Impedance: 100 Ohm
• Power Consumption: 0W (Passive)
• Hot-Pluggable: Yes
• Compliance: RoHS

Recommendations

This cable is a direct replacement for Juniper 720-068901 and is fully compatible with Juniper QSFP28 and SFP28 ports. For optimal performance, ensure that the connected equipment supports the breakout configuration and the appropriate standards.
