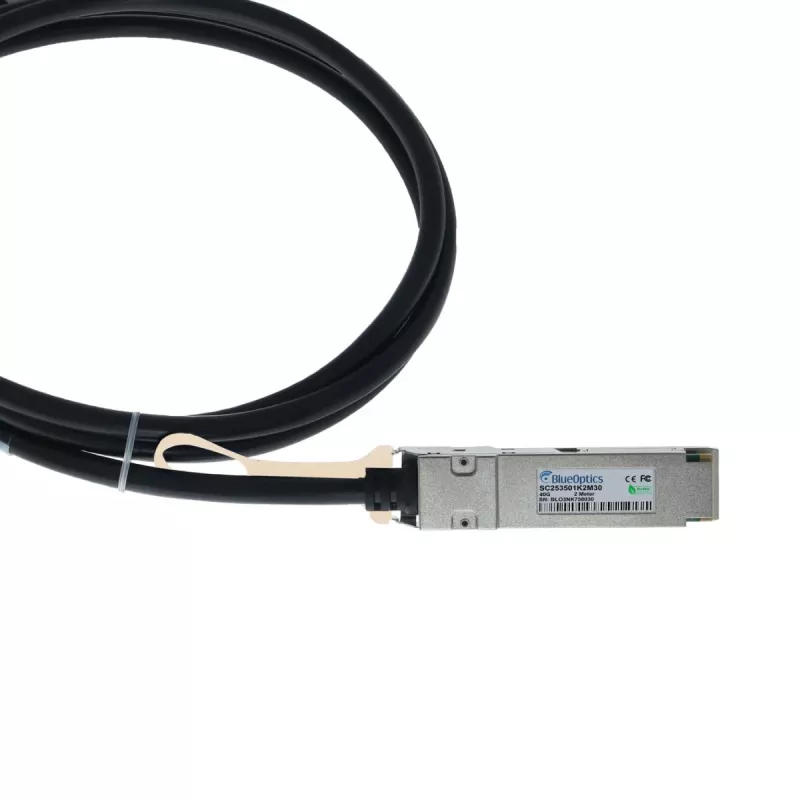

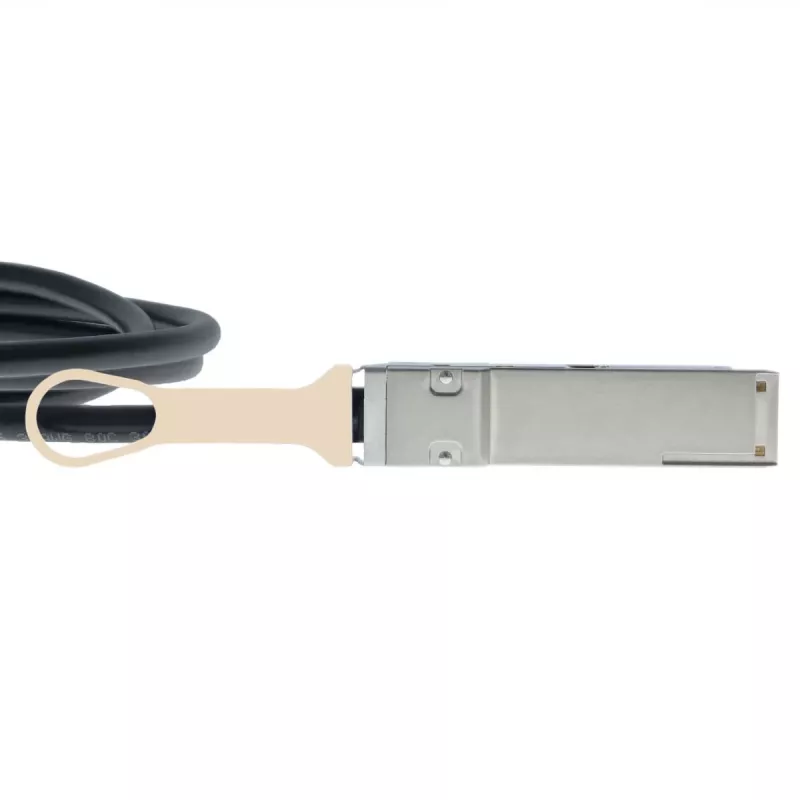

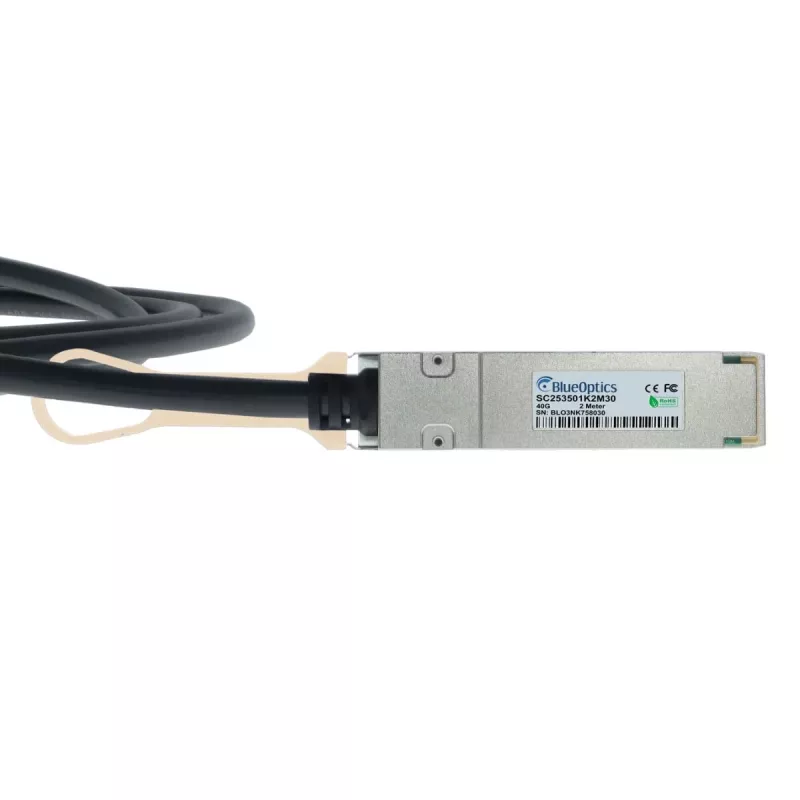

BlueOptics NetApp X66120-2 compatibele BlueLAN QSFP+ Direct Attach koperkabel 30m

This 40GBASE-CR4 QSFP+ to QSFP+ active copper cable delivers 40 Gigabit Ethernet over a 30-meter link with ultra-low latency, engineered for seamless compatibility with NetApp X66120-2 storage systems and SFF-8436 compliant devices. Active signal amplification ensures robust performance beyond passive DAC limits, making it ideal for data center interconnects and high-performance computing clusters.

Advantages

Active copper technology maintains full 40GbE throughput without optical transceivers, reducing cost and complexity. Hot-swappable design enables quick deployment and maintenance. 24 AWG conductors and 100 Ohm impedance guarantee consistent signal integrity, while power consumption under 1.5 W supports energy-efficient operations. The PVC jacket provides durability in demanding environments.

Suitable for

• NetApp X66120-2 compatible storage arrays and switches
• 40GBASE-CR4 Ethernet infrastructures in data centers
• High-performance computing (HPC) clusters and server interconnects
• Network storage systems requiring low-latency, high-bandwidth links
• Any SFF-8436 compliant QSFP+ port environment

Key specifications

• Connector type: QSFP+ to QSFP+
• Cable length: 30 meters (98.4 ft)
• Data rate: 40 Gigabit Ethernet (40GbE)
• Cable type: Active Copper Cable (ACC)
• Wire gauge: 24 AWG
• Impedance: 100 Ohm
• Power consumption: < 1.5 W
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Voltage supply: 3.3V
• Jacket material: PVC
• Certifications: RoHS, CE, FCC

Recommendations

For reliable 40GbE connectivity in NetApp environments, this active copper cable offers an excellent balance of performance, reach, and cost-effectiveness.
