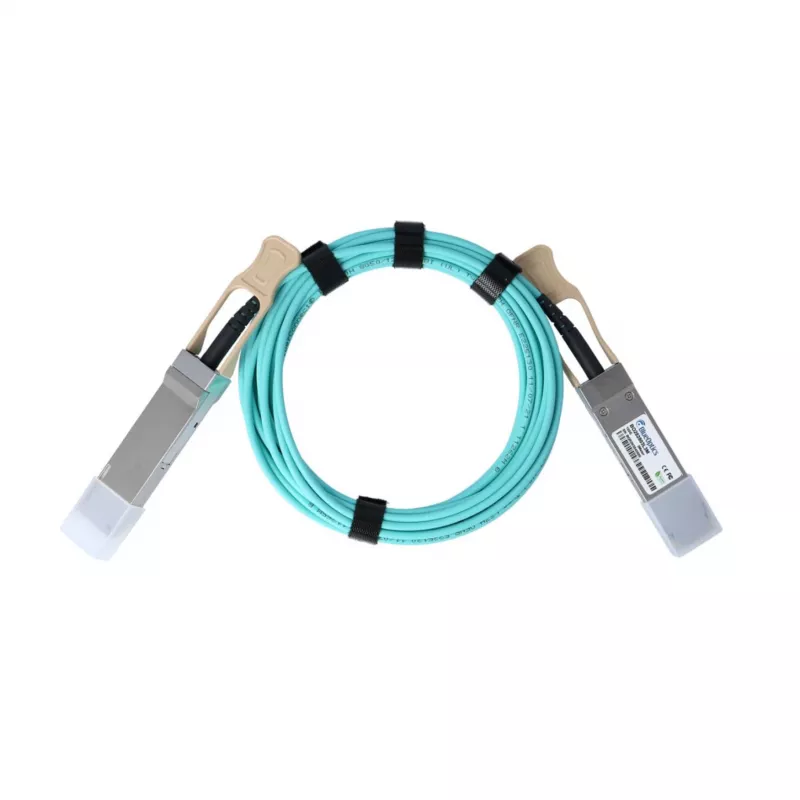

BlueOptics QSFP-100G-AOC-15M compatibele actieve optische kabel QSFP28 15m

The BlueOptics QSFP-100G-AOC-15M is a high-performance Active Optical Cable (AOC) designed for 100 Gigabit Ethernet and InfiniBand EDR applications. It provides a reliable, cost-effective solution for short-range, high-speed interconnects in data centers and enterprise networks.

Advantages

This AOC offers ultra-low latency, low power consumption (max 3.5W per end), and hot-pluggable QSFP28 connectors for easy installation. The LSZH jacket ensures safety in enclosed spaces, and digital diagnostics monitoring (DDM) enables real-time performance tracking.

Suitable for

• 100 Gigabit Ethernet (100GbE) connections
• InfiniBand EDR networks
• Data center top-of-rack to server/switch links
• High-performance computing clusters

Key specifications

• Product Type: Active Optical Cable (AOC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Cable Length: 15 meters
• Form Factor: QSFP28
• Fiber Type: Multimode Fiber (MMF)
• Channels: 4 independent full-duplex channels (25 Gbps per channel)
• Power Consumption: Max 3.5W per end
• Voltage Supply: 3.3V
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Compliance: RoHS, CE, FCC
• Cable Jacket Material: LSZH (Low Smoke Zero Halogen)
• Digital Diagnostics Monitoring (DDM): Yes
• Latency: Ultra-low

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is MSA compliant and works seamlessly with a wide range of networking equipment.
