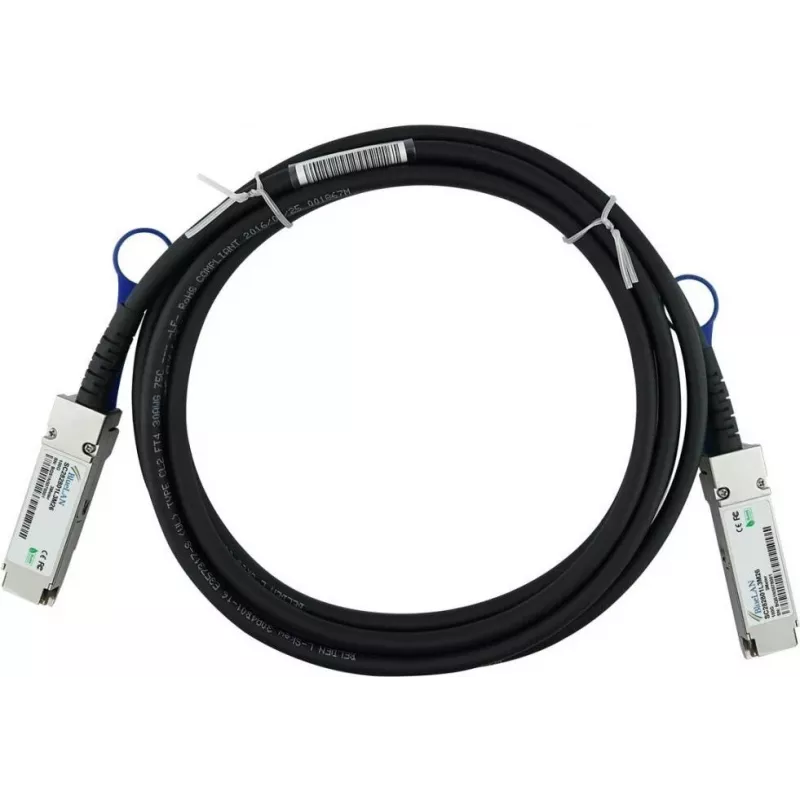

BlueOptics QSFP28-DAC-5M compatibele GIGABYTE BlueLAN DAC-kabel, 100GBASE-CR4, Infiniband EDR, 26AWG, 5m (QSFP28-DAC-5M-BL)

The BlueOptics QSFP28-DAC-5M is a high-performance, passive Direct Attach Copper (DAC) cable designed to provide reliable 100 Gbps connectivity for data centers, HPC, and enterprise networks. This cable is fully compatible with GIGABYTE QSFP28-DAC-5M and BlueLAN SC282801L5M26 equipment, ensuring seamless integration into existing infrastructures.

Advantages

Cost-effective and energy-efficient alternative to optical transceivers, with low power consumption (<0.5W per end) and hot-pluggable design for easy installation. The 26 AWG construction ensures optimal signal integrity over 5 meters, supporting both Ethernet (100GBASE-CR4) and Infiniband EDR protocols.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking environments
• GIGABYTE and BlueLAN compatible switches and servers

Key specifications

• Product Type: Passive Direct Attach Copper (DAC) Cable
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• Infiniband Support: EDR (Enhanced Data Rate)
• Cable Length: 5 Meter
• Wire Gauge: 26 AWG
• Impedance: 100 Ohm
• Power Consumption: <0.5W per end
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is ideal for short-range, high-speed connections within racks or between adjacent racks.
