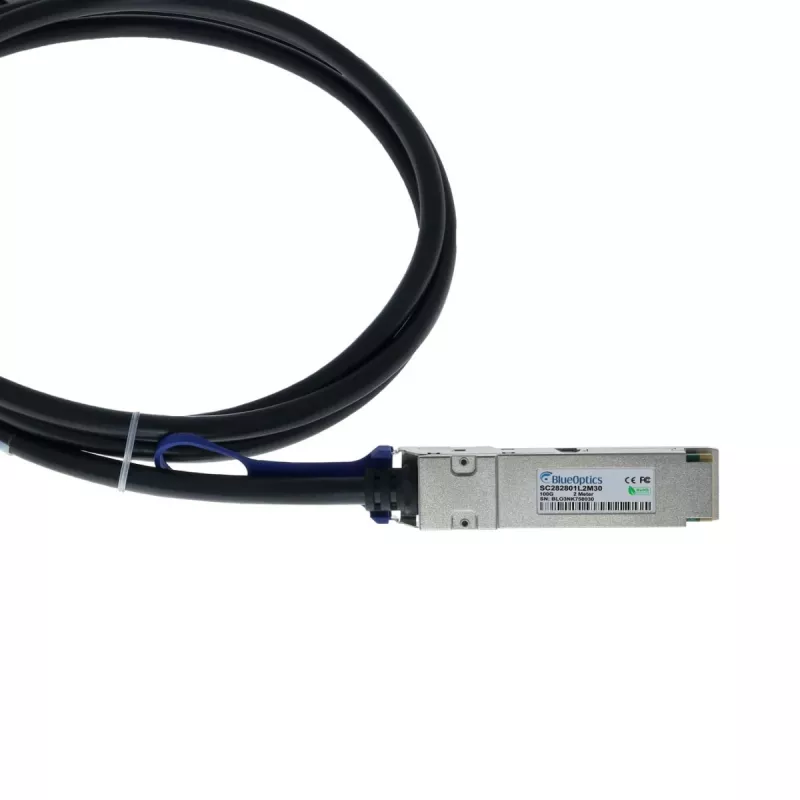

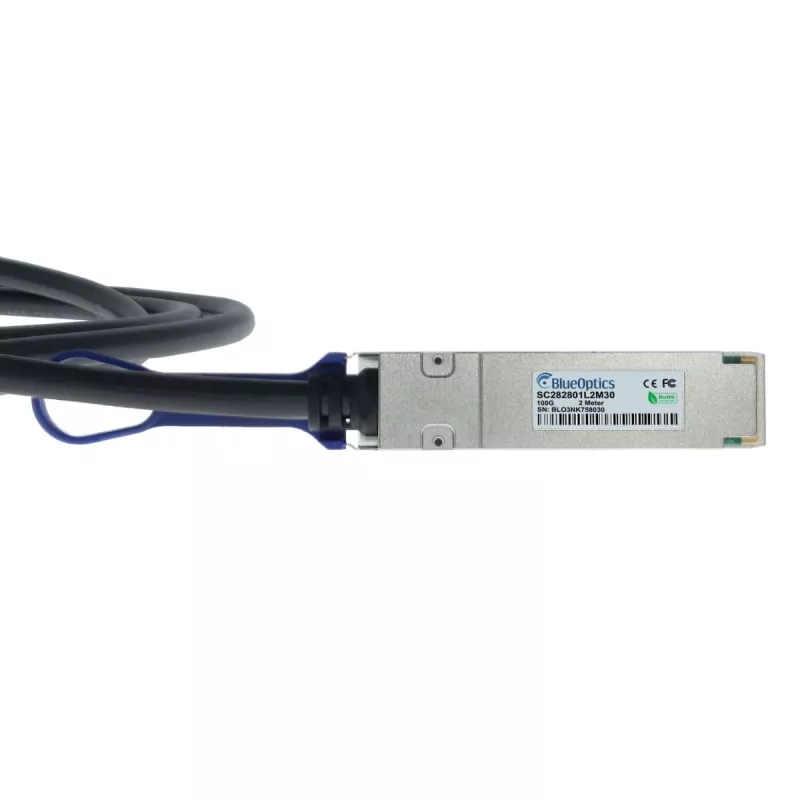

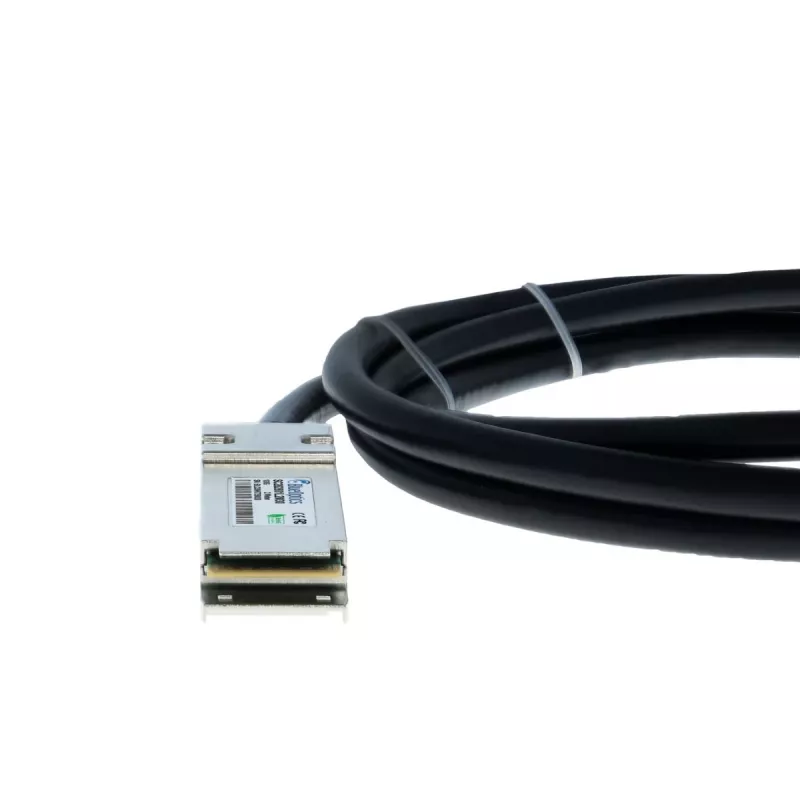

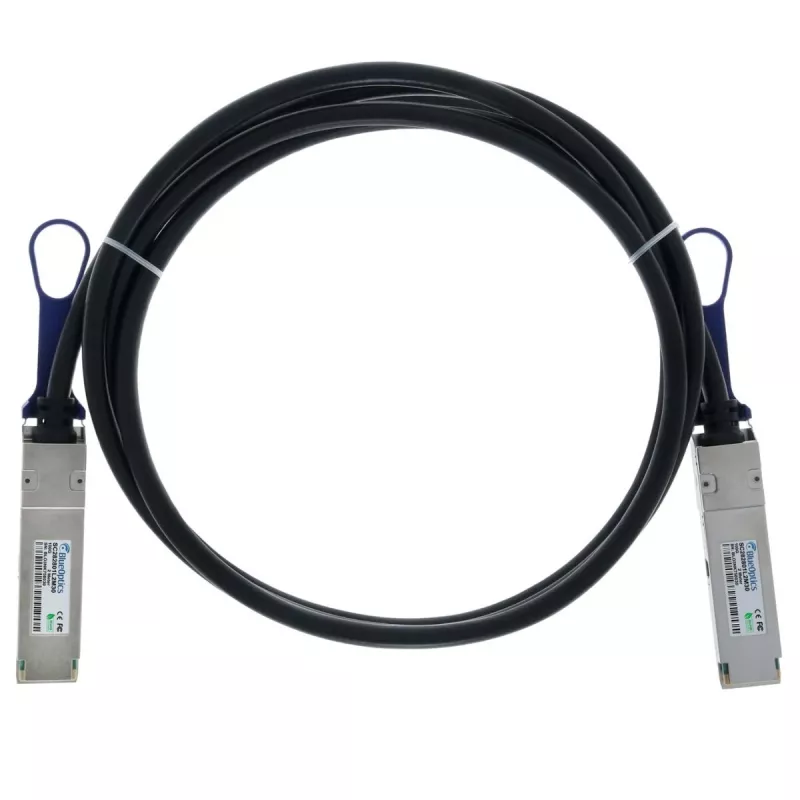

BlueOptics Ruckus Compatibele BlueLAN DAC QSFP28 100G 1m Passieve koperkabel

The BlueOptics Ruckus Compatible BlueLAN DAC QSFP28 100G 1m Passive Copper Cable is a high-performance direct attach copper (DAC) cable designed for 100 Gigabit Ethernet connectivity. It is fully compatible with Ruckus 100G-Q28-Q28-C-0101 equipment, ensuring seamless integration into your network infrastructure. This passive cable delivers reliable, low-latency data transmission for data center and enterprise applications.

Advantages

Cost-effective solution for short-range 100G connections without the need for optical transceivers. Passive design ensures zero power consumption and minimal heat generation. Hot-swappable QSFP28 connectors allow for easy installation and maintenance. Compliant with industry standards for interoperability and reliability.

Suitable for

• Data center interconnects
• Server-to-switch connections
• Switch-to-switch links
• High-performance computing environments

Key specifications

• Cable Type: Direct Attach Copper (DAC) Passive
• Data Rate: 100 Gbps (100GBASE-CR4)
• Connector Type: QSFP28 to QSFP28
• Cable Length: 1 meter (3.3 feet)
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Insertion Loss: < 2.5 dB @ 25.78 Gbps per lane
• Power Consumption: < 0.5W per end
• Operating Temperature: 0°C to 70°C
• Compliance: SFF-8665, IEEE 802.3bj, RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected to compatible QSFP28 ports. This cable is ideal for short-distance, high-speed connections within racks or adjacent racks. For longer distances, consider active optical cables or fiber optic transceivers.
