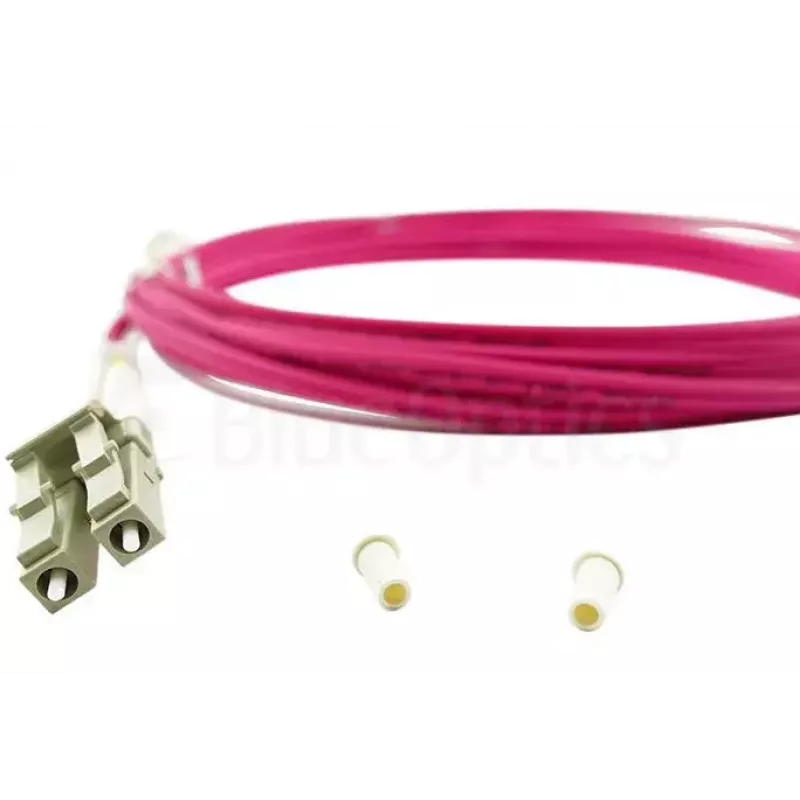

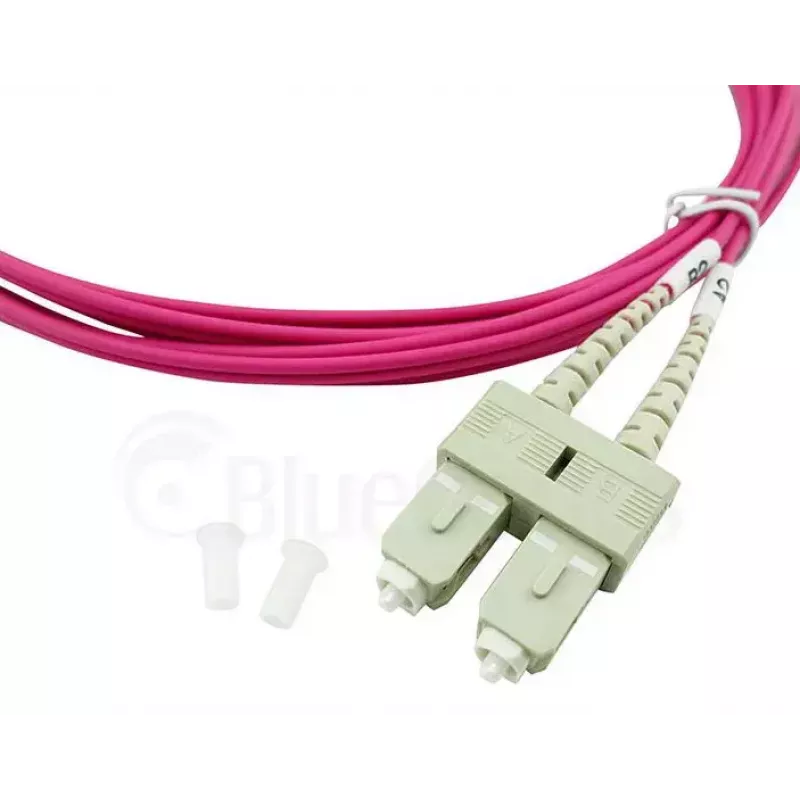

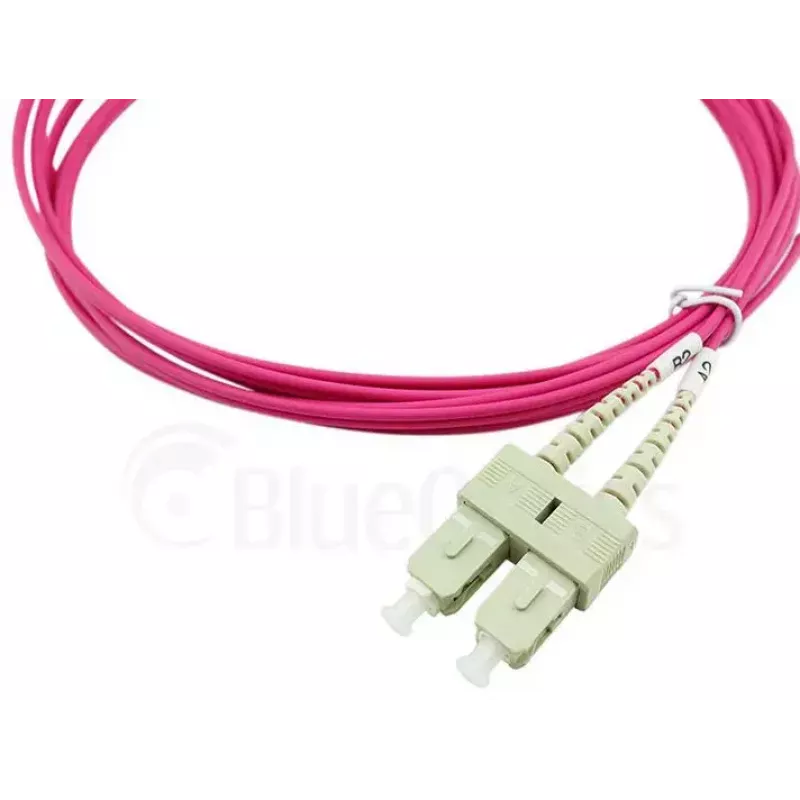

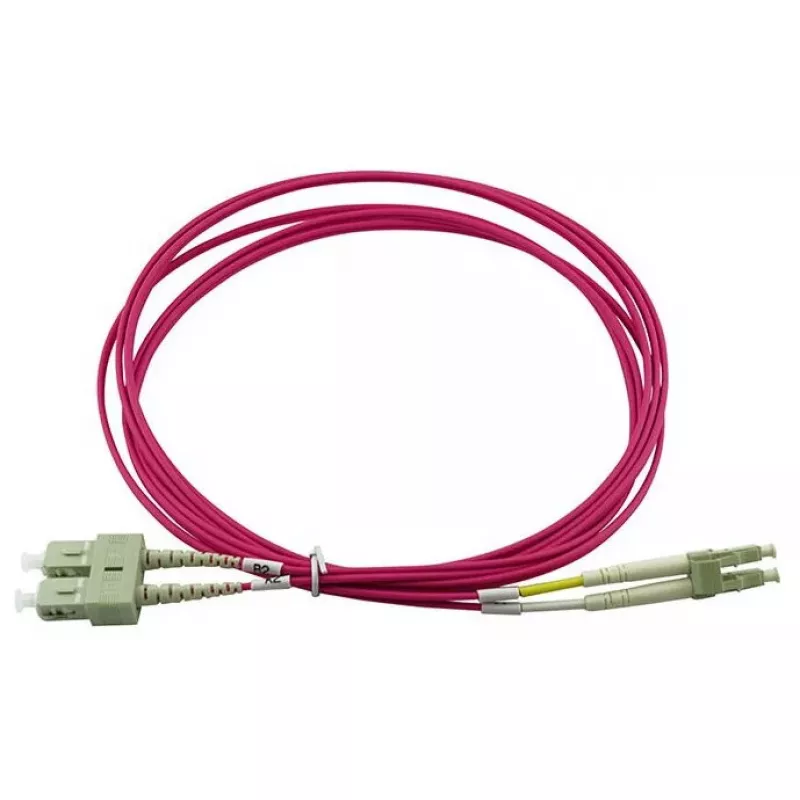

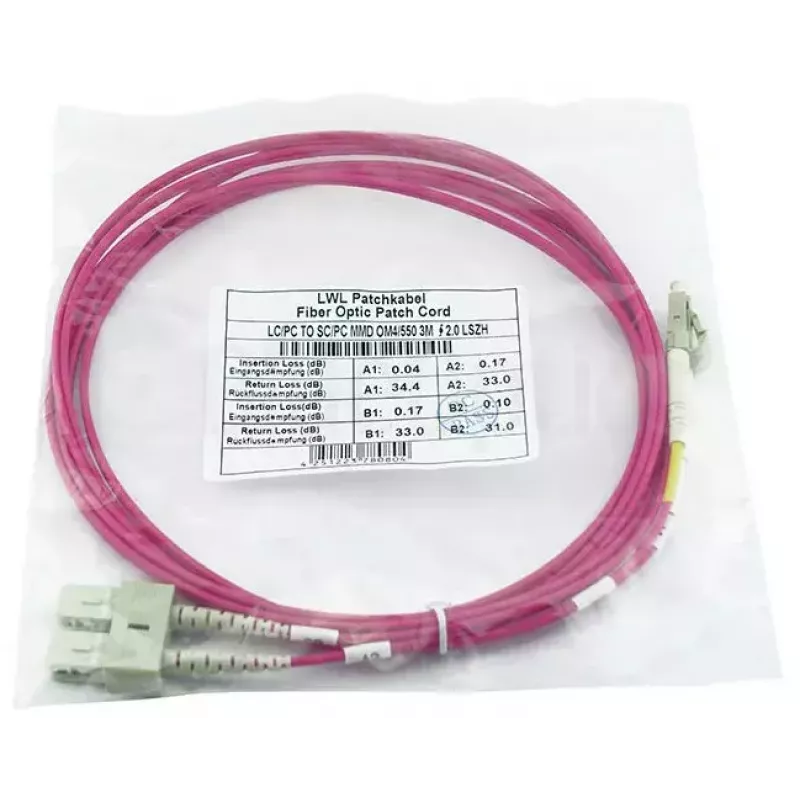

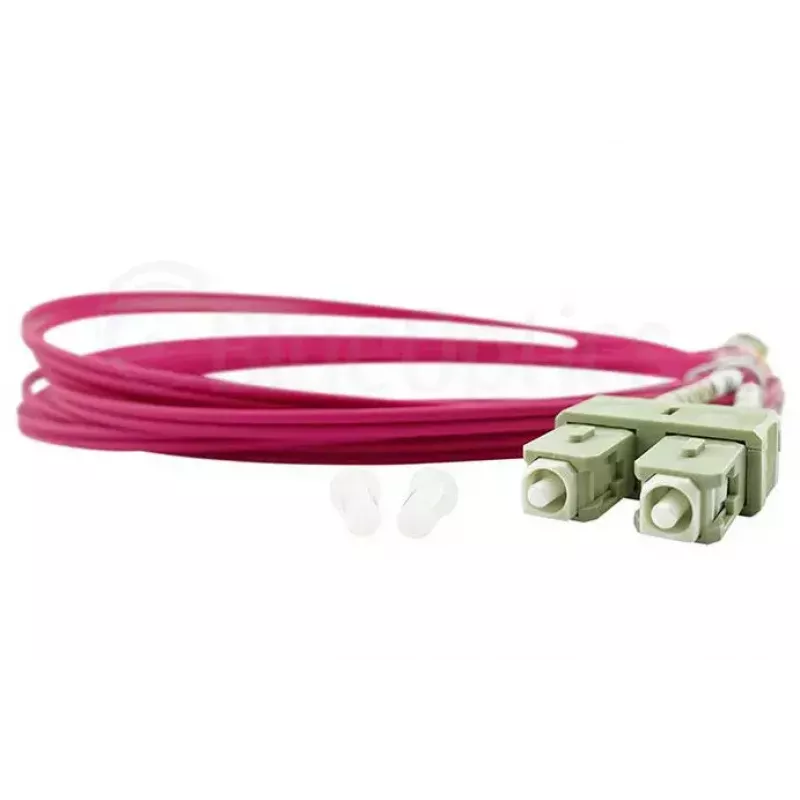

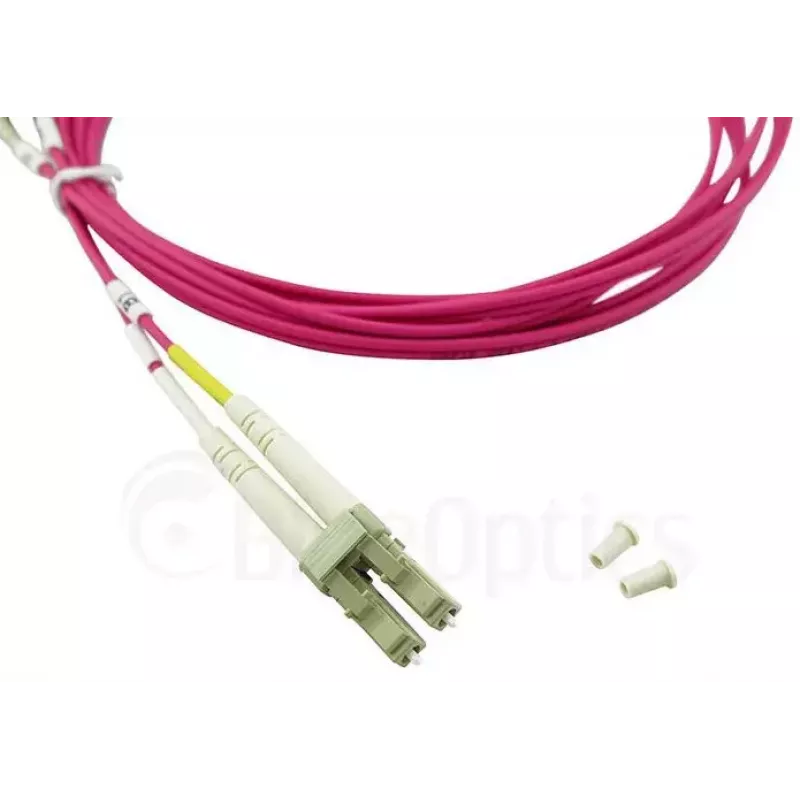

BlueOptics SFP3132FU1MK InfiniBand-glasvezelkabel 1 m LC SC

BlueOptics SFP3132FU1MK is a 1 meter duplex fiber optic patch cord with LC/UPC to SC/UPC connectors and laser-optimized multi-mode OM4 fiber (G50/125 µm) in magenta. The cable is intended for 850 nm transmission and supports full-duplex connections between patch panels, transceivers or other optical devices. The jacket is flame-retardant LSZH to reduce smoke and avoid halogen release in case of fire.

Advantages

The OM4 multimode fiber provides low attenuation (2.5 dB/km) and high return loss; connector end-face polishing (UPC or 8° APC) can further improve return loss. Constructed with branded fibers and high-quality connectors, the cord uses zirconia ceramic ferrules and is designed for long lifetime and reliable performance. Each assembly is tested with interferometer and OTDR and delivered with a measurement protocol for insertion loss and return loss. The product complies with Telcordia GR-326-Core and common IEC and RoHS standards.

Suitable for

Key specifications

How to use

Uncoil the cable carefully and connect the LC duplex end to the LC ports and the SC duplex end to the SC ports on patch panels or transceivers, ensuring correct polarity for duplex links. Avoid sharp bends, secure the cable to prevent strain on connectors, and follow standard connector cleaning procedures before mating to ensure low insertion loss.

Recommendations

Store and route the cable in accordance with the specified minimum bend radius, clean connector end-faces with appropriate cleaning tools before installation, and request custom lengths if a non-standard cable length is required.
