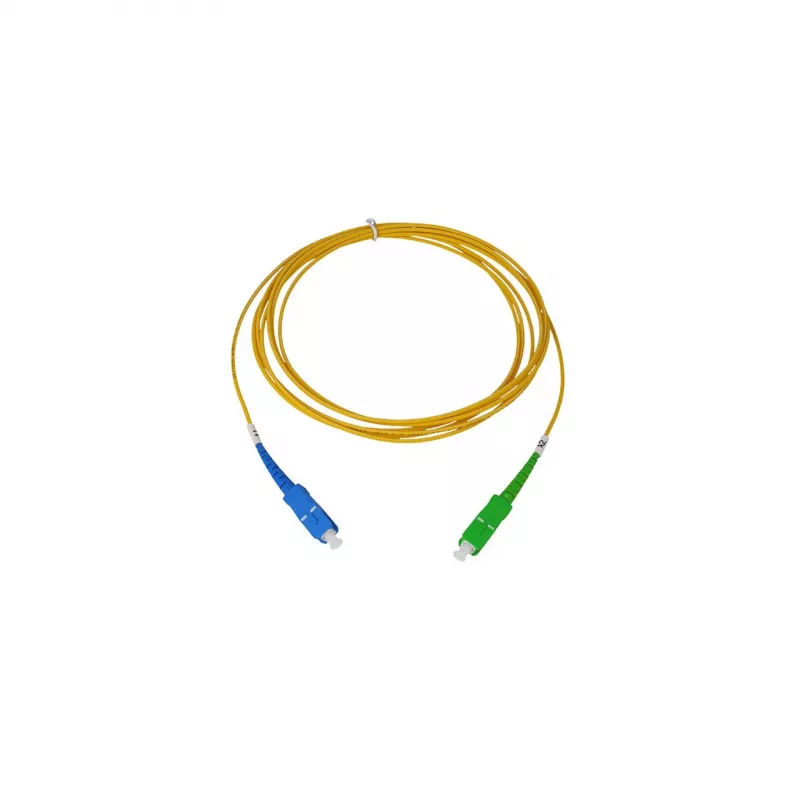

BlueOptics simplex glasvezel-patchkabel SC-UPC/SC-APC singlemode OS2 9/125µm 50m LSZH blauw/groen

The BlueOptics SFP2222BU50MS is a high-quality simplex fibre optic patch cable designed for reliable single-mode connections. Featuring SC/UPC to SC/APC connectors, this 50-metre cable ensures low insertion loss and high return loss, making it ideal for demanding network environments. The LSZH (Low Smoke Zero Halogen) jacket in blue/green provides safety and easy identification.

Advantages

This cable offers excellent signal integrity with typical insertion loss ≤0.3 dB and high return loss (≥50 dB for SC/UPC, ≥60 dB for SC/APC). The 9/125 µm core/cladding ensures compatibility with standard single-mode equipment. Its robust construction with a 3.0 mm cable diameter and minimum bend radius of 30 mm (dynamic) allows flexible installation.

Suitable for

• Data centres requiring high-performance fibre connections
• Telecommunications networks
• FTTx (Fibre to the x) deployments
• Local Area Networks (LAN) with single-mode infrastructure

Key specifications

• Cable Type: Fibre Optic Patch Cable, Simplex
• Fibre Type: Single Mode (OS2), 9/125 µm
• Connectors: SC/UPC to SC/APC
• Length: 50 metres
• Jacket: LSZH, Blue/Green
• Insertion Loss: ≤0.3 dB typical
• Return Loss: ≥50 dB (SC/UPC), ≥60 dB (SC/APC)
• Operating Wavelengths: 1310 nm, 1550 nm
• Attenuation: ≤0.35 dB/km @1310nm, ≤0.25 dB/km @1550nm
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard SC/UPC and SC/APC ports. Store in a clean, dry environment.
