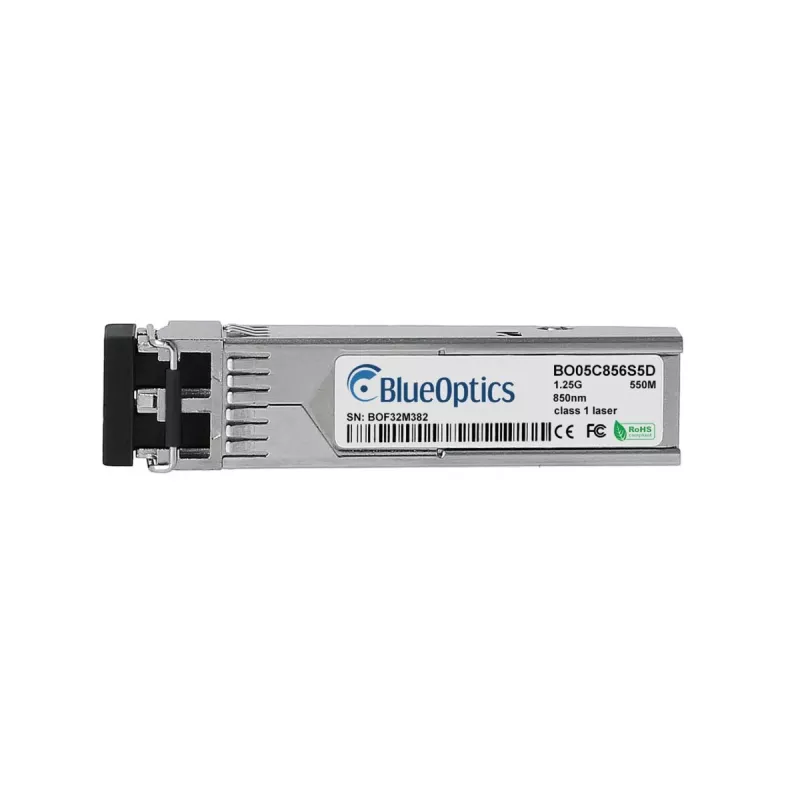

BlueOptics TP-Link ISM311LM BO05C856S5D SFP-transceiver, 1000BASE-SX, multimode vezel, 850nm, 550m

The BlueOptics BO05C856S5D SFP transceiver is a high-performance, hot-pluggable module designed for Gigabit Ethernet applications. It is fully compatible with TP-Link ISM311LM and other MSA-compliant SFP ports, ensuring seamless integration into existing network infrastructures. This transceiver operates at 1000BASE-SX standard over multimode fiber (MMF) with a wavelength of 850nm, supporting distances up to 550m.

Advantages

This SFP module offers reliable and cost-effective connectivity for data center interconnects and enterprise networking. With Digital Diagnostic Monitoring (DDM/DOM) support, it enables real-time monitoring of optical parameters for proactive network management. Its low power consumption (<1.0W) and hot-swappable design minimize downtime and simplify maintenance.

Suitable for

• Gigabit Ethernet networks requiring 1000BASE-SX connectivity
• Data center interconnects and enterprise networking
• Upgrading or expanding existing fiber optic infrastructure
• Applications needing reliable multimode fiber transmission up to 550m

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Standard: 1000BASE-SX
• Wavelength: 850 nm
• Fiber Type: Multimode Fiber (MMF)
• Max Distance: 550 m
• Connector: LC Duplex
• DDM/DOM: Yes
• Hot-Swappable: Yes
• Compatibility: TP-Link ISM311LM, MSA compliant
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1.0 W
• Laser Type: VCSEL
• Receiver Type: PIN
• Compliance: MSA, RoHS

Recommendations

For optimal performance, use with duplex LC multimode fiber cables. Ensure the host device supports SFP modules and is configured for 1000BASE-SX. This transceiver is ideal for short-to-medium range connections within a building or campus network.
