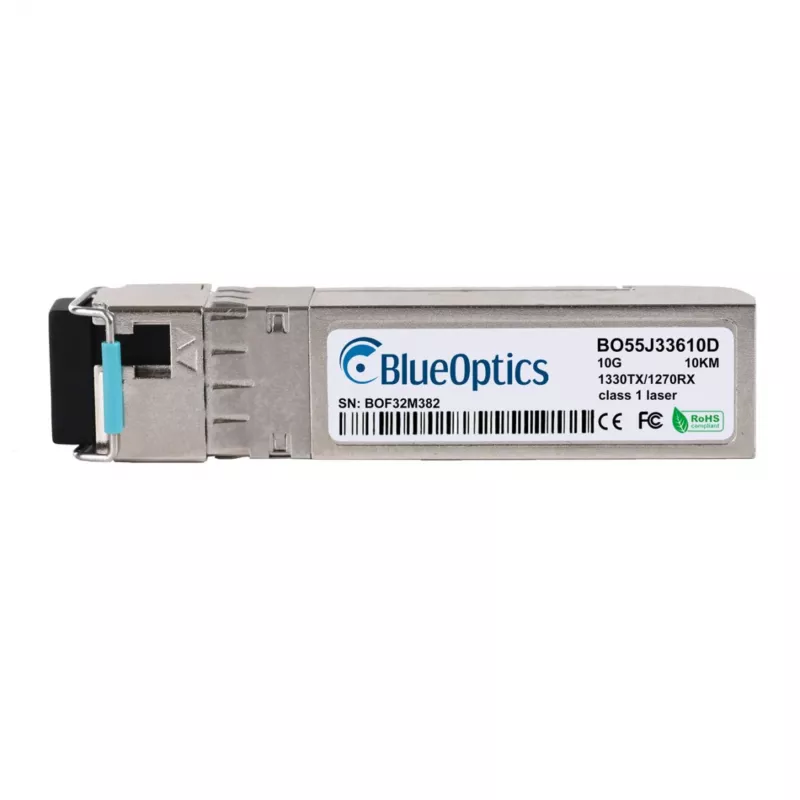

BlueOptics TP-Link SFP-10G-BX-D compatibele SFP+ module BO55J33610D

The BlueOptics BO55J33610D is a high-performance SFP+ transceiver module designed for 10 Gigabit Ethernet networks. It is fully compatible with TP-Link SFP-10G-BX-D equipment, ensuring seamless integration and reliable data transmission over single-mode fiber at distances up to 10 km.

Advantages

This BiDi (Bi-Directional) transceiver uses a single LC simplex connector, reducing fiber infrastructure costs. With low power consumption under 1.0 W and support for Digital Diagnostic Monitoring (DDM/DOM), it provides real-time performance monitoring and efficient operation.

Suitable for

• 10 Gigabit Ethernet networks requiring long-range single-mode fiber connections
• Data centers, enterprise networks, and telecommunications
• Upgrading existing TP-Link SFP+ compatible systems

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gigabit Ethernet (10GbE)
• Protocol: 10GBASE-BX-D
• Wavelength (Transmit): 1330 nm
• Wavelength (Receive): 1270 nm
• Max Distance: 10 km (6.2 miles)
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Simplex
• DDM/DOM Support: Yes
• Bi-Directional (BiDi): Yes
• Compatibility: TP-Link SFP-10G-BX-D Compatible
• Operating Temperature: 0°C to 70°C (Commercial)
• Power Consumption: < 1.0 W
• Laser Type: DFB (Distributed Feedback Laser)
• Receiver Type: PIN Photodiode
• Hot-Pluggable: Yes
• Compliance: MSA Compliant
• Voltage: 3.3 V

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper handling of the LC connector. This module is hot-pluggable and supports MSA standards for broad compatibility.
