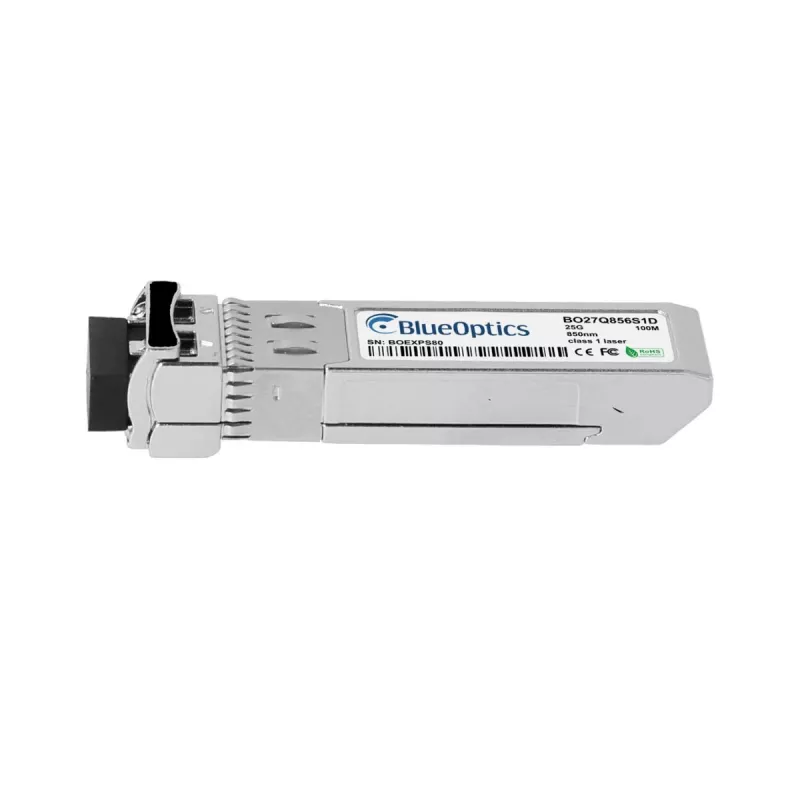

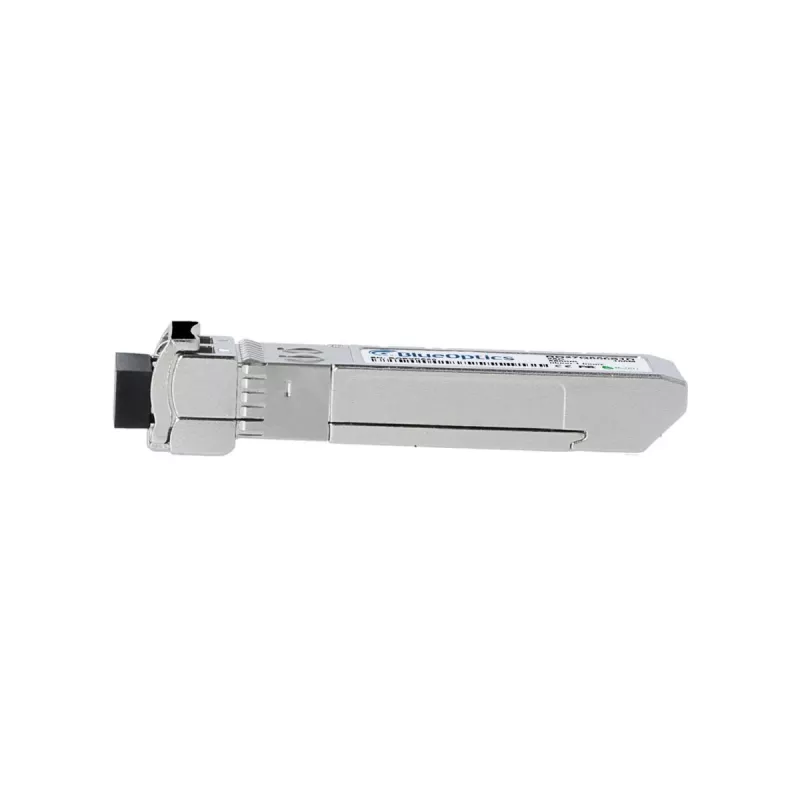

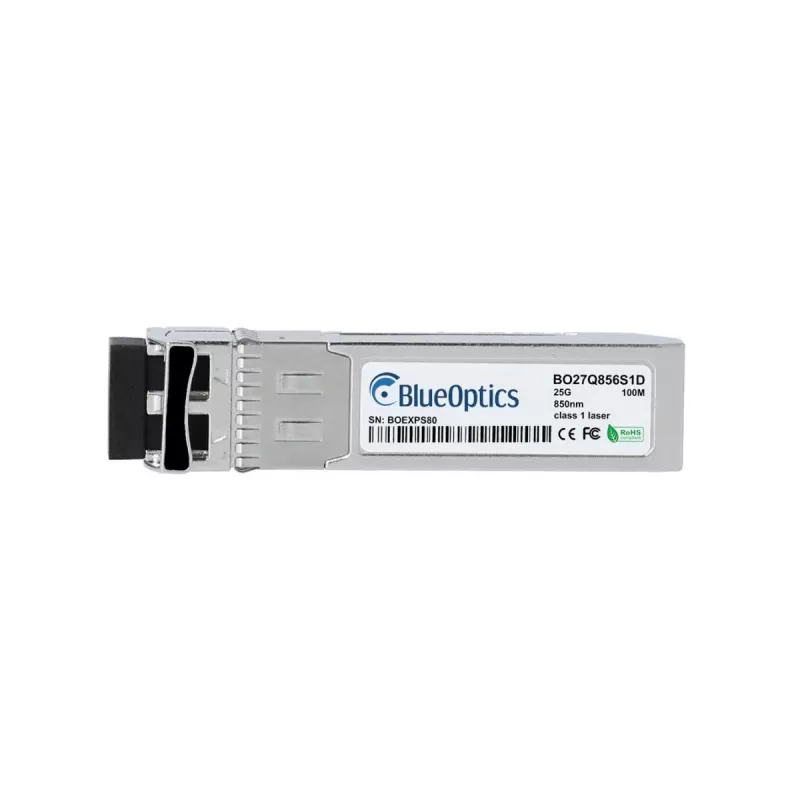

BlueOptics TP-Link SM6110-SR Compatibele SFP28-transceiver, 25GBASE-SR, multimode vezel, 850nm, 100m

The BlueOptics SM6110-SR compatible SFP28 transceiver (BO27Q856S1D) is a high-performance, cost-effective solution designed for 25 Gigabit Ethernet networks. It is fully compatible with TP-Link SM6110-SR switches and other MSA-compliant equipment, delivering reliable connectivity for data center and enterprise applications.

Advantages

This transceiver offers seamless interoperability with TP-Link SM6110-SR devices, ensuring plug-and-play installation. It supports hot-swappable operation, minimizing network downtime during upgrades or maintenance. With low power consumption under 1.0 W, it helps reduce operational costs and heat generation in dense deployments.

Suitable for

• Data center interconnects requiring 25 Gbps links
• Enterprise network backbone and top-of-rack switching
• High-speed storage area networks (SAN)
• Cloud computing and virtualization environments

Key specifications

• Form Factor: SFP28
• Data Rate: 25 Gbps
• Ethernet Standard: 25GBASE-SR
• Wavelength: 850 nm
• Fiber Type: Multimode (MMF)
• Max Distance: 100 m on OM4 MMF, 70 m on OM3 MMF

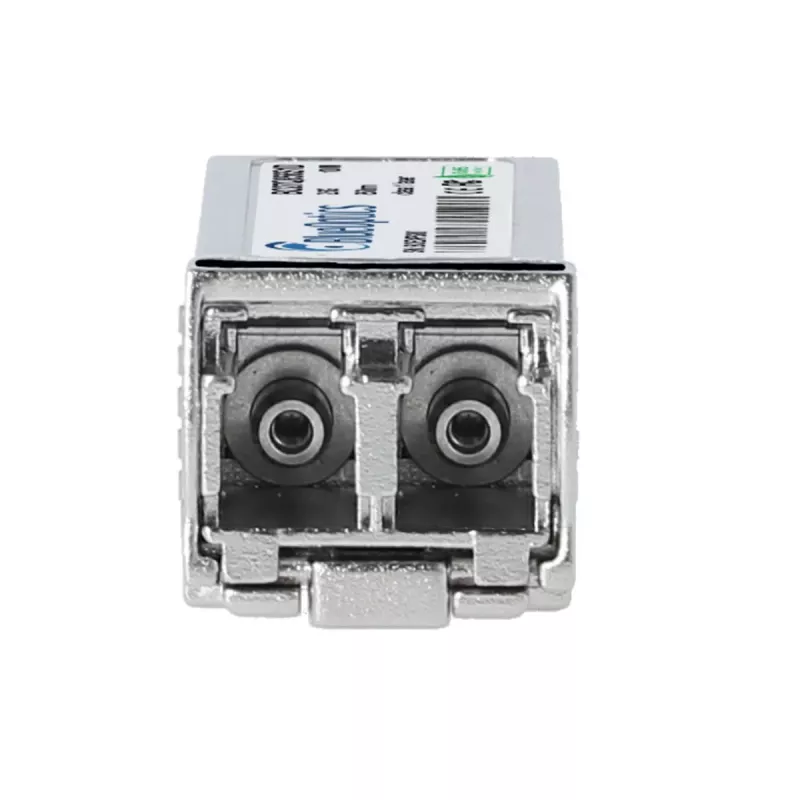

• Connector: LC Duplex
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1.0 W
• Hot-Swappable: Yes
• MSA Compliant: Yes
• Laser Type: VCSEL
• Power Supply: 3.3 V

Recommendations

For optimal performance, use with OM4 multimode fiber cables and ensure your switch supports SFP28 modules. This transceiver is ideal for upgrading existing 10 GbE networks to 25 GbE without replacing the entire infrastructure.
