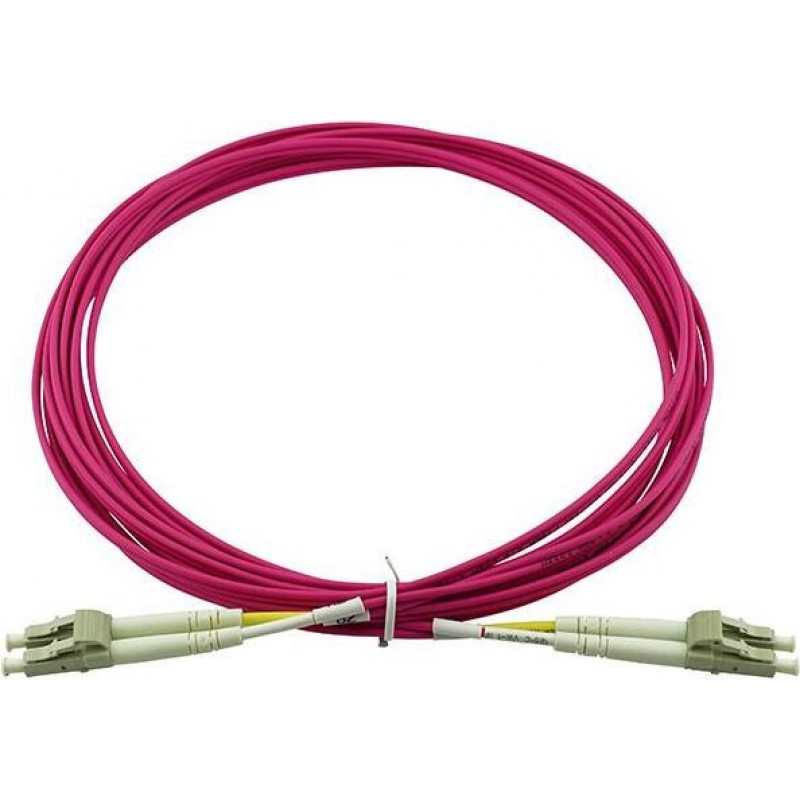

BlueOptics Ubiquiti UACC-OFC-M2-LULU-50M LC-LC multimode-OM4-patchkabel 50 meter

High-performance fiber optic patch cable engineered for 50-meter multimode OM4 connectivity, delivering reliable 10/40/100 Gigabit Ethernet transmission with LC-to-LC duplex connectors. Ideal for data centers, enterprise backbones, and storage area networks requiring low insertion loss and high bandwidth over extended distances.

Advantages

OM4 laser-optimized fiber supports 40/100G Ethernet up to 150 meters and 10G up to 550 meters, ensuring future-proof infrastructure. The LSZH jacket emits low smoke and zero halogen, critical for safety in enclosed spaces. Precision-polished PC connectors minimize insertion loss (≤0.3 dB) and back reflection (≥30 dB), maintaining signal integrity. Aqua-colored jacket provides instant identification of OM4 multimode cabling.

Suitable for

• Ubiquiti UACC-OFC-M2 series devices and compatible SFP+/QSFP+ transceivers
• High-density data center interconnects and backbone cabling
• SAN, NAS, and server-to-switch links in enterprise networks
• Telecom rooms and campus networks requiring long-reach multimode fiber

Key specifications

• Cable type: Fiber optic patch cable, multimode OM4
• Connectors: LC to LC, duplex, PC polish
• Length: 50 meters
• Core/cladding diameter: 50/125 µm
• Jacket material: LSZH (Low Smoke Zero Halogen), aqua color
• Insertion loss: ≤ 0.3 dB typical
• Return loss: ≥ 30 dB typical
• Supported wavelengths: 850 nm and 1300 nm
• Bandwidth (OFL): 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to 70°C

Recommendations

Pair with Ubiquiti UACC-OM-SFP+ or QSFP+ multimode transceivers for optimal performance. Always inspect and clean connectors before installation to maintain low loss. Use cable management panels to protect bend radius and ensure long-term reliability.
