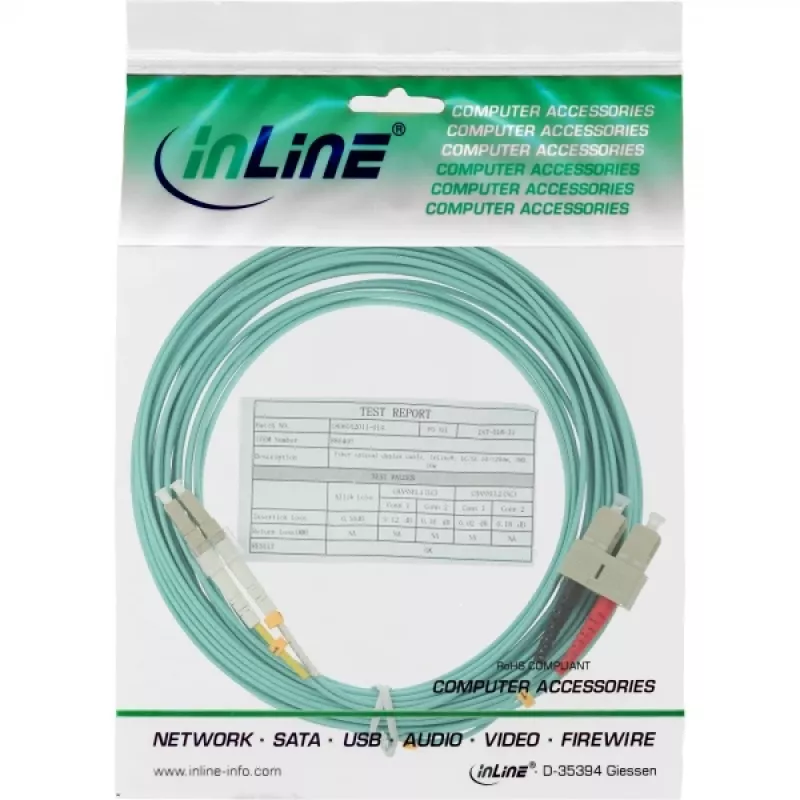

Glasvezel-duplexkabel LC/SC InLine 88641O 50/125µm OM3 1m

The InLine Fiber Optical Duplex Cable LC/SC 50/125µm OM3 1m is a single-meter multimode fiber patch cable designed for reliable, high-speed data transmission in modern network environments. With LC connector on one end and SC on the other, and a 50/125 µm core/cladding configuration compliant with OM3 multimode standards, the cable supports full-duplex links and can be used to interconnect transceivers, switches and patch panels in data centers and office networks.

Advantages

This fiber optical duplex cable offers low-attenuation multimode performance and standardized OM3 bandwidth for short to medium distance links. The LC and SC connectors provide compatibility with a wide range of devices and patch panels, while the duplex construction allows simultaneous transmit and receive channels. The 1 m length is suitable for neat rack and cabinet management and reduces signal loss compared with longer runs.

Suitable for

• Patch connections between switches, transceivers and optical patch panels
• Data center server and rack interconnects
• Office backbone and local multimode fiber links
• Connections requiring LC to SC interface conversion

Key specifications

• Fiber type: multimode OM3
• Core/cladding diameter: 50/125 µm

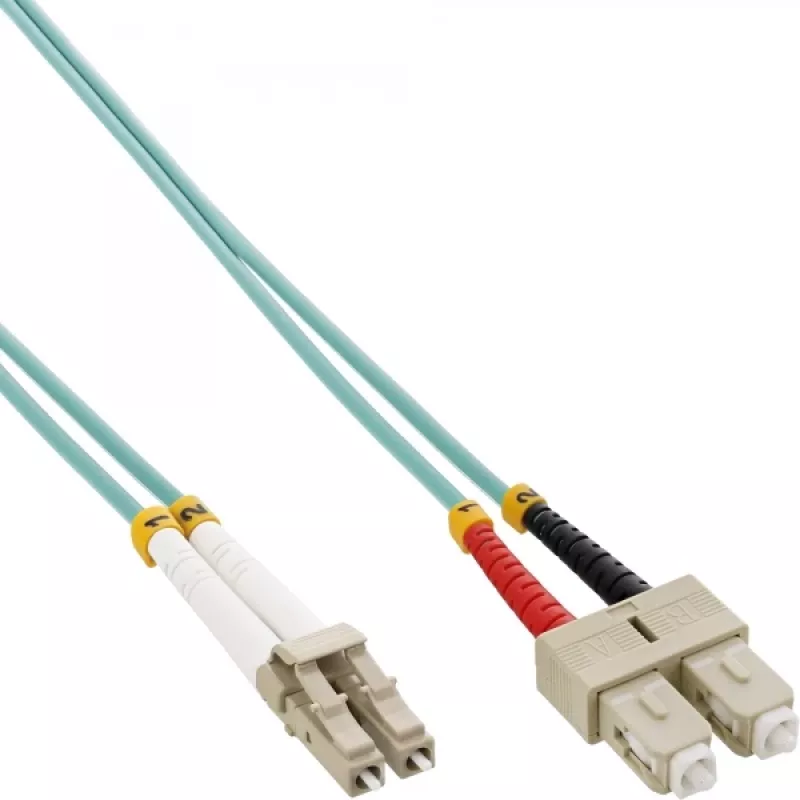

• Connectors: LC (one end) to SC (other end) in duplex configuration
• Length: 1 m
• Mode: full duplex
• Typical applications: multimode fiber data transmission for short to medium distances

How to use

Install the cable by inserting the LC connector into the LC port of the device and the SC connector into the corresponding SC receptacle, ensuring correct alignment and secure seating. Use appropriate cable management in racks or patch panels to avoid excessive bending or stress; maintain the manufacturer’s recommended minimum bend radius for multimode fiber. Verify link status with network transceivers and perform optical loss testing if required to confirm adequate signal levels.

Recommendations

Handle connectors with clean hands and protect connector endfaces from dust and contamination using dust caps when not connected. Avoid tight bends and physical strain on the cable, and keep the length appropriate to the installation to minimize insertion loss. For critical links, perform optical insertion loss and return loss measurements and follow standard multimode fiber installation practices.
