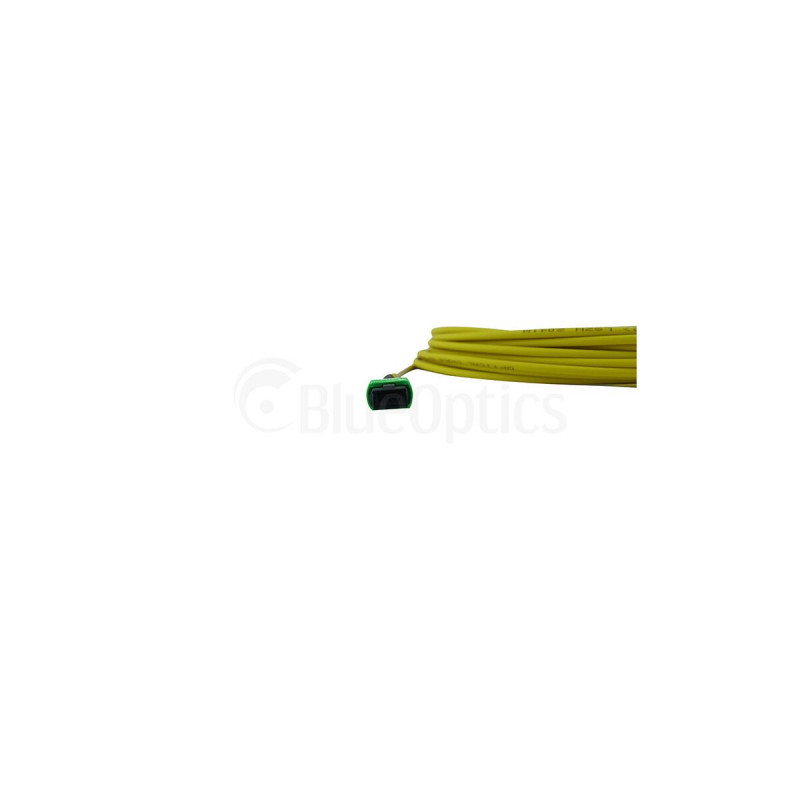

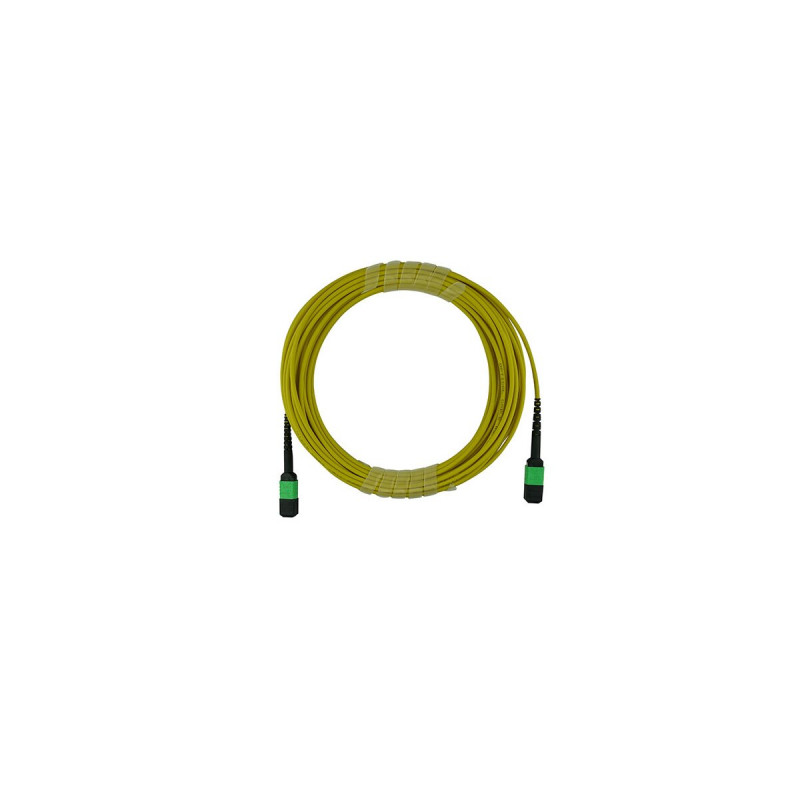

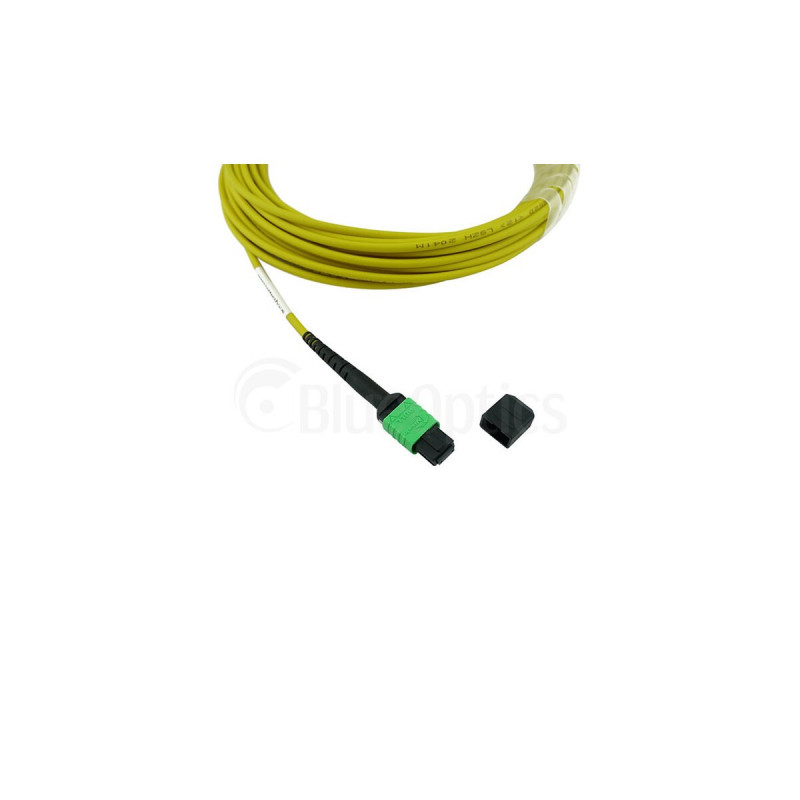

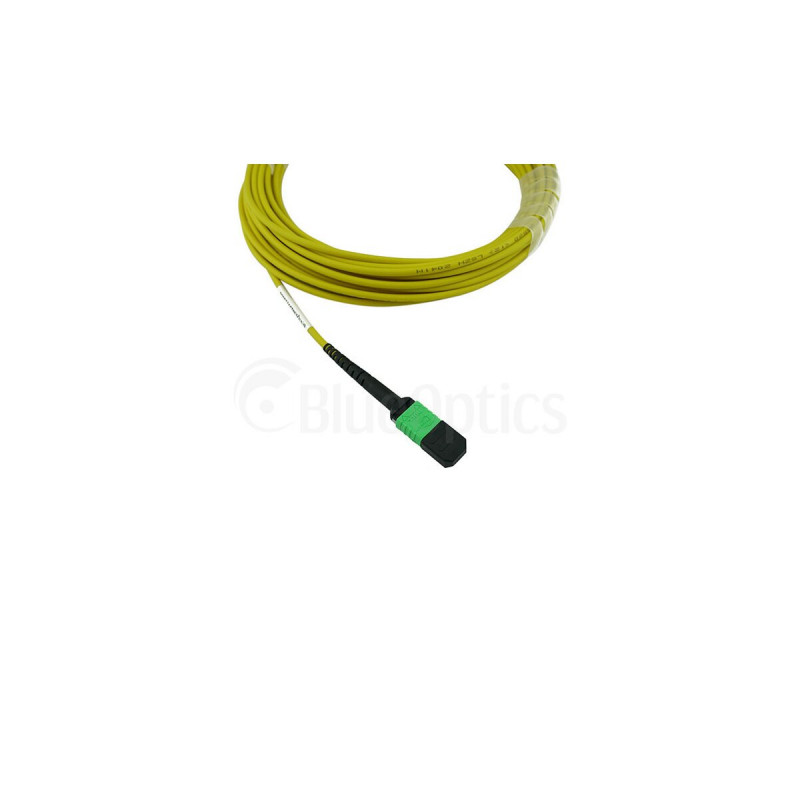

BlueOptics Ubiquiti UACC-OFC-SA-MPMP-1M MPO-MPO singlemode OS2-patchkabel 1 meter

This fiber optic patch cable delivers high-density MPO connectivity for 40G/100G Ethernet and data center applications. With single-mode OS2 fiber and 12 fibers in a single MPO connector, it provides a compact, reliable link for backbone and high-speed interconnects.

Advantages

Low insertion loss (≤0.35 dB) and high return loss (≥50 dB) ensure excellent signal integrity. The LSZH jacket is flame-retardant and low-smoke, improving safety in dense environments. Type B polarity (key-up to key-down) simplifies deployment in standard MPO-based infrastructures.

Suitable for

• Data center spine-leaf architectures
• Telecommunications central offices
• High-density 40G/100G Ethernet links
• MPO-based fiber distribution systems
• Ubiquiti UACC-OFC-SA series equipment

Key specifications

• Connector A: MPO (Multi-fiber Push On)
• Connector B: MPO (Multi-fiber Push On)
• Fiber type: Single-mode OS2 (ITU-T G.652.D)
• Fiber count: 12 fibers
• Cable length: 1 meter
• Jacket color: Yellow
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Polarity: Type B (Key-Up to Key-Down)
• Insertion loss: ≤ 0.35 dB typical
• Return loss: ≥ 50 dB typical
• Minimum bend radius: 10 mm static, 30 mm dynamic
• Operating temperature: -20°C to +70°C
• Standards: IEC 61754-7, TIA/EIA-604-5, RoHS

Recommendations

For optimal performance, ensure both ends are clean before mating and use MPO cleaning tools. This cable is ideal for connecting MPO cassettes, transceivers, or patch panels in high-density fiber environments.
