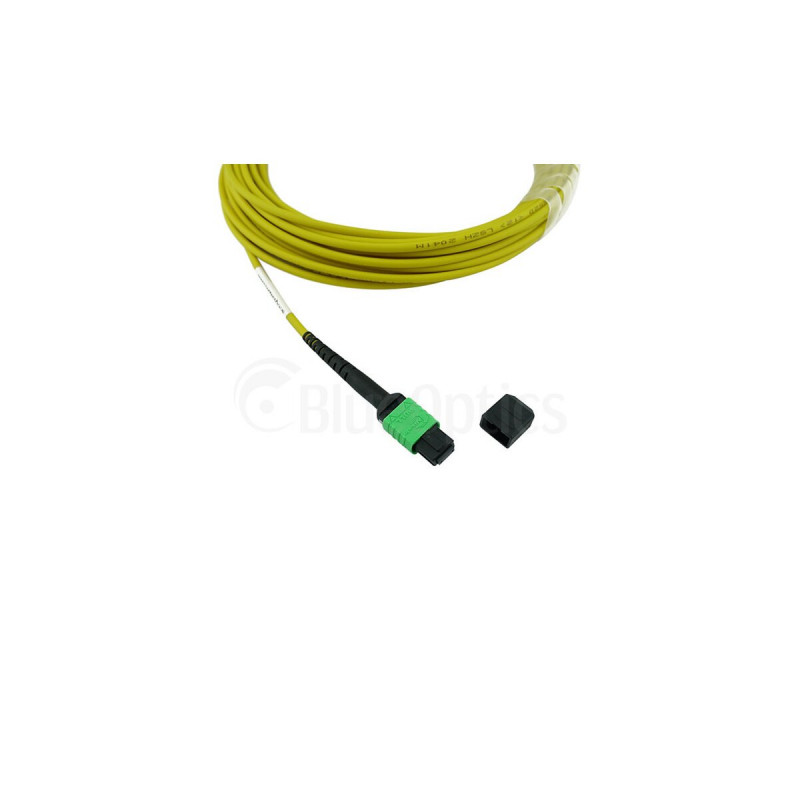

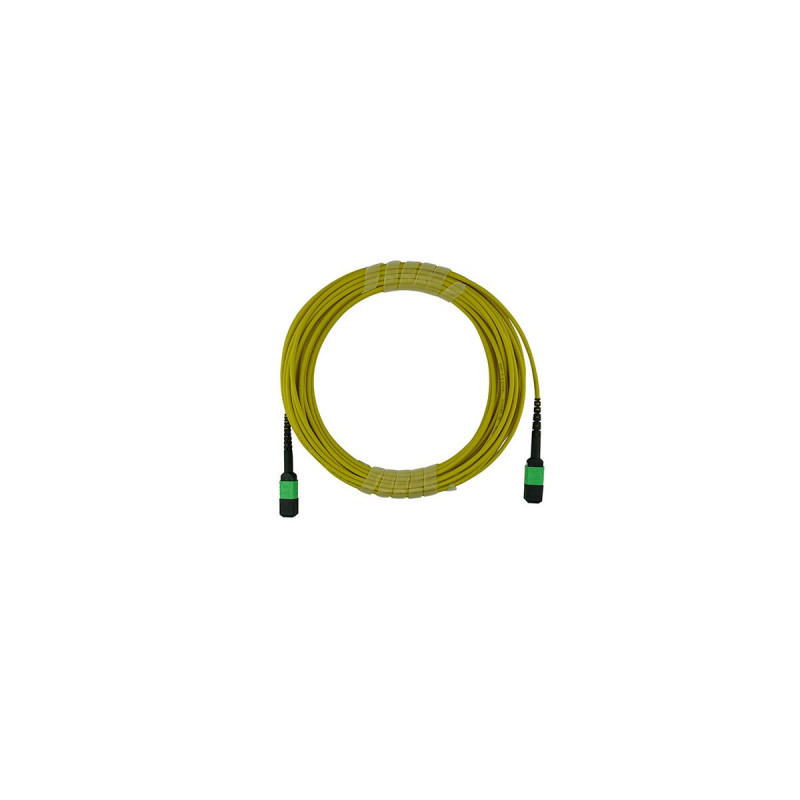

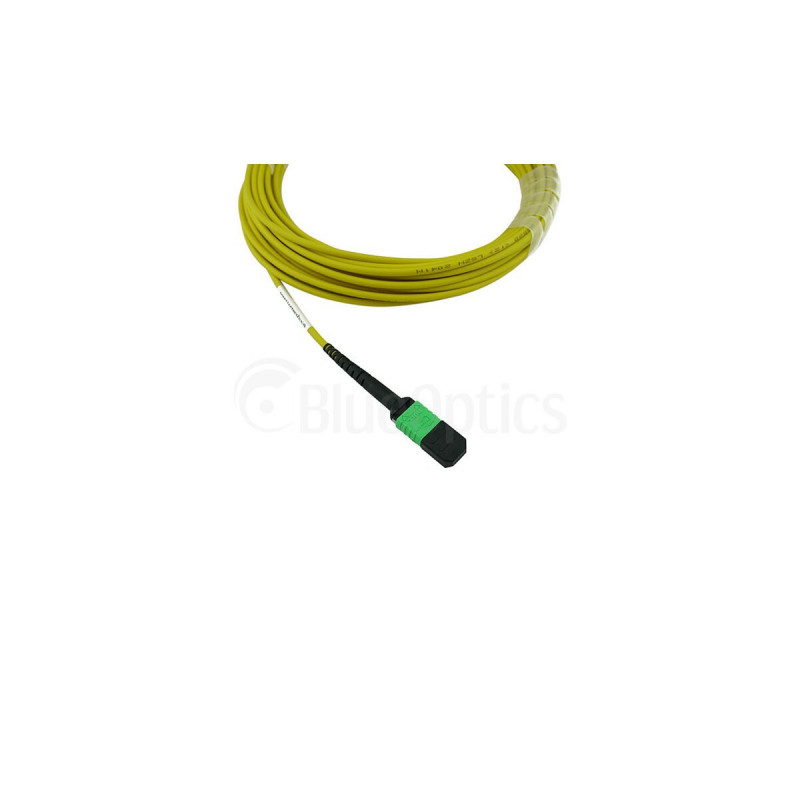

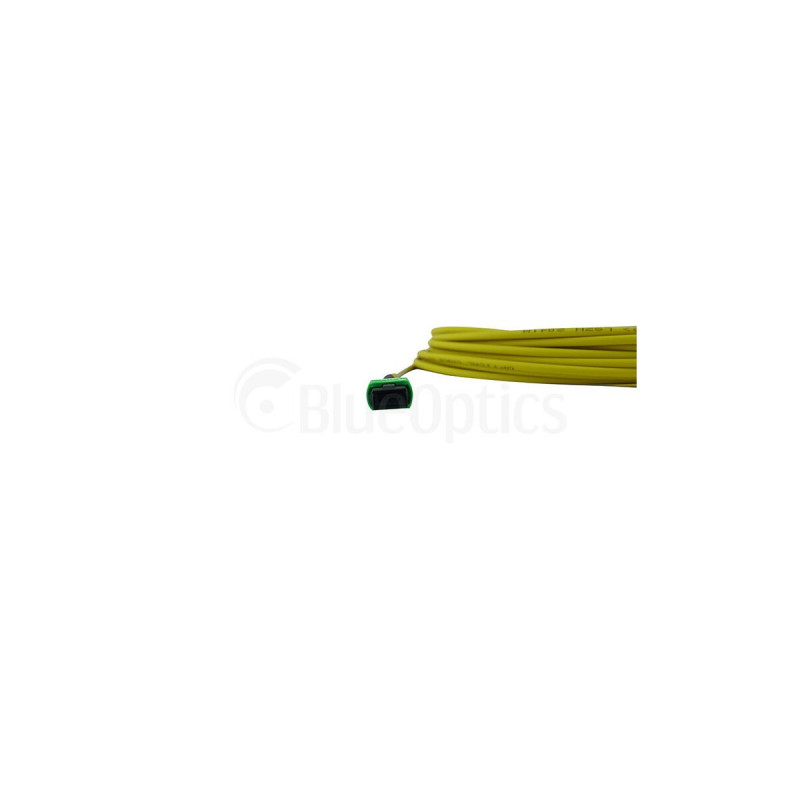

BlueOptics Ubiquiti UACC-OFC-SA-MPMP-30M MPO-MPO singlemode OS2-patchkabel 30 meter

High-density fiber infrastructures demand reliable, low-loss connections that can handle modern data rates without breaking the bank. The BlueOptics UACC-OFC-SA-MPMP-30M MPO-MPO Single-mode OS2 Patch Cable solves this challenge by providing a 30-meter, 12-fiber trunk link that streamlines deployment in data centers, enterprise backbones, and Ubiquiti UniFi fiber environments. Pre-terminated MPO connectors on both ends eliminate field splicing, while the OS2 single-mode fiber ensures compatibility with long-reach optics and future 40G/100G upgrades.

Who is it for

This cable is built for network engineers, data center technicians, and IT integrators who need a dependable, plug-and-play MPO trunk for high-density fiber patching. It is particularly suited for Ubiquiti UniFi Aggregation Switch and UniFi Switch Enterprise XG 24 deployments, as well as any MPO-compatible equipment requiring a Type B polarity link. Whether you are connecting leaf-spine switches, linking fiber distribution panels, or extending backbone connectivity, this cable delivers consistent performance.

Main features

• 30-meter length with 12-fiber MPO female connectors on both ends
• Single-mode OS2 fiber (ITU-T G.657.A1/A2 compatible) for long-distance and high-speed transmission
• Type B polarity (key-up to key-up) with flipped pairs for straightforward system design
• Low insertion loss: ≤ 0.35 dB per mated pair, ensuring signal integrity
• High return loss: ≥ 50 dB, minimizing reflections
• LSZH (Low Smoke Zero Halogen) yellow jacket for safety in enclosed spaces
• 3.0 mm cable diameter for high-density routing and improved airflow
• Operating temperature range: -20°C to 70°C, suitable for most data center environments

Specifications

• Brand: BlueOptics
• Model: UACC-OFC-SA-MPMP-30M-BO
• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode (SM)
• Fiber Class: OS2
• Connector Type A: MPO (Multi-fiber Push On)
• Connector Type B: MPO (Multi-fiber Push On)
• Cable Length: 30 meters (98.4 ft)
• Number of Fibers: 12
• MPO Polarity: Type B (Key-up to Key-up, Flipped Pairs)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss (Max): ≤ 0.35 dB
• Return Loss (Min): ≥ 50 dB
• Operating Temperature: -20°C to 70°C (-4°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Cable Diameter: 3.0 mm
• Application: High-density data center interconnects, enterprise backbone, Ubiquiti UniFi fiber deployments
• Compatibility: Ubiquiti UniFi Aggregation Switch, UniFi Switch Enterprise XG 24, and other MPO-compatible fiber equipment

Tips

When planning your MPO trunk, verify the polarity method of your transceivers and cassettes. Type B cables are commonly used with parallel optics and many Ubiquiti devices. Always inspect and clean MPO connectors before mating to maintain low insertion loss. Use cable management panels to protect the 3.0 mm jacket and maintain bend radius, especially in high-density racks.
