BNC-contactdoos Kindermann 7444000537

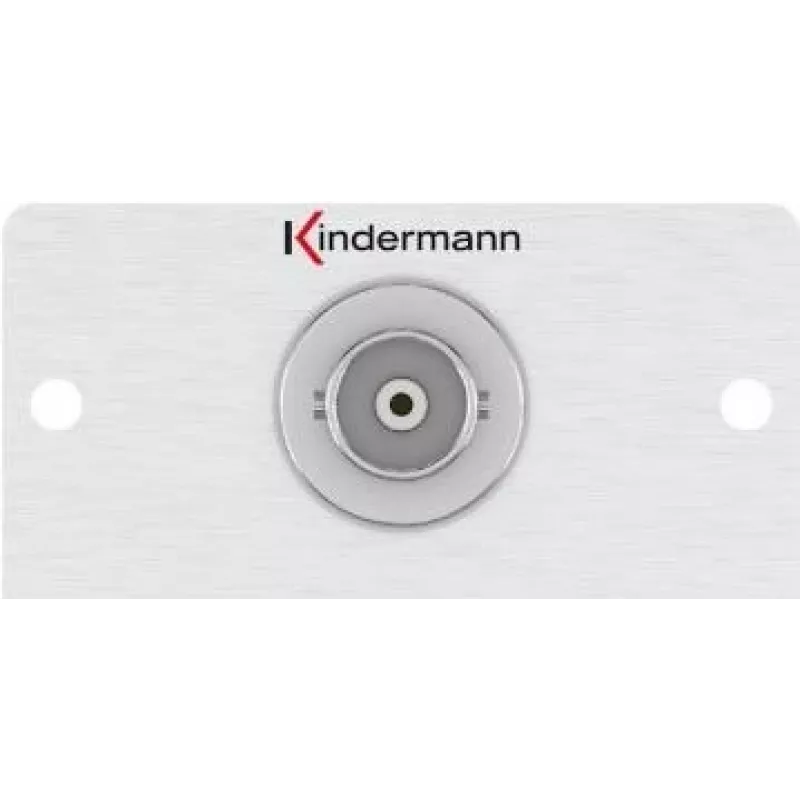

The Kindermann 7444000537 is a compact BNC socket outlet in anodized aluminium, designed for reliable AV connectivity in professional and residential installations. It occupies a single module (half size) and provides a single BNC female connection in a low-profile plate with a width of 50 mm and a minimum mounting depth of 4.7 cm.

Advantages

The anodized aluminium construction offers durability and a clean appearance while the half-size plate allows installation in standard modular faceplate systems or shallow backboxes. The single BNC female connector provides a gender-changer function for straightforward signal coupling, and the compact dimensions simplify installation in confined spaces.

Suitable for

Key specifications

How to use

Mount the socket outlet into a compatible modular faceplate or half-size wall plate according to standard installation practice. Secure the plate with appropriate screws and connect the BNC cable by inserting and twisting the male BNC plug into the female connector until it locks. Ensure cable terminations are correct and test the signal after installation.

Recommendations

For optimal performance, use quality BNC cables with proper impedance matching (usually 75 Ω for video applications) and avoid excessive bending near the connector. Verify compatibility with your AV equipment before final installation.
