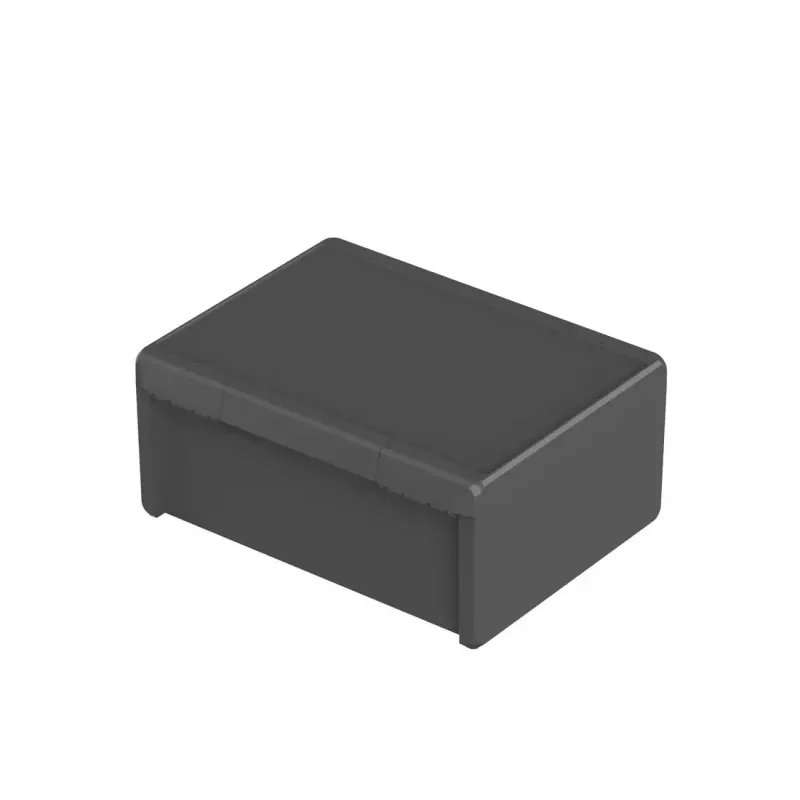

Bopla Bocube B 273616 universele behuizing, 284 x 364 x 160 mm, ABS, grafietgrijs RAL 7024 96037674

The Bopla Bocube B 273616 stands out with its hinged lid and quick-release fasteners, offering rapid access without removing screws. This universal enclosure in graphite grey (RAL 7024) is built from ABS for a robust yet lightweight housing.

Highlights

• External dimensions: 284 x 364 x 160 mm (W x L x H)
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Graphite grey, RAL 7024
• Hinged lid with quick-release fasteners
• Protection class: IP66 / IP67
• Impact resistance: IK08
• Operating temperature: -35 °C to +80 °C
• Flammability rating: UL 94 HB
• Gasket material: PUR (Polyurethane)
• Mounting: Wall mountable (with optional accessories)

In daily use

The Bocube series is designed for demanding industrial environments. The hinged lid and quick-release fasteners simplify maintenance and inspection, while the PUR gasket ensures a reliable seal against dust and water. The enclosure can be mounted on walls using optional accessories, making it suitable for control, junction, or electrical installations.

Full specifications

• Product type: Universal enclosure
• Series: Bocube
• External length: 364 mm
• External width: 284 mm
• External height: 160 mm
• Lid type: Hinged lid with quick-release fasteners
• Number of lid screws: 4

Final note

Engineered for reliability, the Bopla Bocube B 273616 combines practical design with durable materials, making it a solid choice for housing electrical and electronic components.
