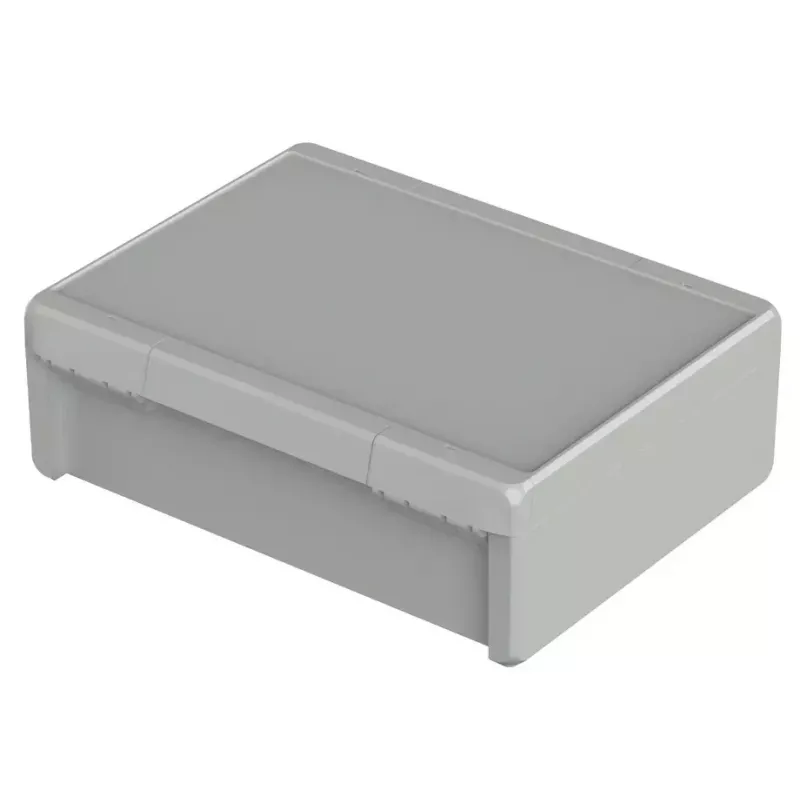

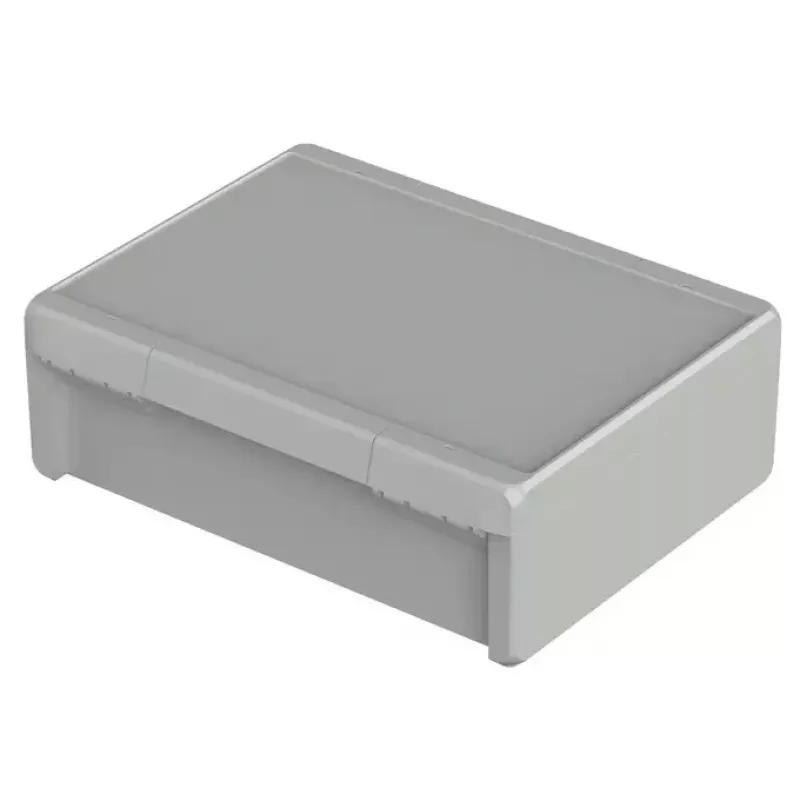

Bopla Bocube universele behuizing B 273612 ABS-7035, lichtgrijs, 364 x 284 x 120 mm 96037665

The Bopla Bocube B 273612 stands out with its hinged lid and tool-free quick-release fasteners, allowing fast access to internal components without compromising the IP66/IP67 protection. The recessed operating area in the lid provides a practical surface for membrane keypads or displays, making this enclosure suitable for demanding industrial control applications.

Highlights

• Hinged lid with quick-release fasteners for tool-free opening
• Recessed lid area for integrating control elements
• High protection rating IP66/IP67
• Impact resistance IK08
• Halogen-free ABS material

In daily use

The enclosure's light grey color (RAL 7035) integrates well into control cabinets and machine environments. Its ABS construction offers a good balance of strength and weight, while the silicone gasket ensures reliable sealing. The integrated hinges and quick-release fasteners simplify maintenance and reduce downtime.

Full specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Color: Light Grey (RAL 7035)
• External dimensions: 364 x 284 x 120 mm (L x W x H)
• Protection class: IP66 / IP67
• Impact resistance: IK08
• Lid design: Hinged lid
• Lid fastening: Quick-release fasteners (tool-free)
• Operating temperature range: -35 to +80 °C
• Flammability rating: UL 94 HB
• Gasket material: Silicone
• Mounting options: Wall mounting, Panel mounting (with accessories)
• Key features: Recessed operating area in lid, integrated hinges
• Halogen-free: Yes

Final note

The Bopla Bocube B 273612 is a robust and versatile enclosure for industrial electronics, offering high protection and convenient access.
