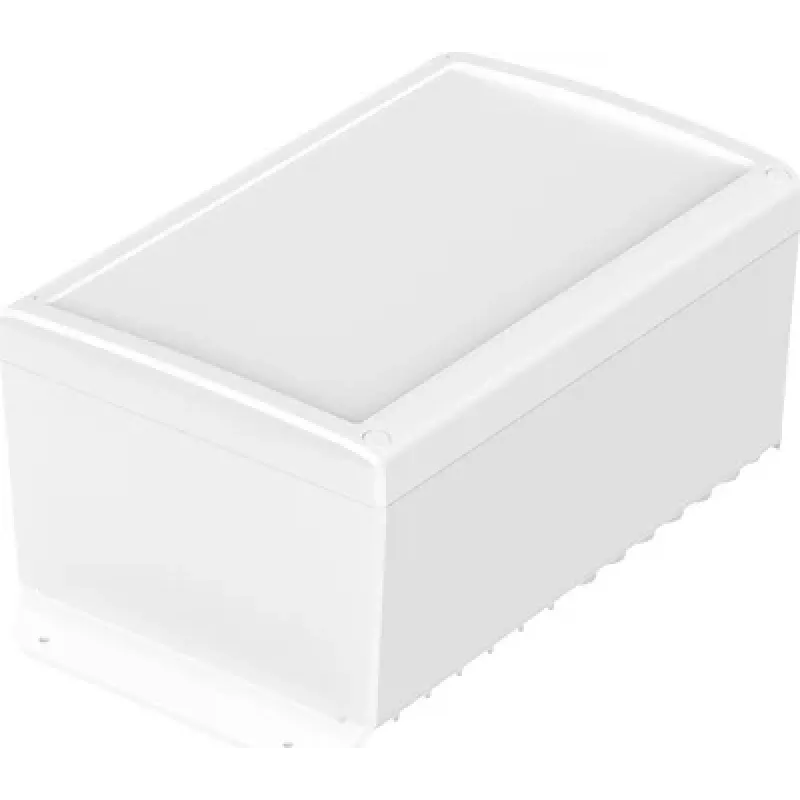

Bopla BoVersa 48198683.HMT3 industriële behuizing, aluminium, wit, 323 x 185 x 139 mm, IP65

In control rooms, machine halls and measurement stations, the Bopla BoVersa 48198683.HMT3 provides a robust housing for sensitive electronics. Its aluminium body and screwed lid keep out dust and water jets, while the powder-coated white finish blends into clean industrial environments.

Key specifications

• Material: Aluminium
• Colour: White (RAL 9002)
• External dimensions (L x W x H): 323 x 185 x 139 mm
• Protection class: IP65
• Impact resistance: IK08
• Lid fastening: Screwed lid
• Gasket material: Polyurethane (PUR)
• Surface finish: Powder-coated
• Mounting options: Wall mounting, desktop use
• Operating temperature range: -40°C to +100°C
• Internal mounting: Integrated mounting bosses for PCBs/mounting plates
• RoHS compliant: Yes

Why choose it

The BoVersa series is designed for demanding industrial electronics. The aluminium construction provides excellent heat dissipation and mechanical stability, while the IP65 rating ensures protection against dust and low-pressure water jets from any direction. The included polyurethane gasket maintains a reliable seal over a wide temperature range.

Ideal use cases

• Industrial control systems
• Measurement technology
• Outdoor electronics enclosures
• Machine building

Good to know

The enclosure includes integrated mounting bosses for easy installation of PCBs or mounting plates. It is supplied as a single piece.
