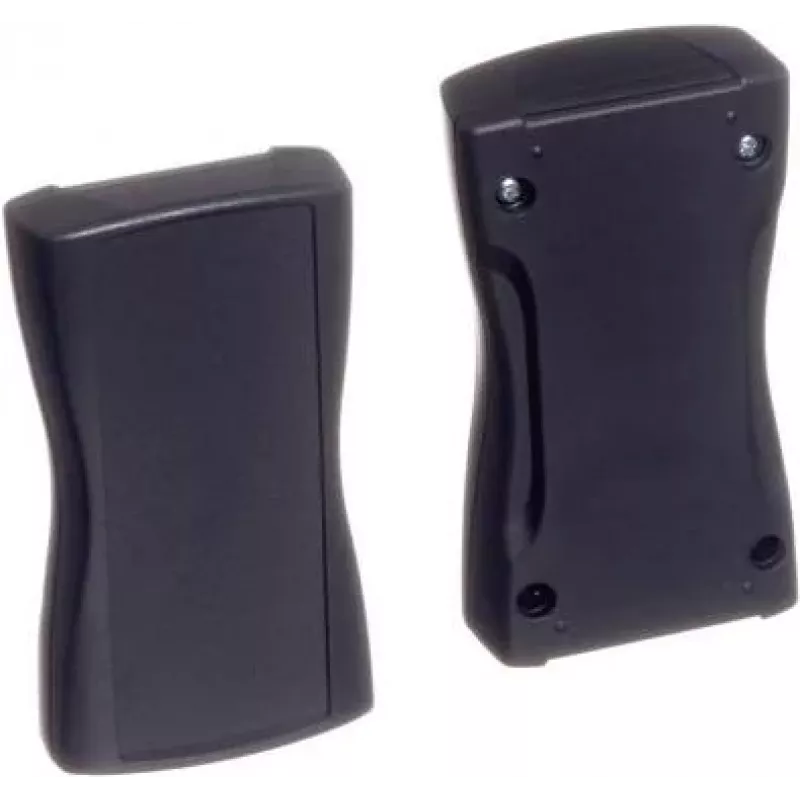

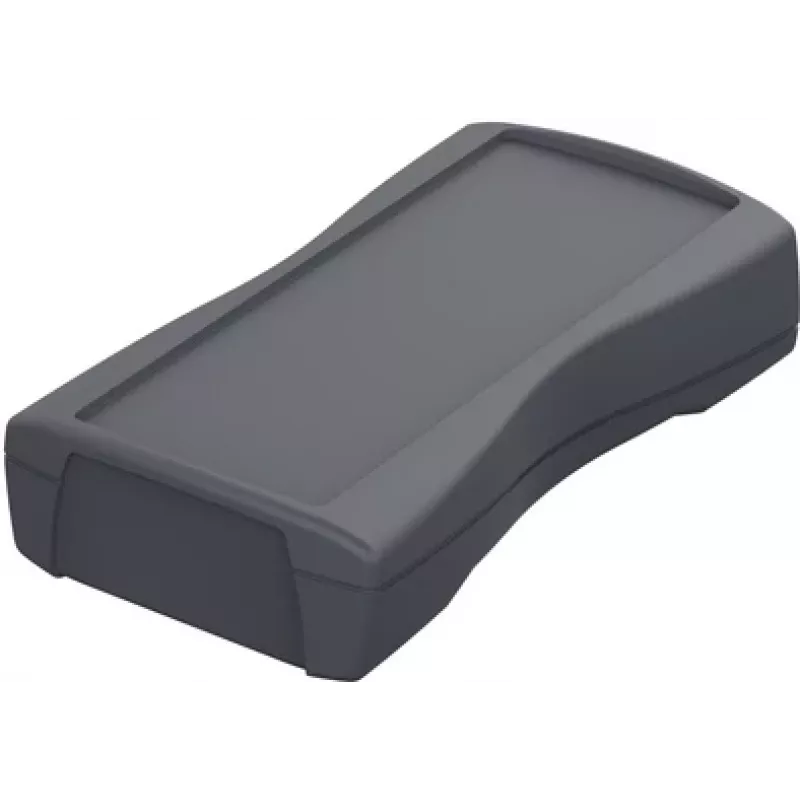

BOPLA BS 400 F handbehuizing, grafietgrijs, 119,3 x 64,9 x 26,5 mm, ABS 82400124.MT 2

When electronics need a robust, ergonomic housing that protects sensitive components while allowing easy access, the BOPLA BS 400 F handheld enclosure provides a reliable solution. This graphite grey enclosure is crafted from ABS plastic, offering a balance of impact resistance and lightweight construction suitable for a wide range of handheld devices.

Who is it for

Engineers, product developers, and hobbyists designing portable electronic devices such as remote controls, measurement instruments, or communication tools will find this enclosure ideal. Its ergonomic shape and recessed area for a membrane keypad or display make it perfect for applications requiring user interaction.

Main features

• Durable ABS plastic body in graphite grey with a matt finish
• External dimensions: 119.3 mm length, 64.9 mm width, 26.5 mm height
• Two-part construction with screw-on lid for secure closure
• Internal PCB mounting bosses for easy board installation
• Recessed area on top for membrane keypad or display integration
• UL 94 V-0 flammability rating
• Operating temperature range: -20 °C to +80 °C
• IP40 protection class

Specifications

• Enclosure type: Handheld enclosure
• Material: ABS plastic
• Colour: Graphite grey
• External dimensions (L x W x H): 119.3 x 64.9 x 26.5 mm
• Lid fastening: 2 screws
• Number of enclosure parts: 2 (base and lid)
• Flammability rating: UL 94 V-0
• Operating temperature: -20 °C to +80 °C
• Protection class: IP40
• Series: BS

Tips

When designing your PCB, ensure the mounting holes align with the internal bosses. The recessed area is suitable for custom membrane keypads or small displays, allowing for a professional, integrated look.
