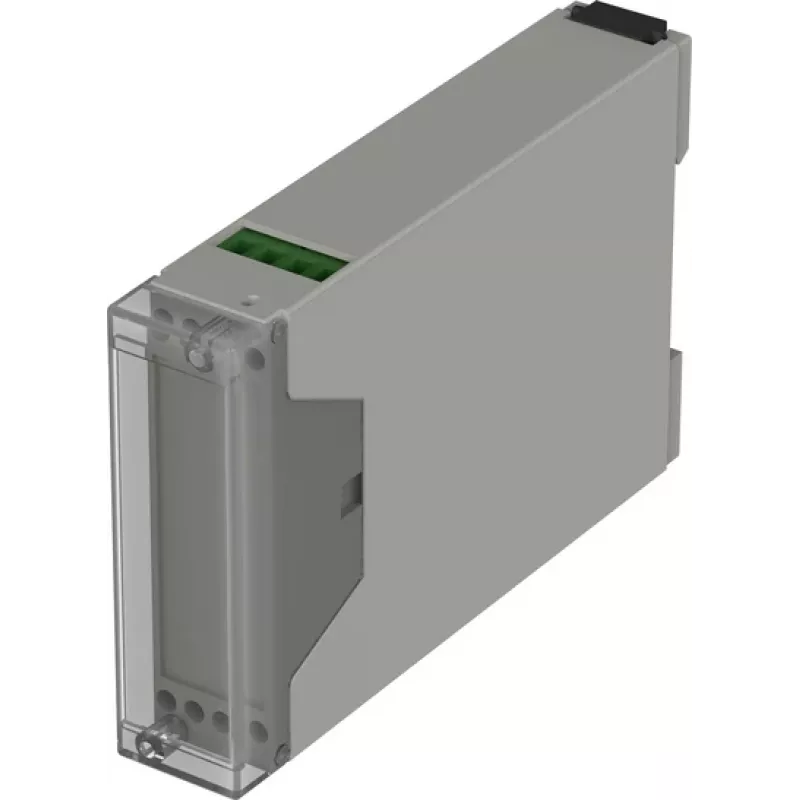

Bopla CN 22 AK-SET DIN-rail behuizing 22,5 x 75 x 109,5 mm ABS lichtgrijs RAL 7035 65002210.HMT1

DIN rail electronics often end up in cramped, mixed-vendor cabinets where every millimetre counts. The Bopla CN 22 AK-SET solves that with a compact, modular ABS housing that snaps onto standard EN 60715 rails and keeps your PCB and terminal blocks tidy and protected.

Who is it for

Panel builders, automation engineers and machine OEMs who need a reliable, repeatable enclosure for small DIN rail devices such as relays, signal conditioners, IoT nodes or custom interface modules.

Main features

• Modular design with base, cover and side elements for easy assembly and PCB mounting.
• Light grey ABS body in RAL 7035 blends into standard industrial cabinets.
• 22.5 mm pitch width matches common DIN rail module spacing.
• UL 94 V-0 flammability rating for safer integration into electrical systems.
• Halogen-free and RoHS compliant.

Specifications

• Enclosure type: DIN rail enclosure
• Series: CN 22
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External width: 22.5 mm
• External height: 75 mm
• External depth: 109.5 mm
• Mounting type: DIN rail (EN 60715)
• Protection class: IP20
• Flammability rating: UL 94 V-0
• Operating temperature range: -20 °C to +80 °C
• Halogen-free: Yes
• RoHS compliant: Yes

Tips

Pair with standard 35 mm DIN rail and terminal blocks up to 2.5 mm². The 22.5 mm width allows dense packing in control panels; leave a small air gap if the enclosure will be used near the upper temperature limit.
