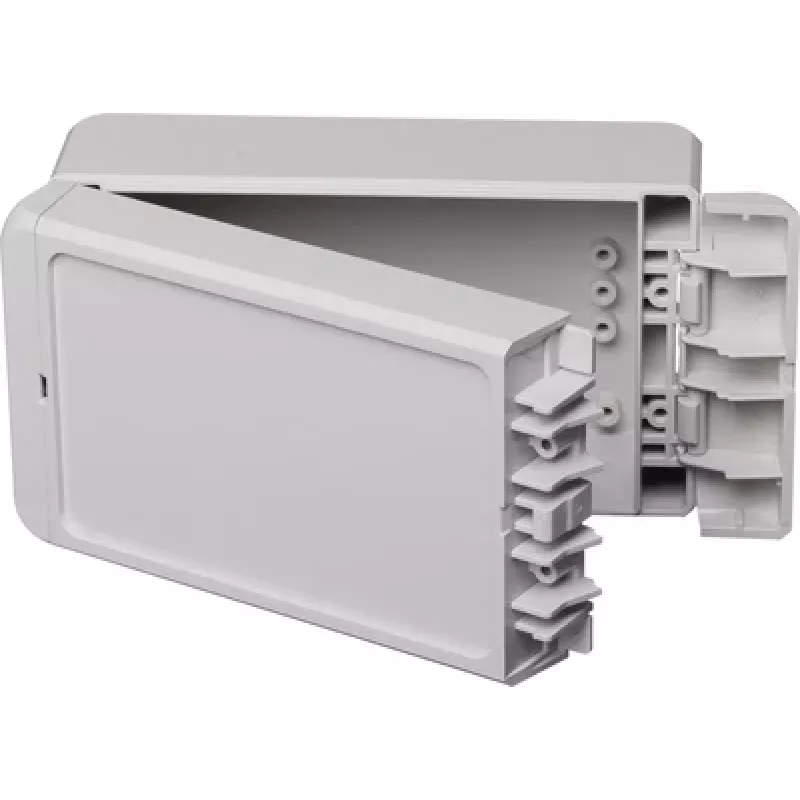

BOPLA CombiNorm-Compact wandbehuizing, ABS, lichtgrijs RAL 7035, 151 x 80 x 60 mm, IP65 96033125

The BOPLA CombiNorm-Compact wall-mount enclosure stands out with its light grey RAL 7035 finish and robust ABS construction, offering a clean, professional look for housing electronics in industrial and building installations. Its compact 151 x 80 x 60 mm footprint fits neatly in tight spaces while providing ample room for PCBs and small components.

Highlights

• Wall-mount design with integrated screw channels for secure installation
• Solid lid fastened by four stainless steel screws for reliable closure
• Integrated mounting bosses inside for direct PCB or mounting plate attachment
• Polyurethane foam gasket ensures a tight seal against dust and moisture
• Halogen-free ABS material with UL 94 V-0 flammability rating

In daily use

This enclosure is ideal for electrical and control applications where protection and accessibility matter. The screw-on lid allows quick access during wiring or maintenance, while the light grey colour blends with standard switchgear and wall surfaces. It operates reliably in temperatures from -40°C to +80°C, suiting both indoor and sheltered outdoor environments.

Full specifications

• Brand: BOPLA
• Model: 96033125
• MPN: 96033125
• EAN: 4049505038442
• Series: CombiNorm-Compact
• Enclosure type: Wall-mount enclosure
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External dimensions (W x H x D): 151 x 80 x 60 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Operating temperature range: -40°C to +80°C
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Mounting type: Wall mounting (via screw channels)
• Lid design: Solid
• Internal mounting: Integrated mounting bosses for PCBs/mounting plates
• Halogen-free: Yes
• RoHS compliant: Yes

Final note

With its IP65 rating and durable ABS build, this BOPLA enclosure provides dependable protection for your electronic assemblies in demanding environments.
