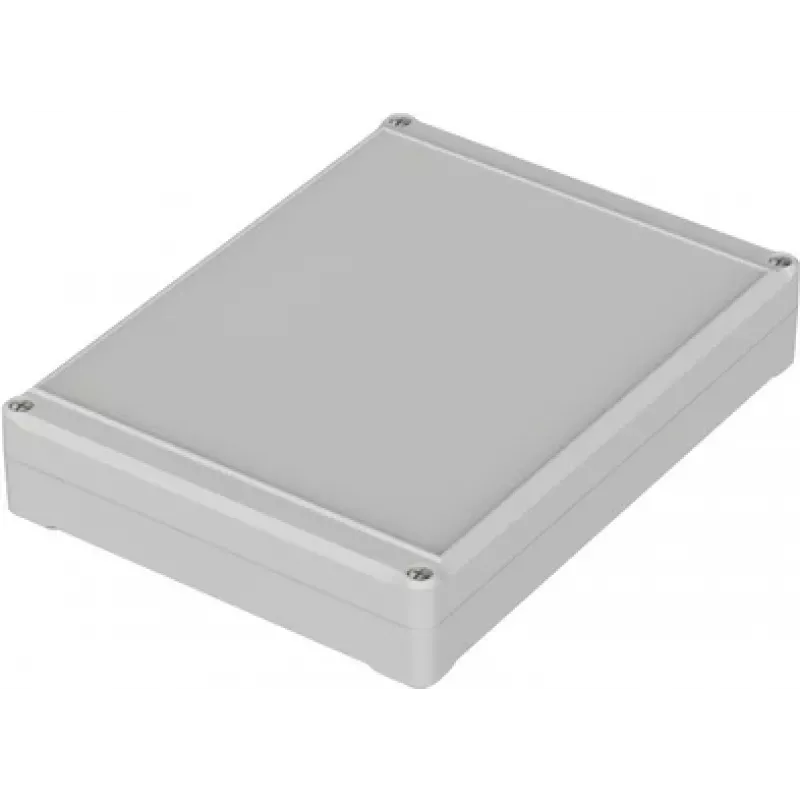

Bopla EUROMAS ET 232F universele behuizing 200 x 150 x 37 mm ABS lichtgrijs 63232200

Universal enclosure with dimensions 200 x 150 x 37 mm, made of light grey ABS (RAL 7035) for reliable protection of electronics in industrial and outdoor applications.

Advantages

Durable ABS housing with UL 94 V-0 flammability rating and IK07 impact resistance. IP65 protection against dust and water jets. Operating temperature range from -40 to +80 °C. Lid secured with four stainless steel screws and sealed with a polyurethane foam gasket.

Suitable for

• Electrical and electronic installations
• Control systems and measurement equipment
• Industrial automation
• Outdoor and harsh environments

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• Protection class: IP65
• Flammability rating: UL 94 V-0
• Impact resistance: IK07
• Operating temperature: -40 to +80 °C
• Lid fastening: 4x stainless steel screws 1.4567
• Gasket: Polyurethane (PU) foam
• Internal mounting bosses for M3 self-tapping screws
• Series: EUROMAS ET
• Type: Universal enclosure
• Mounting type: Surface mount
• RoHS compliant
• Halogen-free
• Lid type: Solid

Recommendations

Ideal for protecting sensitive electronics in demanding environments due to its robust construction and high protection ratings.
