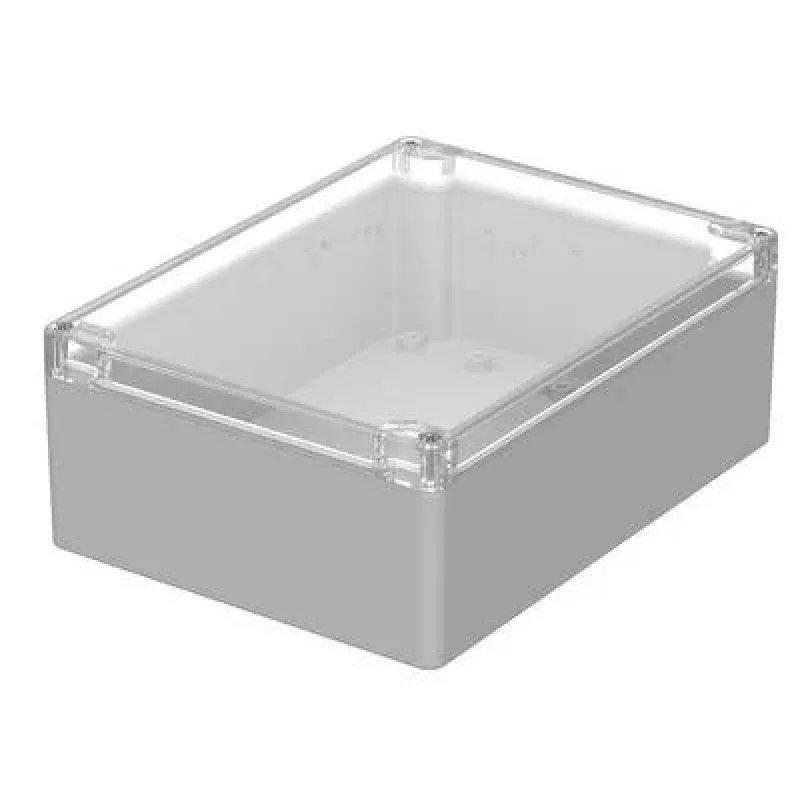

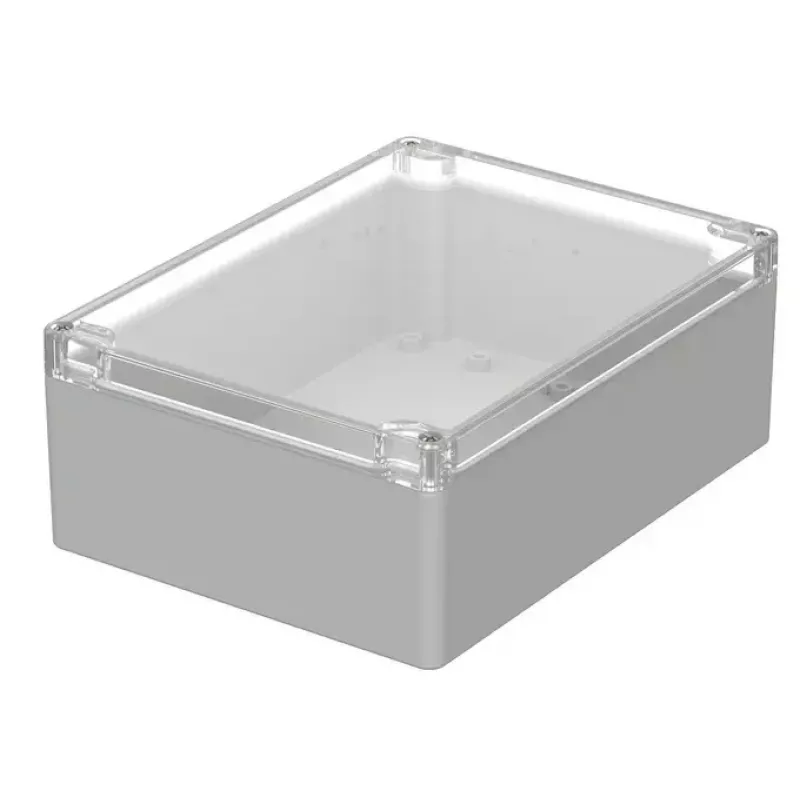

Bopla EUROMAS M 223 G universele behuizing 200 x 150 x 75 mm, polycarbonaat, lichtgrijs 02223100

Electronic components need a robust housing that protects them from dust, moisture and mechanical impact while remaining easy to access for maintenance. The Bopla EUROMAS M 223 G universal enclosure provides a secure, light grey polycarbonate shell for industrial and outdoor electronics, sensors and control modules.

Who is it for

This enclosure is intended for system integrators, panel builders and OEMs who require a durable, IP65-rated housing for electronics in harsh environments. It suits applications such as machine controls, measurement equipment, IoT gateways and junction boxes where protection and reliability are critical.

Main features

• External dimensions: 200 mm length, 150 mm width, 75 mm height
• Material: polycarbonate (PC), light grey (RAL 7035)
• Protection class IP65 and impact resistance IK07
• Flammability rating UL 94 V-2, halogen-free
• Operating temperature range: -40°C to +80°C
• Lid secured with stainless steel screws and polyurethane gasket
• Wall mounting and internal mounting bosses for easy installation

Specifications

• Product type: Universal enclosure
• Series: EUROMAS M
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions (L x W x H): 200 x 150 x 75 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Operating temperature: -40°C to +80°C
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PUR)
• Mounting options: Wall mounting, internal mounting bosses
• Transparency: Opaque
• Halogen-free: Yes
• RoHS compliant: Yes

Tips

When selecting an enclosure, verify that the internal dimensions accommodate your PCB and wiring. The IP65 rating makes it suitable for washdown areas, but avoid prolonged UV exposure unless the polycarbonate is UV-stabilised. Use the internal bosses to mount PCBs without drilling through the enclosure wall.
