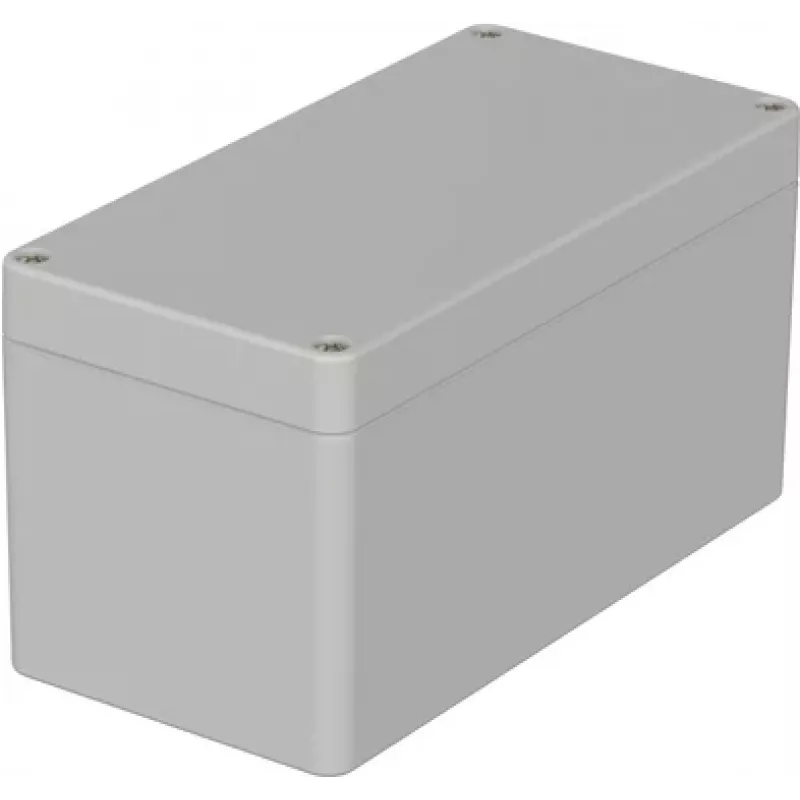

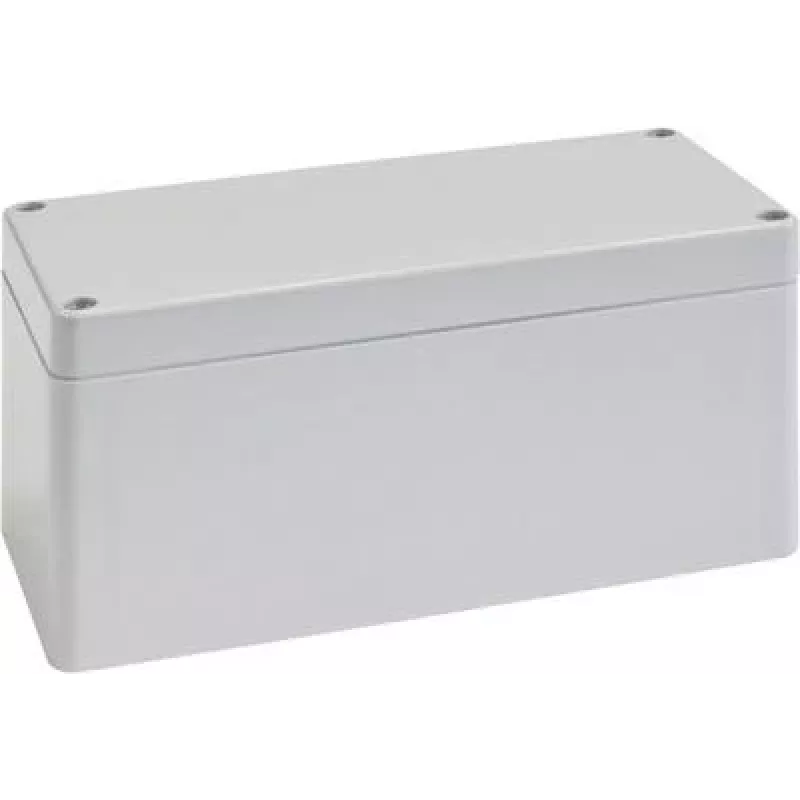

Bopla EUROMAS M 231 universele behuizing 160 x 80 x 85 mm polycarbonaat lichtgrijs 02231000

Featuring an IP65 protection rating, the Bopla EUROMAS M 231 universal enclosure safeguards electronics in demanding environments. Its polycarbonate construction delivers impact resistance and UV stability, while the light grey RAL 7035 finish suits industrial applications.

Overview

The Bopla EUROMAS M 231 is a robust universal enclosure designed for housing electrical and electronic components. With external dimensions of 160 x 80 x 85 mm and internal usable space of 152 x 72 x 78 mm, it accommodates a variety of control and interface modules. The enclosure is made of polycarbonate, offering high impact resistance (IK07) and a wide operating temperature range from -40 °C to +80 °C. The lid is secured with four stainless steel screws and includes a polyurethane gasket to maintain the IP65 seal against dust and water jets.

What stands out

• IP65 protection against dust and water jets
• Polycarbonate material with IK07 impact resistance
• UV resistant and suitable for outdoor use
• Wide operating temperature range: -40 °C to +80 °C
• Light grey RAL 7035 colour for a clean industrial look
• Secure lid fastening with four stainless steel screws
• Polyurethane gasket for reliable sealing

Technical details

• External dimensions: 160 x 80 x 85 mm
• Internal dimensions: 152 x 72 x 78 mm
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• Protection class: IP65 (EN 60529)
• Impact resistance: IK07 (EN 62262)
• Flammability rating: UL 94 V-2
• Operating temperature: -40 °C to +80 °C
• Lid fastening: 4x stainless steel screws (1.4567)
• Gasket material: Polyurethane (PUR)
• Wall thickness: approx. 3 mm
• UV resistance: Yes
• Chemical resistance: Good against oils, greases, alcohols, weak acids
• RoHS compliant: Yes
• Halogen-free: Yes
• Mounting options: Wall mounting, DIN rail mounting (with accessories)
• Lid type: Solid

Our verdict

The Bopla EUROMAS M 231 is a reliable choice for industrial electronics needing robust protection. Its polycarbonate build, IP65 sealing, and wide temperature tolerance ensure dependable performance in harsh conditions.
