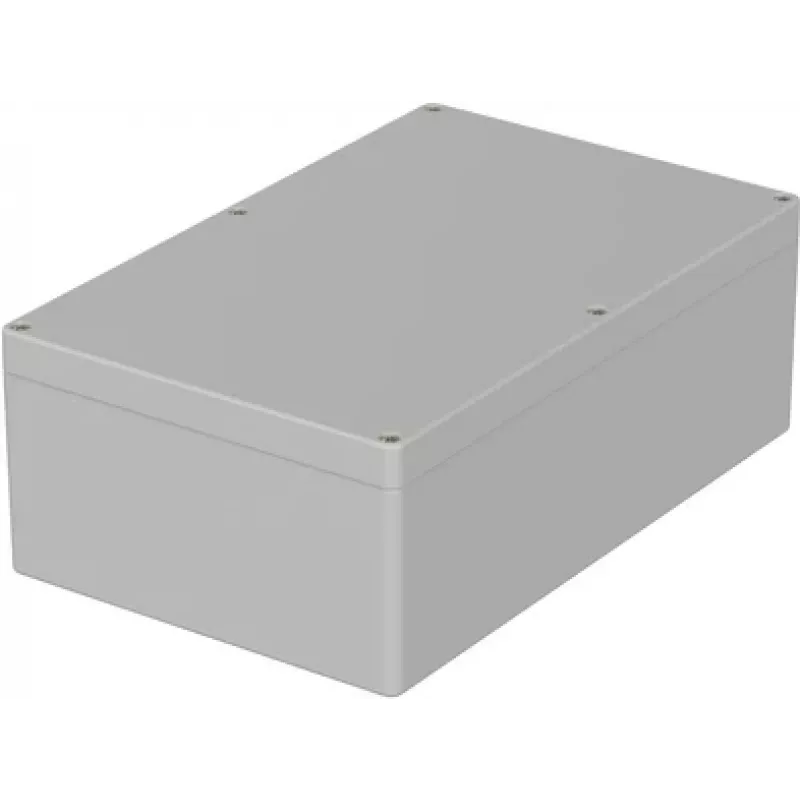

Bopla EUROMAS M 240 universele behuizing 250 x 160 x 90 mm polycarbonaat lichtgrijs 02240000

In industrial control panels and outdoor installations, the Bopla EUROMAS M 240 provides a robust housing for electronics that must withstand dust, water jets, and mechanical impact. This enclosure is made of light grey polycarbonate (RAL 7035) and measures 250 x 160 x 90 mm externally, with an internal space of approximately 238 x 148 x 80 mm for mounting plates or PCBs.

Key specifications

• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External dimensions: 250 x 160 x 90 mm
• Internal dimensions: 238 x 148 x 80 mm
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-2
• Operating temperature: -40 °C to +100 °C
• Lid fastening: 4 stainless steel screws
• Gasket material: Polyurethane (PU)
• Mounting: Wall mounting possible, internal screw bosses
• UV resistance: Good
• Chemical resistance: Good against oils, greases, alcohols, weak acids
• RoHS compliant: Yes
• Halogen-free: Yes
• Transparency: Opaque

Why choose it

The EUROMAS series offers a reliable seal against environmental factors, making it suitable for both indoor and outdoor use. The polycarbonate body is impact-resistant and provides good UV and chemical resistance, ensuring long-term durability.

Ideal use cases

• Industrial control units
• Outdoor electrical installations
• Junction boxes in harsh environments
• Custom electronics projects requiring IP65 protection

Good to know

The enclosure is opaque and halogen-free, with a polyurethane gasket ensuring a tight seal. Four stainless steel screws secure the lid, and internal screw bosses allow for easy mounting of components.
