Bopla EUROMAS P 311 universele behuizing 110 x 75 x 55 mm polyester zilvergrijs RAL 7001 04311000.H

With an impact resistance of IK08 and an operating temperature range from -40 °C to +100 °C, this polyester enclosure is built for demanding industrial environments.

Overview

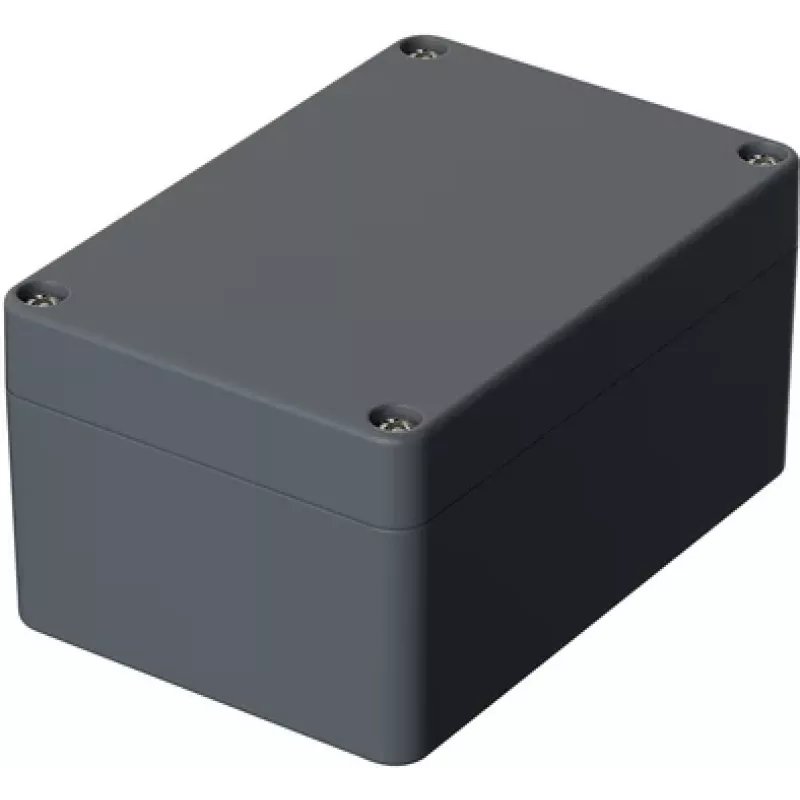

The Bopla EUROMAS P 311 is a universal enclosure with external dimensions of 110 x 75 x 55 mm. The housing is made of polyester in silver-grey (RAL 7001) and features a polyurethane (PUR) seal for reliable protection against dust and water (IP65). The lid is secured with stainless steel screws, and integrated mounting bosses allow easy installation of PCBs or mounting plates.

What stands out

• High impact resistance (IK08) and wide temperature range for harsh conditions
• UV-resistant polyester material with flammability rating UL 94 V-0
• Integrated mounting bosses simplify internal assembly
• Stainless steel lid screws ensure corrosion resistance

Technical details

• External dimensions: 110 x 75 x 55 mm
• Material: Polyester, silver-grey (RAL 7001)
• Protection class: IP65
• Impact resistance: IK08
• Operating temperature: -40 °C to +100 °C
• Flammability rating: UL 94 V-0
• Seal material: Polyurethane (PUR)
• Lid fastening: Stainless steel screws

Our verdict

A robust and versatile enclosure for industrial electronics, offering reliable protection and easy installation.
