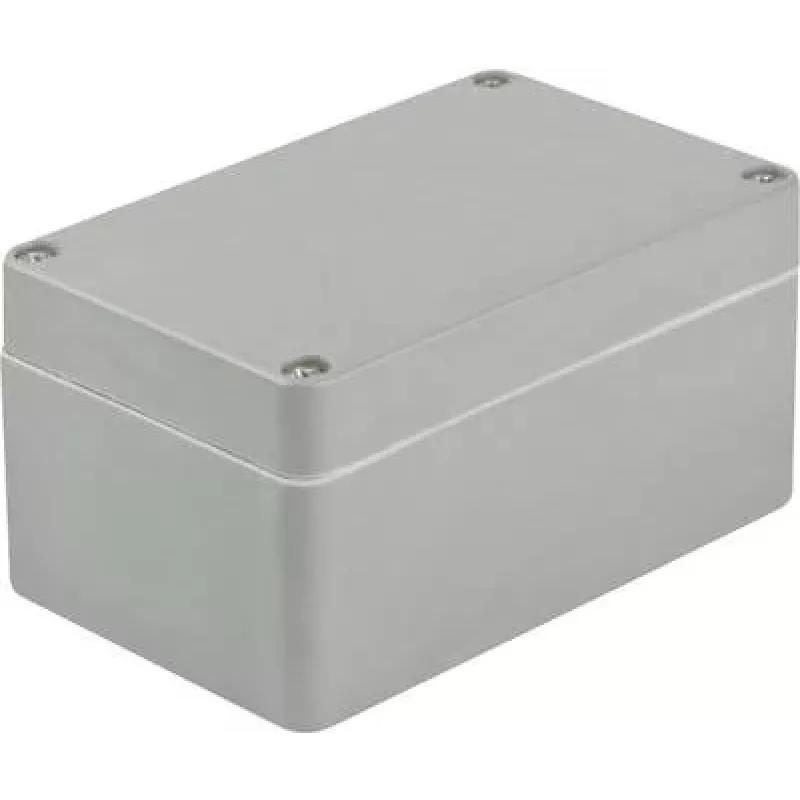

Bopla EUROMAS P 324 universele behuizing 110 x 75 x 75,5 mm polyester zilvergrijs RAL 7001 04324000.H

Universal enclosure made of polyester, silver-grey (RAL 7001), dimensions 110 x 75 x 75.5 mm. Its robust construction and IP65 protection make it suitable for housing industrial electronics and control systems in demanding environments.

Advantages

Polyester housing with high impact resistance (IK08) and flame retardancy (UL 94 V-0). The enclosure is halogen-free and RoHS compliant, with an operating temperature range from -40 °C to +80 °C. The lid is secured with four stainless steel screws and sealed with a polyurethane foam gasket.

Suitable for

• Industrial electronics
• Control systems
• Measurement technology

Key specifications

• Material: Polyester
• Color: Silver-grey (RAL 7001)
• External dimensions: 110 x 75 x 75.5 mm
• Protection class: IP65
• Impact resistance: IK08
• Flammability rating: UL 94 V-0
• Operating temperature: -40 °C to +80 °C
• Gasket material: Polyurethane foam
• Lid fasteners: Stainless steel screws (4 pieces)
• Mounting options: Internal mounting bosses for DIN rails or mounting plates
• Halogen-free: Yes
• RoHS compliance: Yes

Recommendations

Ideal for applications requiring a durable, weather-resistant enclosure with reliable sealing and easy installation of internal components.
