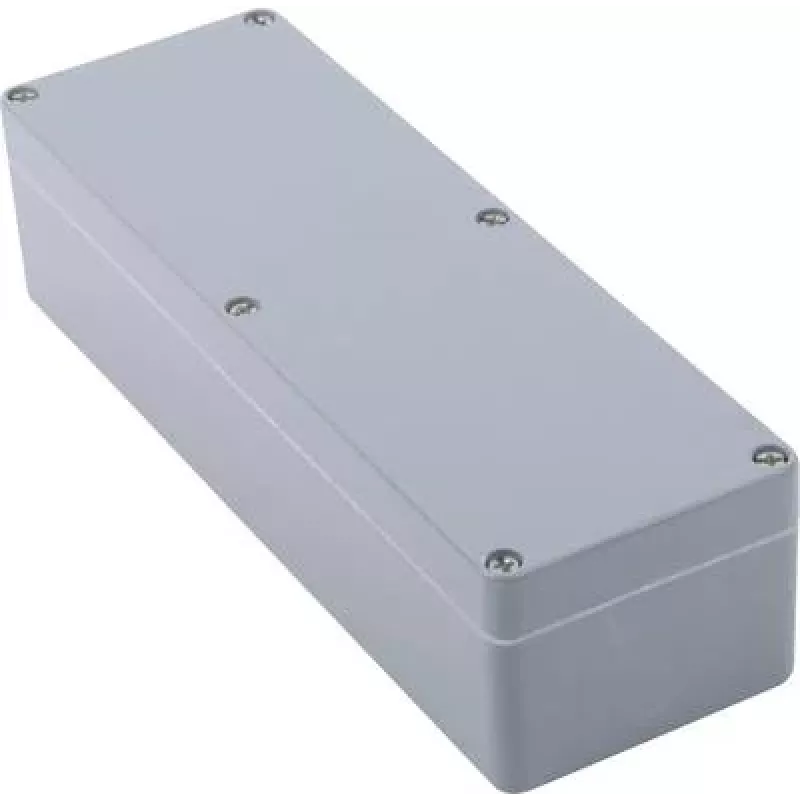

Bopla EUROMAS P universele behuizing 230 x 75 x 56,5 mm polyester zilvergrijs RAL 7001 04322000.H

Universal enclosure from the EUROMAS P series, crafted from polyester in silver-grey (RAL 7001), offering robust protection for electrical and electronic components in industrial environments.

Advantages

The polyester housing provides excellent chemical resistance to oils, greases, acids, and alkalis, along with good UV resistance. It is halogen-free and RoHS compliant. The enclosure features a polyurethane gasket and stainless steel lid screws for secure sealing.

Suitable for

• Industrial control systems
• Junction boxes
• Electrical installations requiring durable protection
• Outdoor applications with UV exposure

Key specifications

• External dimensions: 230 mm length, 75 mm width, 56.5 mm height
• Material: Polyester
• Colour: Silver-grey (RAL 7001)
• Protection class: IP65
• Impact resistance: IK08
• Operating temperature: -40 to +100 °C
• Flammability rating: UL 94 V-0
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PUR)
• Mounting: Internal bosses for DIN rails or mounting plates

Recommendations

Ideal for demanding environments where chemical resistance and UV stability are required. The IP65 rating ensures protection against dust and water jets.
