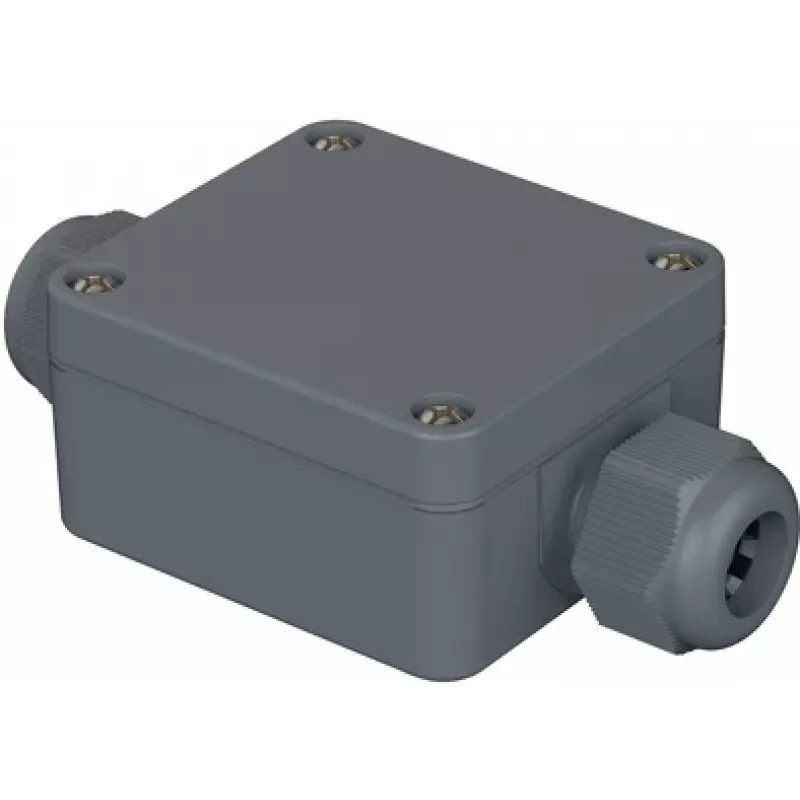

Bopla PK 101-211 universele behuizing, 58 x 64 x 34 mm, polyamide, zilvergrijs RAL 7001 38101200.MT2

Ideal for housing electronics in industrial control panels, junction boxes, or wall-mounted equipment, this Bopla PK series enclosure provides a robust, IP65-rated protective shell. Its silver grey polyamide body blends durability with a clean, professional look, making it suitable for both indoor and outdoor applications.

Key specifications

• External dimensions: 58 mm width x 64 mm length x 34 mm height
• Material: Polyamide (PA)
• Colour: Silver grey (RAL 7001)
• Protection class: IP65
• Impact resistance: IK07
• Lid fastening: 4x stainless steel screws
• Gasket material: Polyurethane (PU) foam
• Operating temperature range: -40 °C to +80 °C
• Flammability rating: UL 94 V-2
• Internal mounting: Integrated mounting bosses for PCBs/DIN rails

Why choose it

The enclosure's polyamide construction offers excellent chemical resistance and mechanical strength, while the PU foam gasket ensures a reliable seal against dust and water. Integrated mounting bosses simplify installation of PCBs or DIN rail components, saving time during assembly.

Ideal use cases

• Industrial sensor housings
• Control electronics for machinery
• Outdoor electrical junction boxes
• Custom device enclosures for harsh environments

Good to know

This enclosure is part of the Bopla PK series, known for its modular design and wide range of accessories. The silver grey colour (RAL 7001) provides a neutral, professional appearance suitable for various applications.
