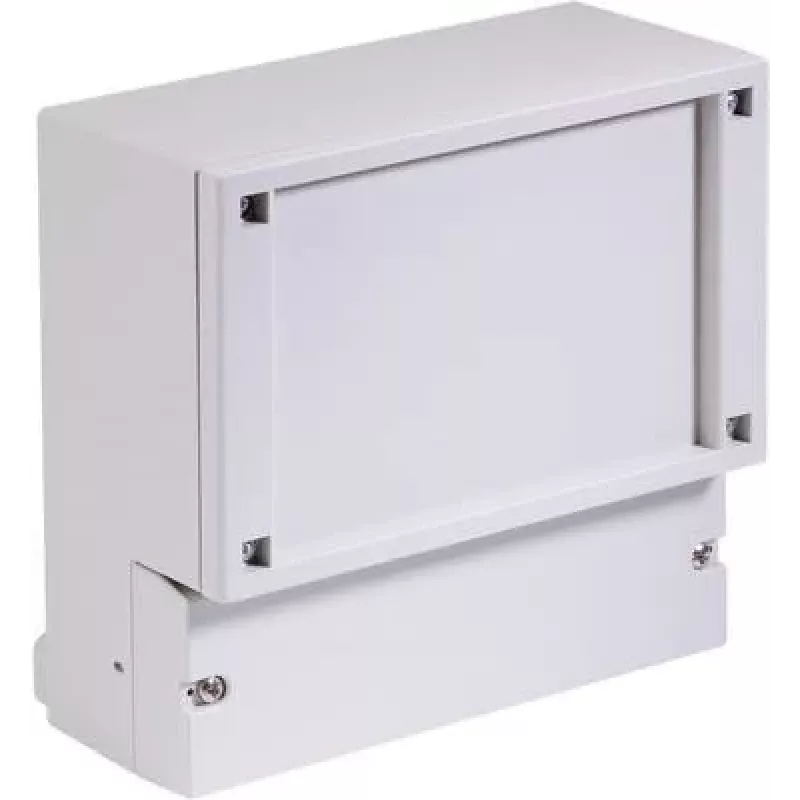

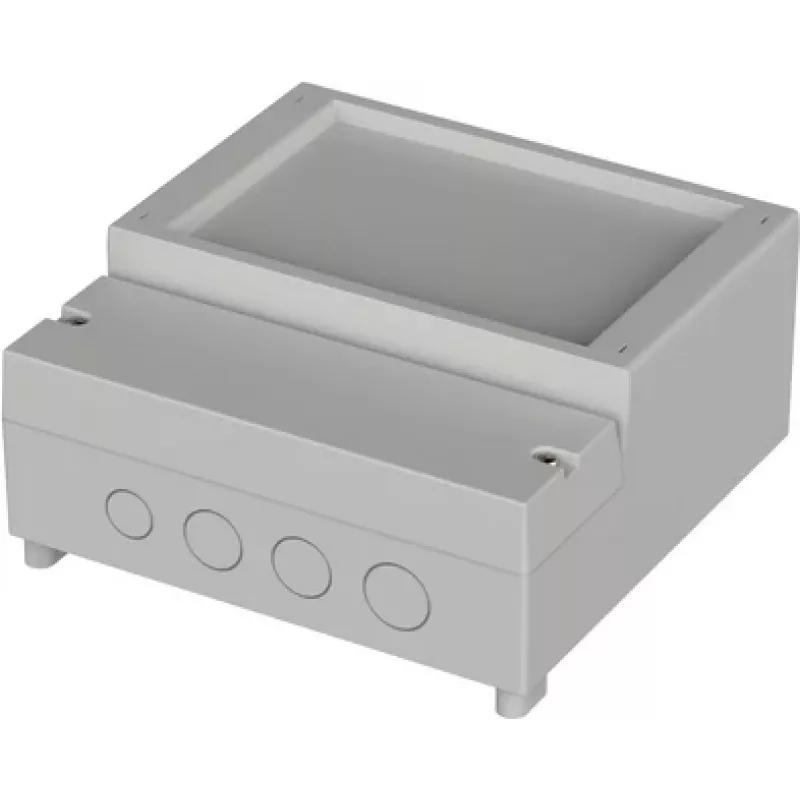

Bopla RCP 160 F stuurbehuizing 166 x 161 x 72,5 mm ABS lichtgrijs 41160609

With a compact footprint of 166 x 161 x 72.5 mm and a light grey ABS construction, the Bopla RCP 160 F control enclosure is built for reliable housing of control units and measurement devices.

Overview

The RCP 160 F is a two-part enclosure consisting of a base and a lid, secured with screws. Its ergonomic, sloped front design provides comfortable operation, while the recessed front panel is suitable for membrane keypads or displays. Integrated PCB mounting bosses simplify assembly.

What stands out

• Light grey ABS housing with RAL 7035 colour code
• Recessed front panel for keypads or displays
• PCB mounting bosses for easy installation
• Sloped front for ergonomic use
• Suitable for desktop use; wall mounting possible with optional accessories

Technical details

• External dimensions: 166 mm (L) x 161 mm (W) x 72.5 mm (H)
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• Protection class: IP40
• Operating temperature range: -20 °C to +80 °C
• Flammability rating: UL 94 HB
• Lid fastening: Screws
• Number of enclosure parts: 2 (base, lid)

Our verdict

A practical and robust enclosure for control applications, offering a clean design and convenient mounting features.
