Bopla RCP 170 F besturingsbehuizing 166 x 161 x 109,5 mm ABS lichtgrijs 41170609

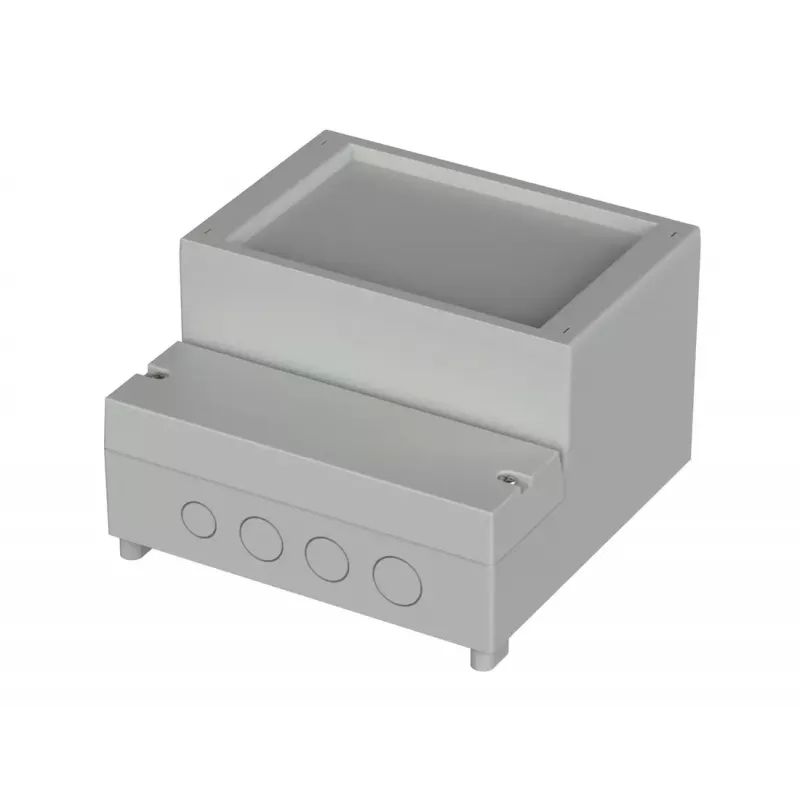

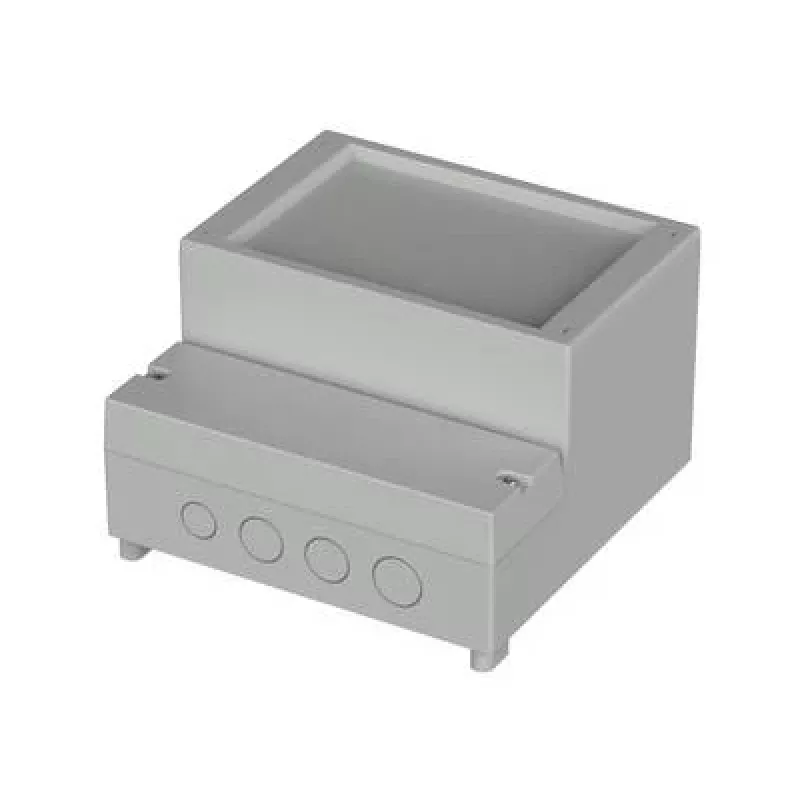

This Bopla controller enclosure offers a sloped front panel for ergonomic operation, with external dimensions of 166 mm length, 161 mm width, and 109.5 mm height. Constructed from ABS in light grey (RAL 7035), it provides a smooth surface finish and screw-on lid fastening. Integrated bosses allow direct PCB mounting, making it suitable for desktop applications.

Overview

The RCP 170 F is a desktop enclosure designed for control and instrumentation. Its sloped front improves visibility and access to controls. The ABS material provides a balance of impact resistance and surface quality, while the light grey colour suits industrial and laboratory environments.

What stands out

• Sloped front panel for ergonomic operation
• Integrated bosses for PCB mounting
• ABS material with smooth surface finish
• Light grey colour (RAL 7035)
• Screw-on lid for secure closure

Technical details

• External length: 166 mm
• External width: 161 mm
• External height: 109.5 mm
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• Flammability rating: UL 94 HB
• Operating temperature range: -20°C to +80°C
• Protection class: IP40 (IEC 60529)
• Mounting type: Freestanding / Desktop
• Included components: Top part, bottom part, 4 assembly screws

Our verdict

A practical enclosure for desktop control units, with a sloped panel and easy PCB mounting. Its ABS construction and light grey finish make it a solid choice for many applications.
