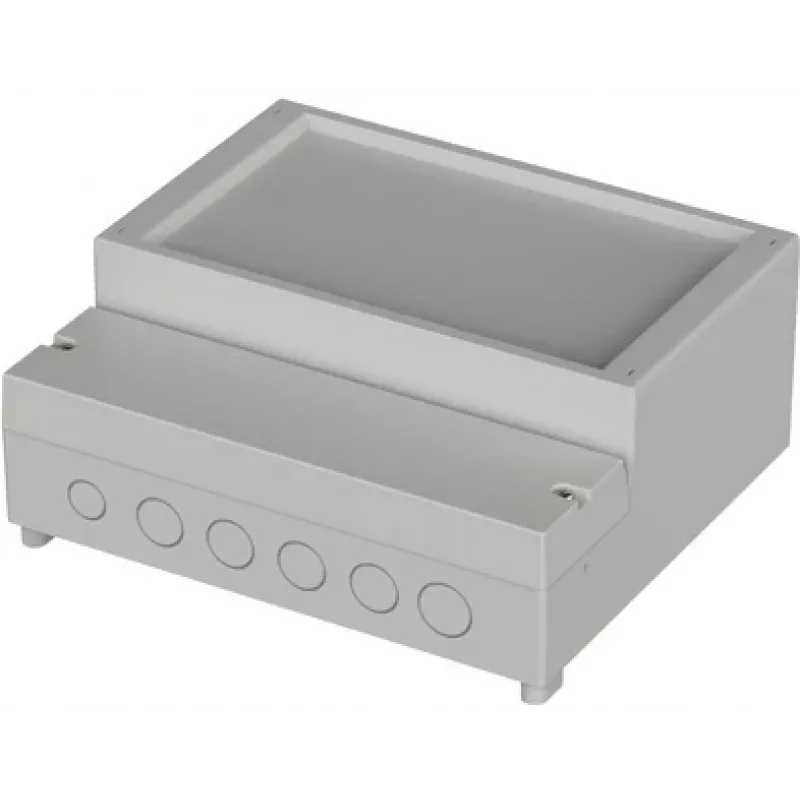

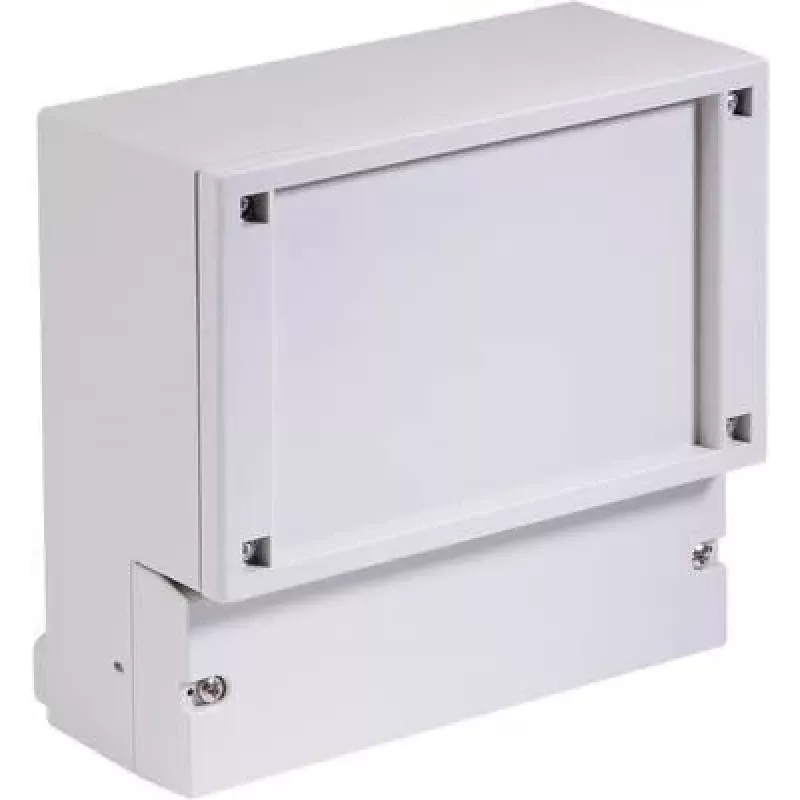

Bopla RCP 200 F controllerbehuizing 213 x 185 x 84 mm ABS lichtgrijs 41200609

In industrial automation and control systems, a reliable enclosure is essential for protecting sensitive electronics. The Bopla RCP 200 F controller enclosure provides a robust housing for your control units, measurement devices, and desktop equipment. Its light grey ABS construction offers a clean, professional appearance suitable for a wide range of applications.

Key specifications

• External dimensions: 213 mm (L) x 185 mm (W) x 84 mm (H)
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey
• Enclosure type: Controller enclosure
• Protection class: IP40
• Operating temperature range: -40 °C to +80 °C
• Flammability rating: UL 94 HB
• Mounting options: Desktop, wall mounting
• Lid fastening: Screws
• Recessed area for membrane keypads or displays
• Internal mounting bosses for PCBs

Why choose it

The RCP 200 F is designed with practicality in mind. Its recessed lid area allows for the integration of membrane keypads or displays, while internal mounting bosses simplify PCB installation. The ABS material provides a good balance of impact resistance and surface finish, making it suitable for both prototyping and production.

Ideal use cases

• Control systems
• Measurement technology
• Automation equipment
• Desktop devices

Good to know

The enclosure consists of a base and a lid, secured with screws. It is RoHS compliant and offers a smooth surface finish. With an IP40 rating, it provides protection against solid objects larger than 1 mm but is not waterproof, so it is best suited for indoor environments.
