Bopla universele behuizing 100 x 100 x 81 mm aluminium zilvergrijs (RAL 7001) A 116 01116000.H

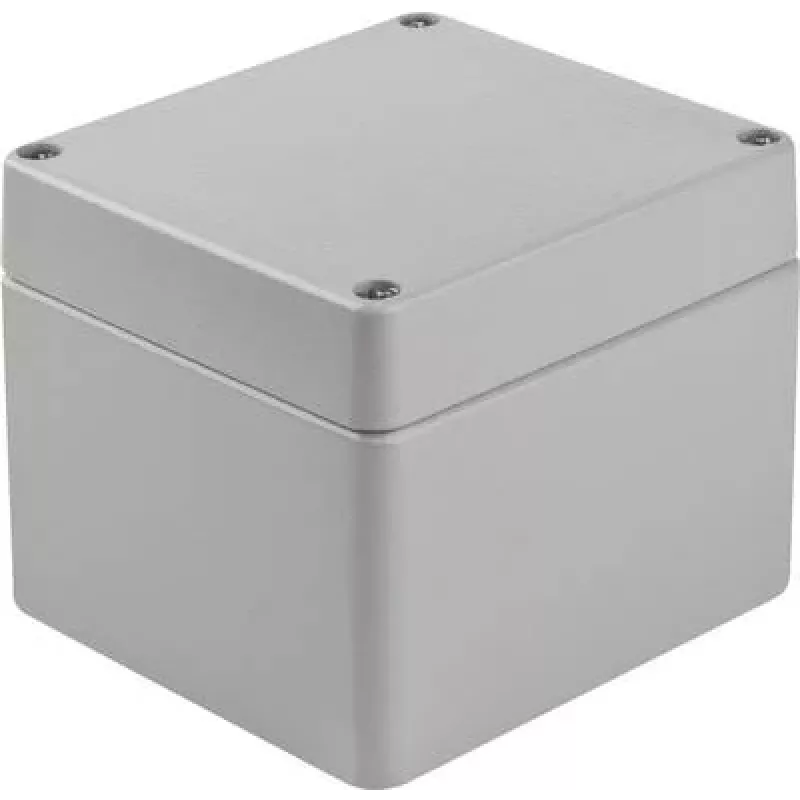

This Bopla universal enclosure stands out with its robust aluminium construction and precise 100 x 100 x 81 mm dimensions, offering reliable protection for electronic and electrical components in industrial environments. The silver-grey finish (RAL 7001) provides a professional appearance while ensuring corrosion resistance.

Highlights

• Material: Aluminium
• Colour: Silver-Grey (RAL 7001)
• External dimensions: 100 mm (L) x 100 mm (W) x 81 mm (H)
• Protection class: IP66
• Lid fastening: Stainless steel screws
• Gasket material: Neoprene
• Operating temperature range: -40°C to +100°C
• Mounting type: Surface mount
• EMC shielding: Yes (inherent with aluminium)
• Series: Bopla A Series

In daily use

Designed for surface mounting, this enclosure simplifies installation in control panels, machinery, or outdoor applications where protection against dust and water is required. The neoprene gasket and stainless steel screws ensure a secure seal, maintaining the IP66 rating even in demanding conditions.

Full specifications

• Enclosure type: Universal enclosure
• Corrosion resistance: Yes
• Application: Industrial, electronic, electrical installations

Final note

A reliable choice for housing sensitive electronics, combining durability, shielding, and a clean industrial look.
