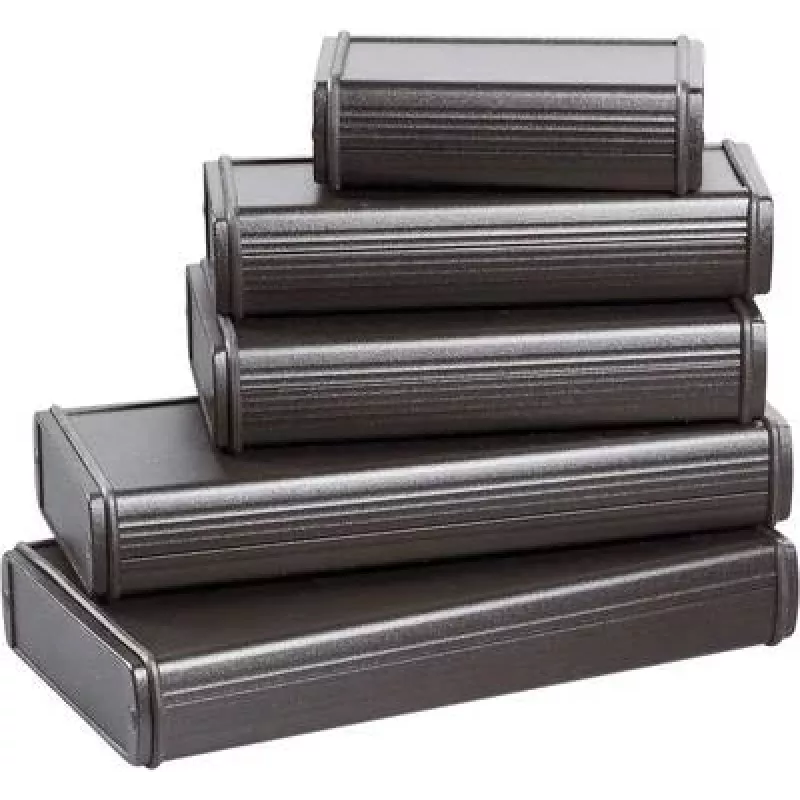

Bopla universele behuizing 100 x 196 x 82 aluminium zwart ABPH 1680-100 84686100.H

For industrial control panels, automation systems, or electronic assemblies that need a robust housing, the Bopla ABPH 1680-100 universal enclosure offers a solid aluminium body with a black powder-coated finish. The external dimensions are 100 mm wide, 196 mm long, and 82 mm high, providing ample space for PCBs and components. A neoprene gasket and stainless steel lid screws ensure a secure seal, while the enclosure withstands impacts up to IK08 and operates from -40°C to +100°C.

Key specifications

• Material: Aluminium
• Colour: Black (RAL 9005)
• External dimensions: 100 x 196 x 82 mm
• Protection class: IP65
• Impact resistance: IK08
• Operating temperature: -40°C to +100°C
• Lid fastening: Stainless steel screws (4 pieces)
• Gasket material: Neoprene
• Surface finish: Powder-coated
• Internal mounting: Mounting bosses for PCBs/components
• Series: ABPH

Why choose it

This enclosure combines a lightweight aluminium construction with high durability. The IP65 rating protects against dust and water jets, making it suitable for demanding environments. The neoprene gasket ensures a reliable seal, while the stainless steel screws provide corrosion resistance. With a wall thickness of approximately 2.5 mm, it offers a sturdy housing for sensitive electronics.

Ideal use cases

• Industrial control units
• Automation and sensor housings
• Outdoor electronic equipment (when properly mounted)
• General-purpose electronic enclosures

Good to know

The enclosure includes mounting bosses for easy installation of PCBs and components. Wall mounting is possible via rear screw channels or optional mounting feet (not included). The powder-coated surface provides a durable, scratch-resistant finish.
